Description:
30 channel DMX decoder with XLR Dimmable LED Driver DC12-24V RGB LED Strip DMX 512 controller
Welcome to use the 30 channels constant decoder, which take advantage of advanced microelectronic
control technology. This technology changes the international fashion DMX512/1990 standard
digital control signals into analog control signals.There're 1 ~ 30 output channels; each channel
can achieve 256 control levels. This constant decoder is used when DMX512 control equipment
control general LED lighting.
Product specification:
1.Maximum load current: 2A×30CH
2.Maximum power load: 720W(12V) 1440W(24V)
3.Output gray level: 256
4.Input Signal: DMX512/1990
5.Output signal: 30 channels Constant PWM
6.Output DMX : 30 channels
7..Input power::DC9V-24V
8.Connecting mode: common anode

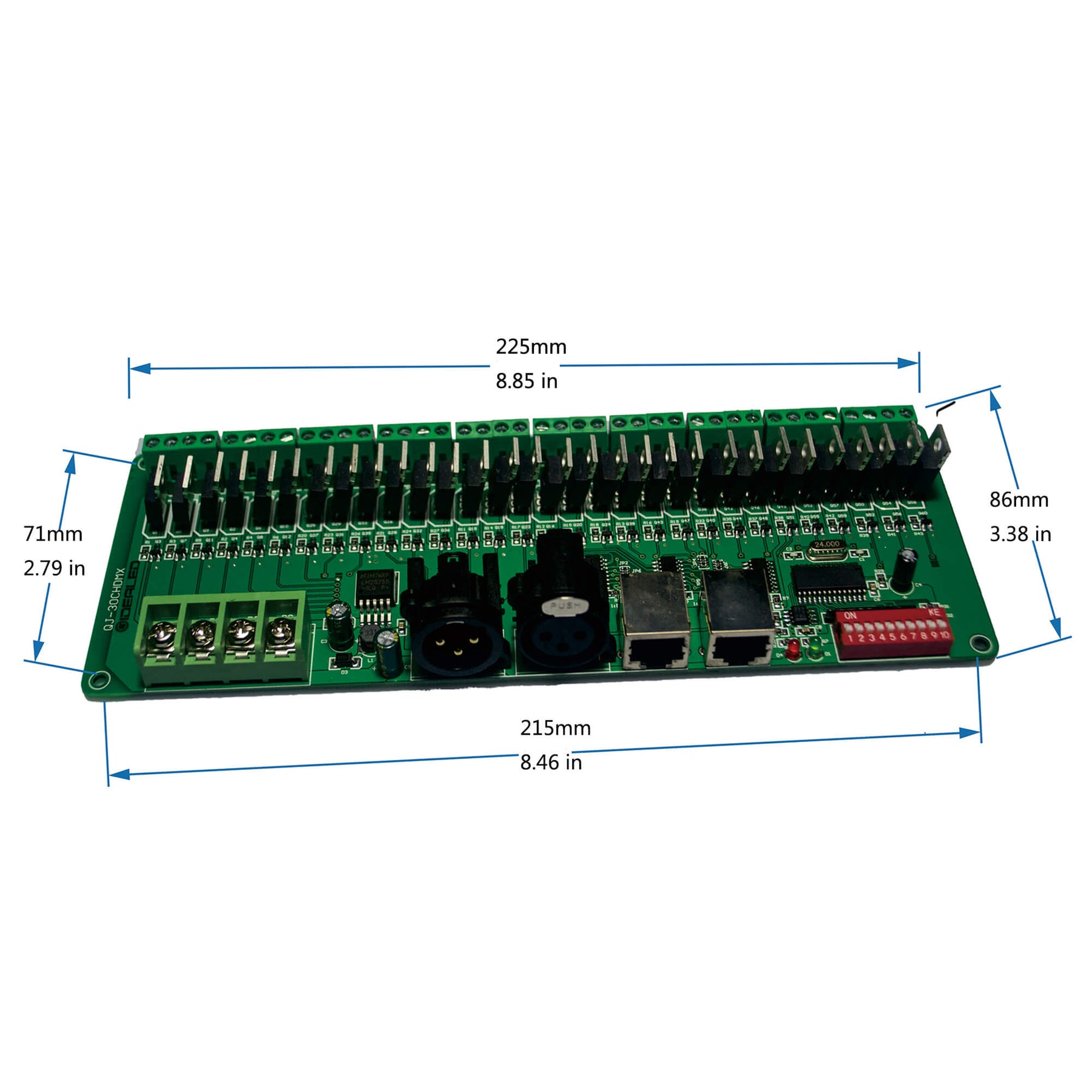

9..Cover Size:225*88*35mm
10..Packaging size:270*100*70mm
11.Net Weight:320g
12.Gross Weight:365g
13..DMX512 socket stand
