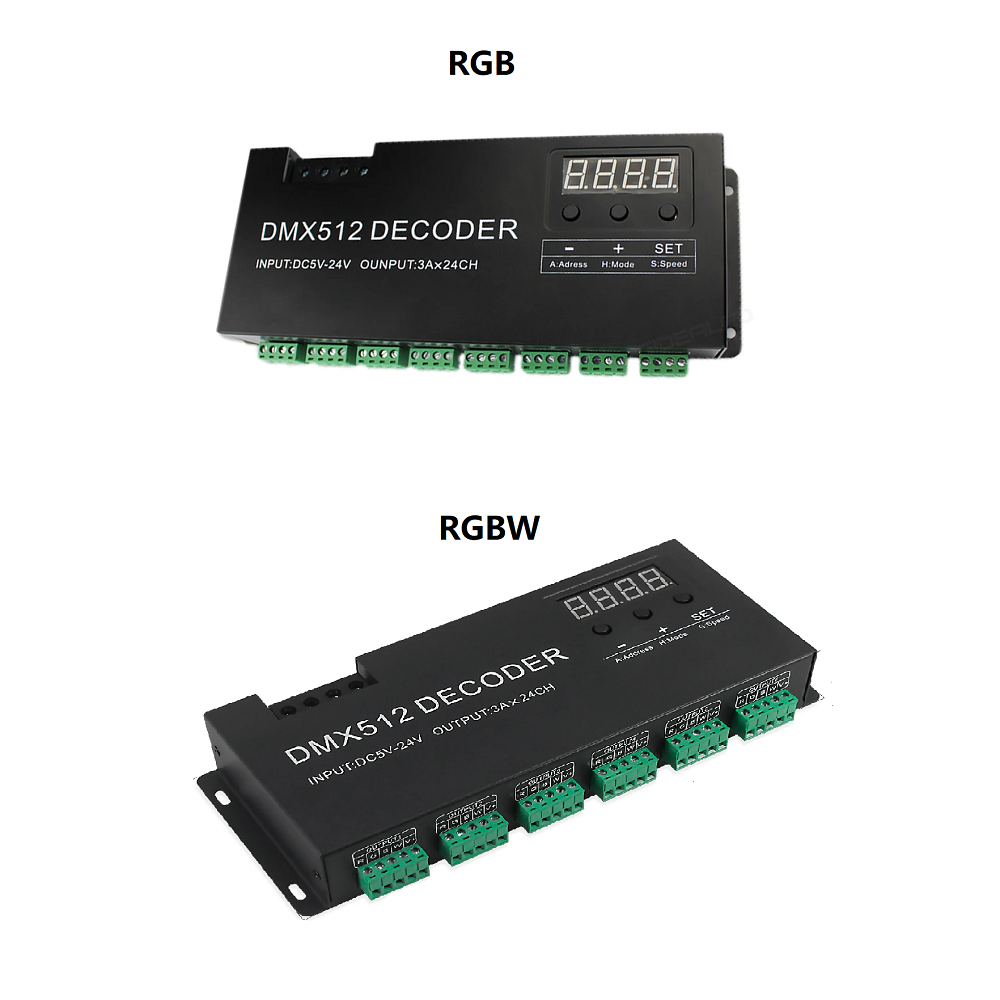

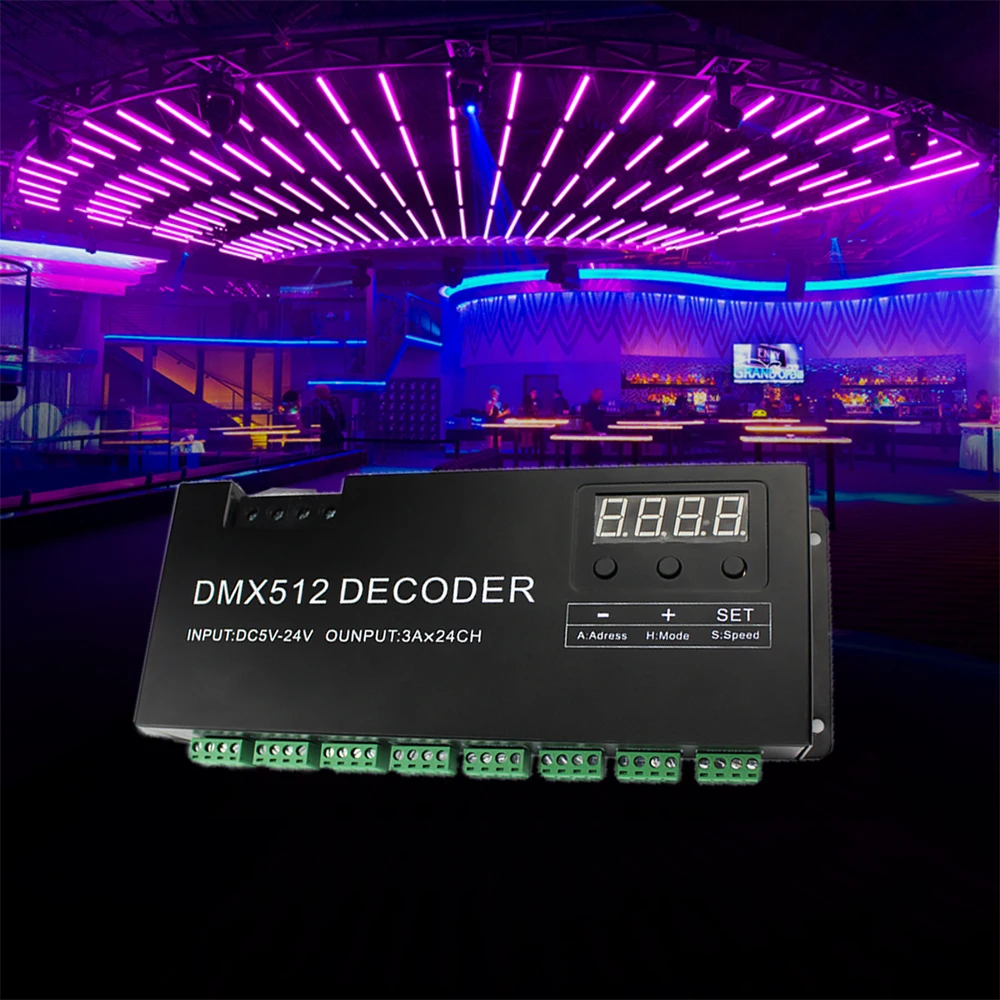

24CH DMX Decoder with Digital display for LED Lights
SF-24 channel RGB
24 channel RGB LED DMX 512 Decoder 24CH * 3 Dimmer PWM Driver DMX Decoder Led RGB Strip DMX512 With RJ45 Input DC5V-24V Decoder
Product Description:
1.This DMX decoder adopts advanced computer control chip,can receive the
international DMX -512 standard digital control signals and converted into PWM
controller signal to drive the LED.
2.It can be controlled by the DMX Console,and can connected with numbers of DMX
Decoder to increase the output power to realize all kinds of changing mode.
3.This DMX decoder can be used as the synchronous controller to controlled the LED
alone,it can realize the synchronous effects.
4.This decoder adopt the digital tube to show the address code,and with 3 buttons to
setting,make it more easy to used.
Specification:
● Working temperature: -20-60 ℃
● Supply voltage: DC5~24V
● External dimension: L249×W105×H43mm
● Packing size: 270*130*45mm
● Gross weight: 930g
● Static power consumption: <1W
● Output current: 3A *24
● Output power: 5V:<360W 12V:<864W, 24V:<1728W
● DMX512standard:DMX512/1990
● Channel: 24

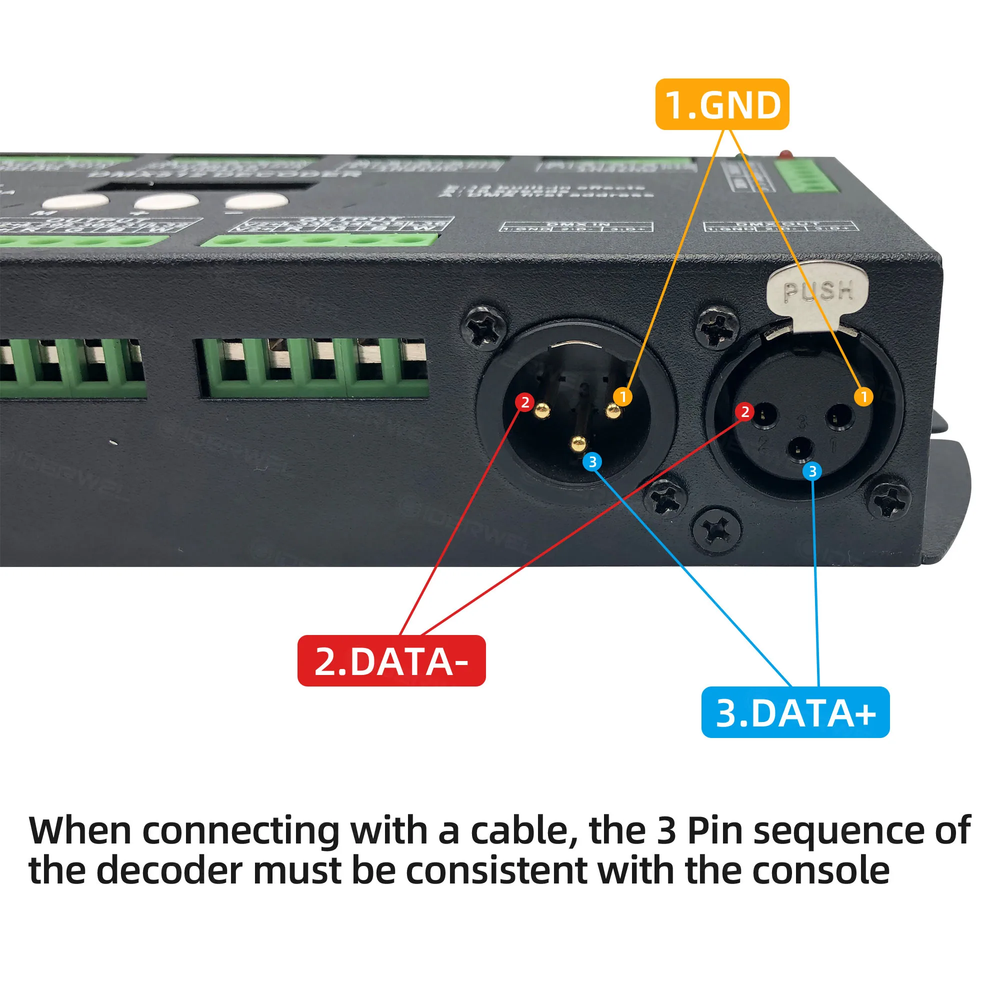

● Accessory: XLR*2pcs
● DMX Input/output interface:RJ45
Autions:
1, This products Input voltage is DC5~24V,other input voltage are not allowed.
2, Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
3, Overload are prohibited.
