36 Channel 4CH DMX512 Decoder RGB LED Strip Lights Controller Decoder Dimmer Driver DC9V-24V LED Strip Stage Controller

Products Performance:
"Input Power: DC9V～DC24V
Maximum load current: 2A/CH×36 "
Maximum power load: 864W (12V) 1728W (24V)
Output gray level: 256
Input Signal: DMX512/1990
Output signal: 36 channels Constant PWM
Output DMX : 36 channels

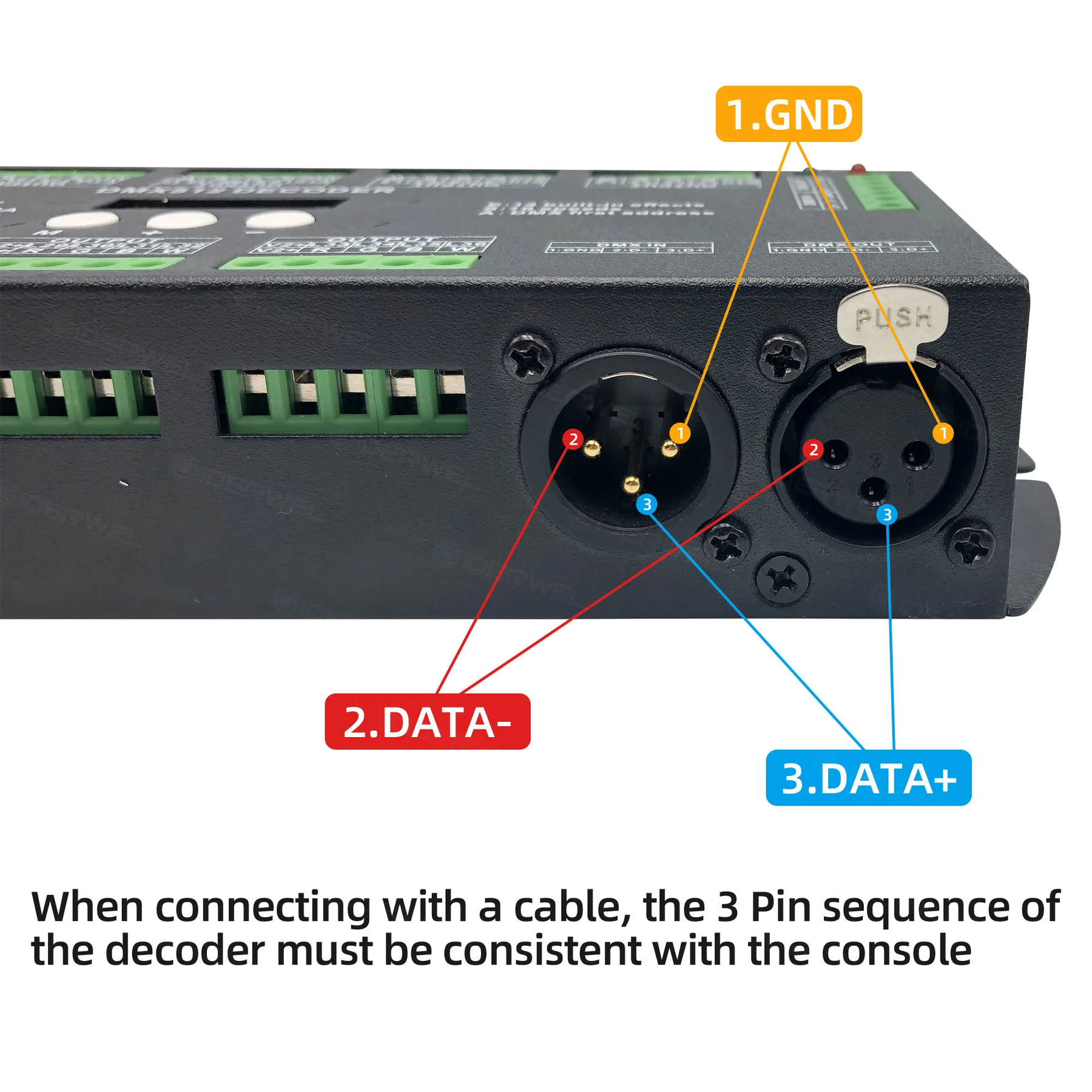

Standard XLR-3 caron plug,terminal

Basic functions:

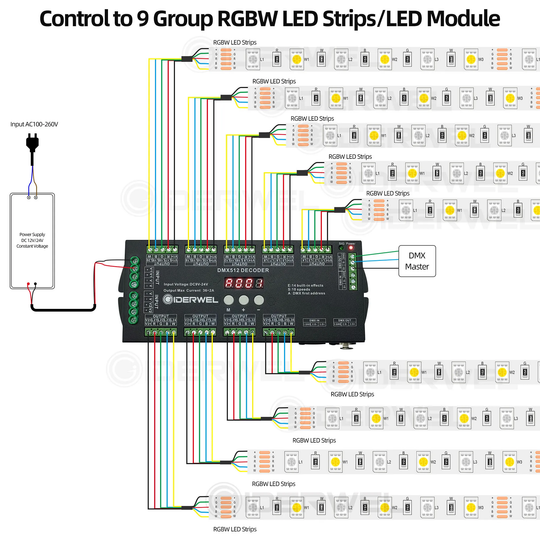

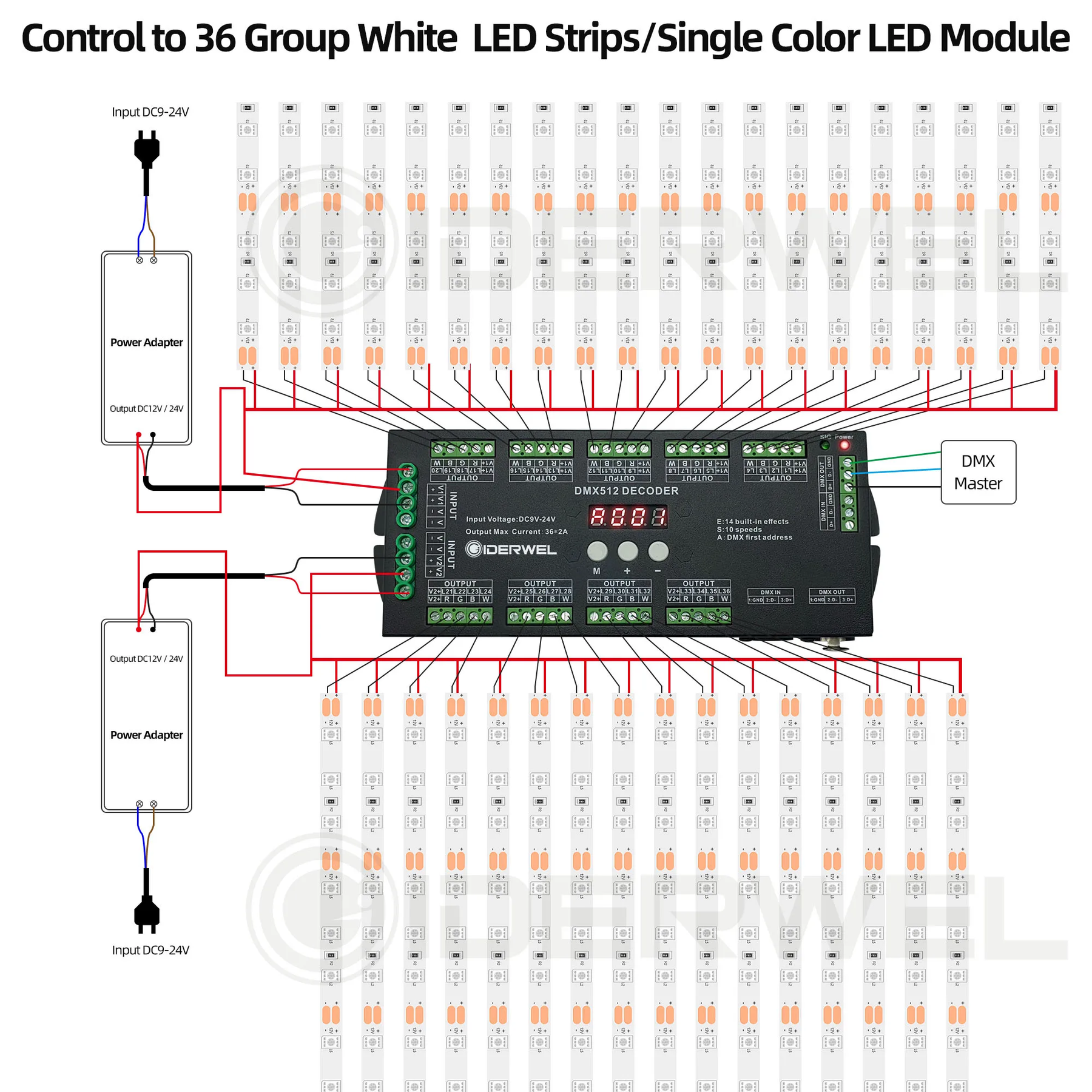

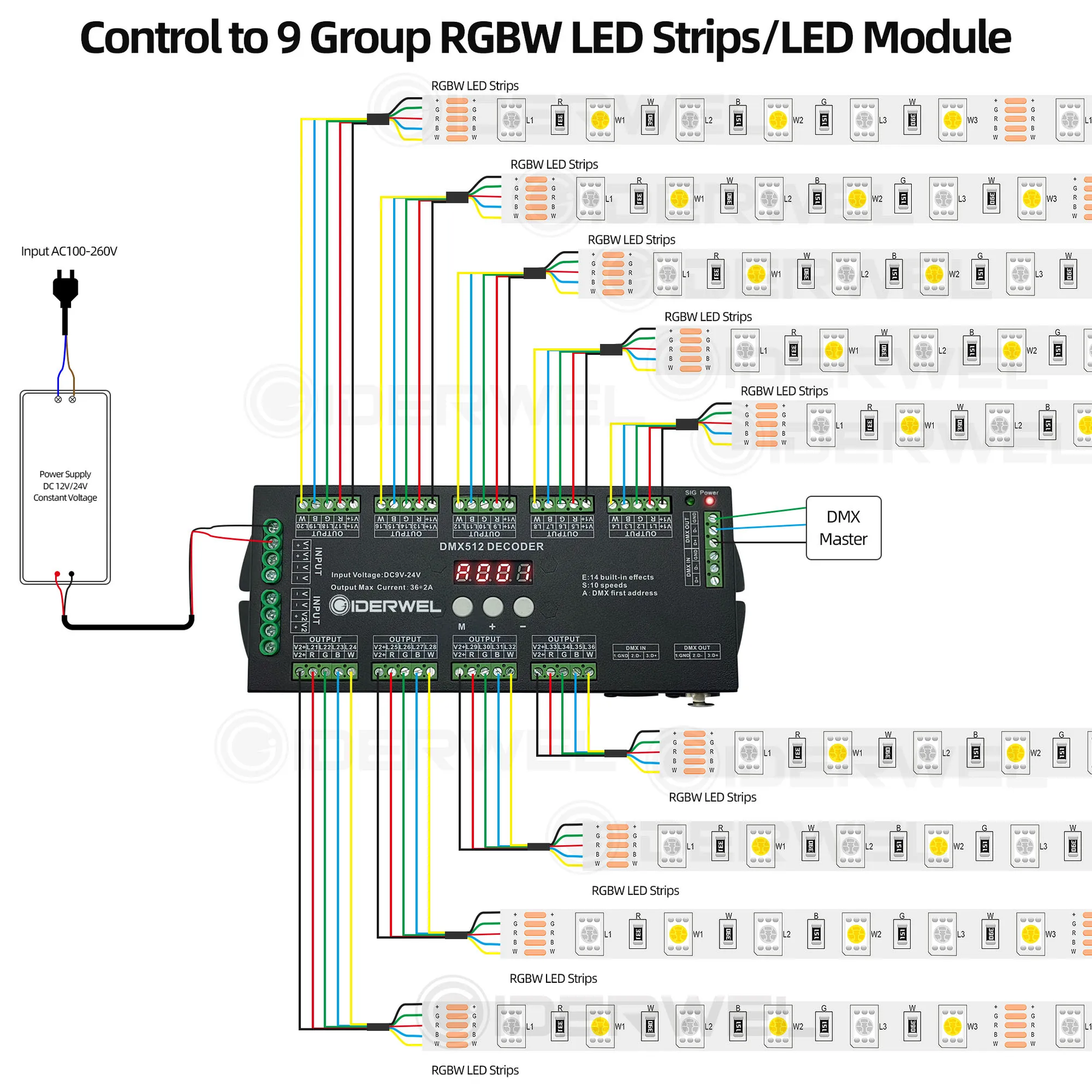

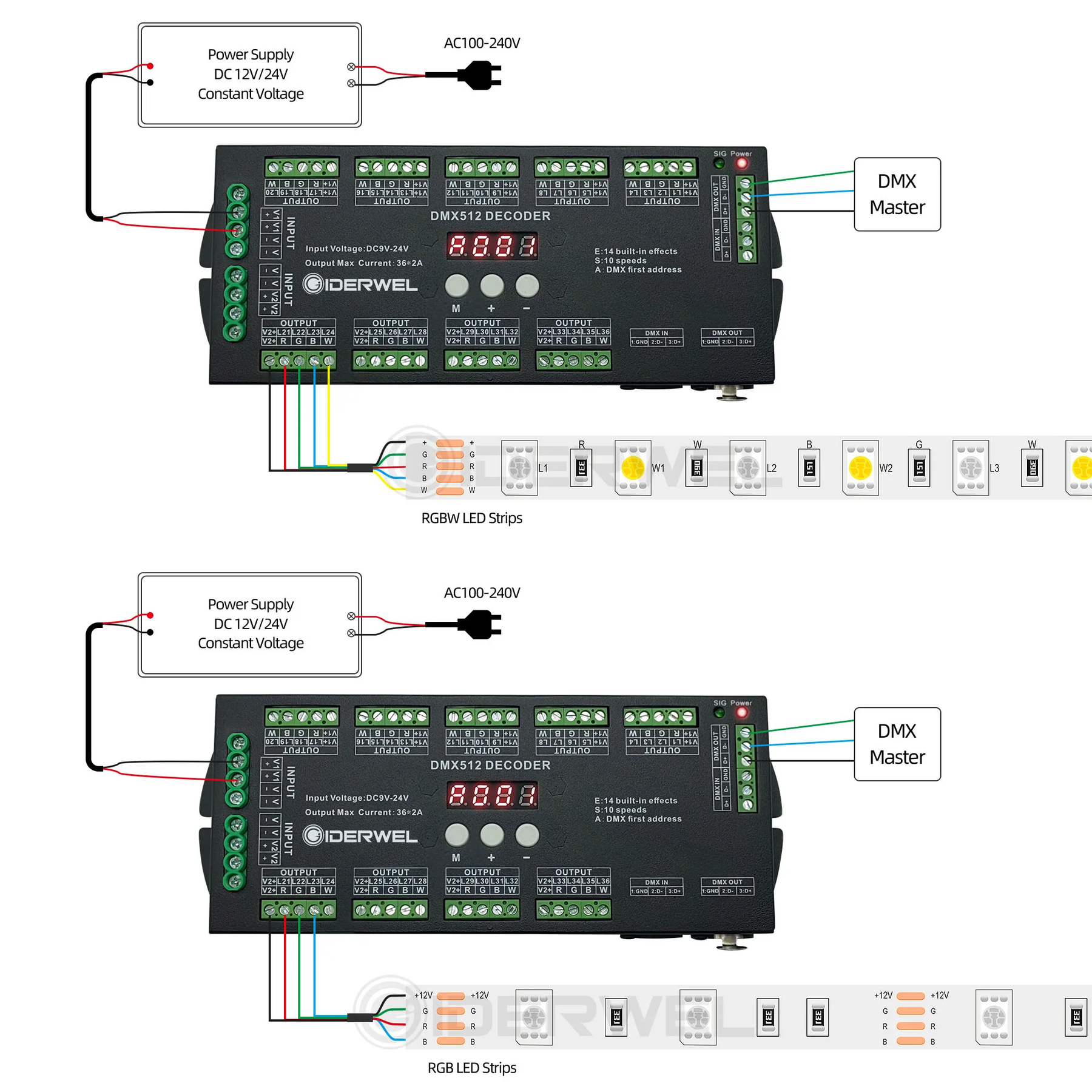

There are 36 output channels, can connect with single or RGB,RGBW lamp. 0-100% dimming output, each channel 256 gray levels International standard DMX512 input protocol, address code set by button. Wide voltage DC input DC9V ~ DC24V. Each occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.

Decoder to use:

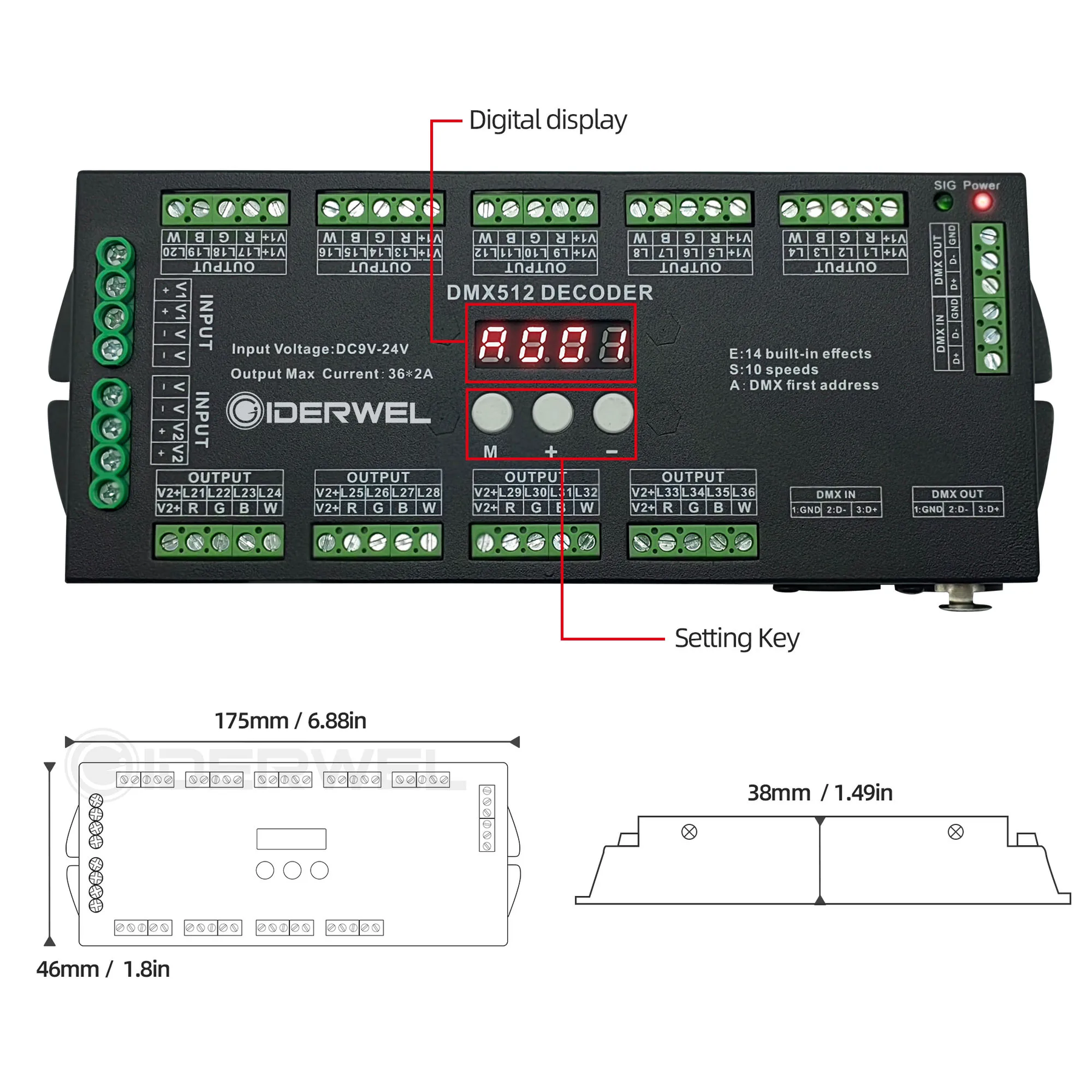

The first digital tube is the mode:

The first position of the digital tube is E, which is the built-in mode,14 built-in effects.

The first position of the digital tube is S, which is the built-in mode speed.10 speeds.

The first display of the digital tube shows that A is the DMX first address.

Lutron Lighting Control SystemRgb Led Control36 Channel DMX512 Control:Manage up to 36 channels with precision, tailoring lighting effects for complex stage setups.

High Power Output:Supports up to 864W (12V) or 1728W (24V) LED power, ensuring bright and dynamic lighting.

Advanced Dimming Capability:Achieve 0-100% dimming for each channel, offering 256 gray levels for smooth light transitions.

Versatile Connectivity:Compatible with single or RGB LED strips, catering to a wide range of lighting applications.

Easy Address Setting:Conveniently set DMX addresses with a DIP switch, simplifying integration with existing systems.

We offer a one-year limited warranty from the date of purchase.
