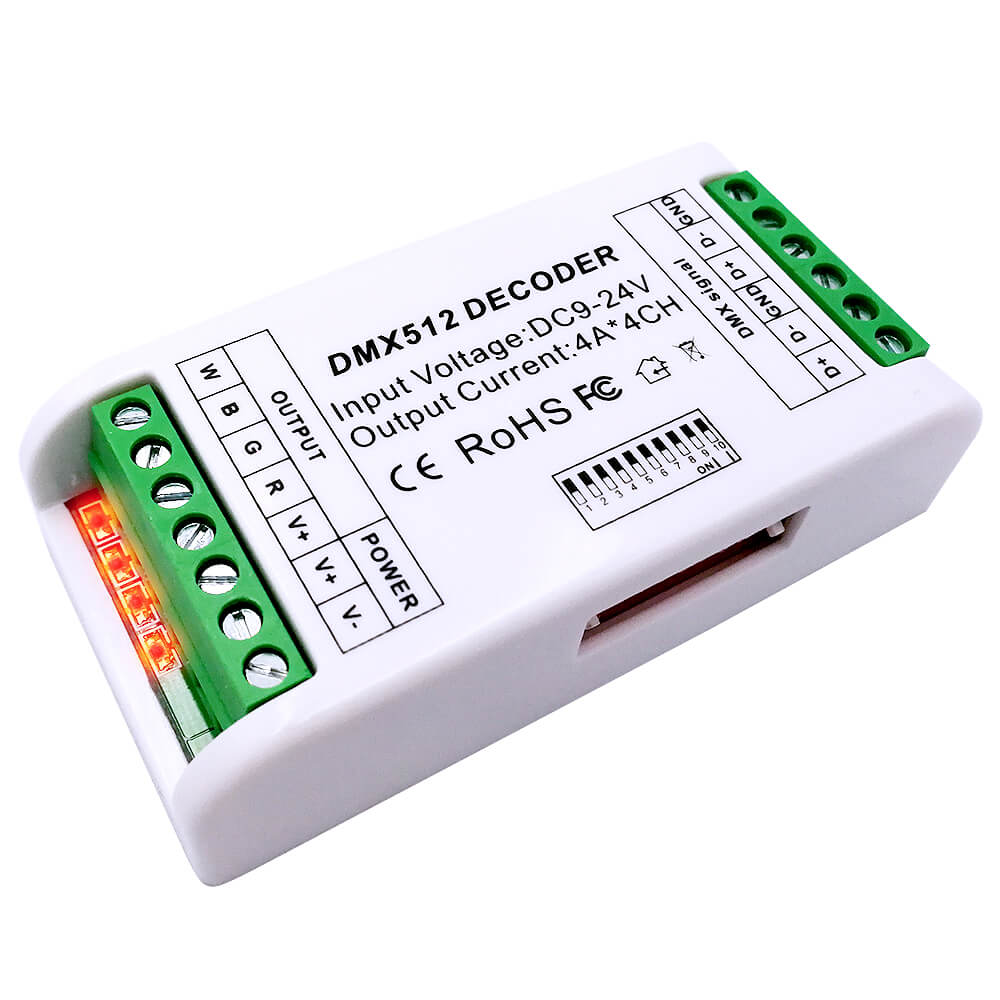

Name: 3 CH/4 CH DMX Decoder
Brand: GIDERWEL
SKU: SF-Mini decoder-4channel
Price: 15.99 USD
Availability: InStock

$22.00 USD $15.99 USD

Specifications

RGBW 4 Channels

RGB 3 Channels

Quantity

In stock, ready to ship
Inventory on the way

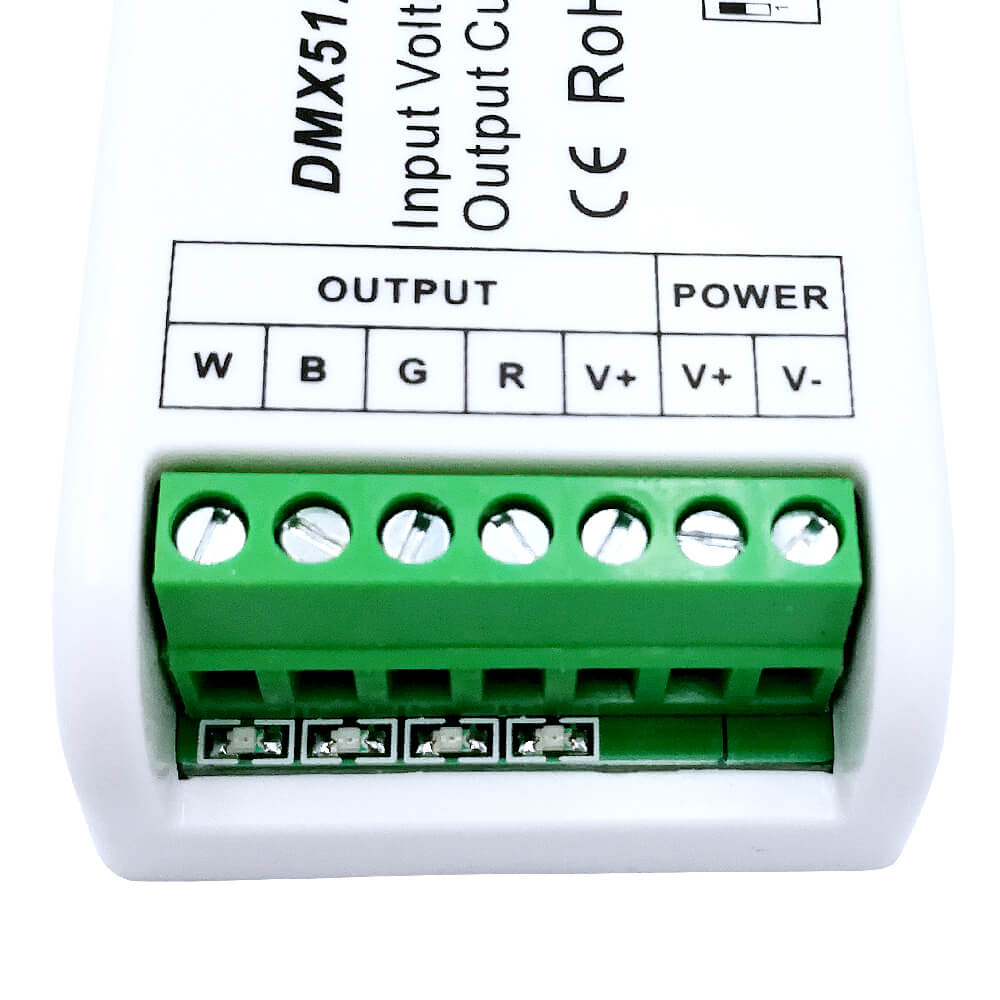

🟢There are 3 / 4 output channels, can connect with single or RGB/RGBW lamps;

🟢Each occupied by 4 DMX address. 0-100% dimming output, each channel 256 gray levels;

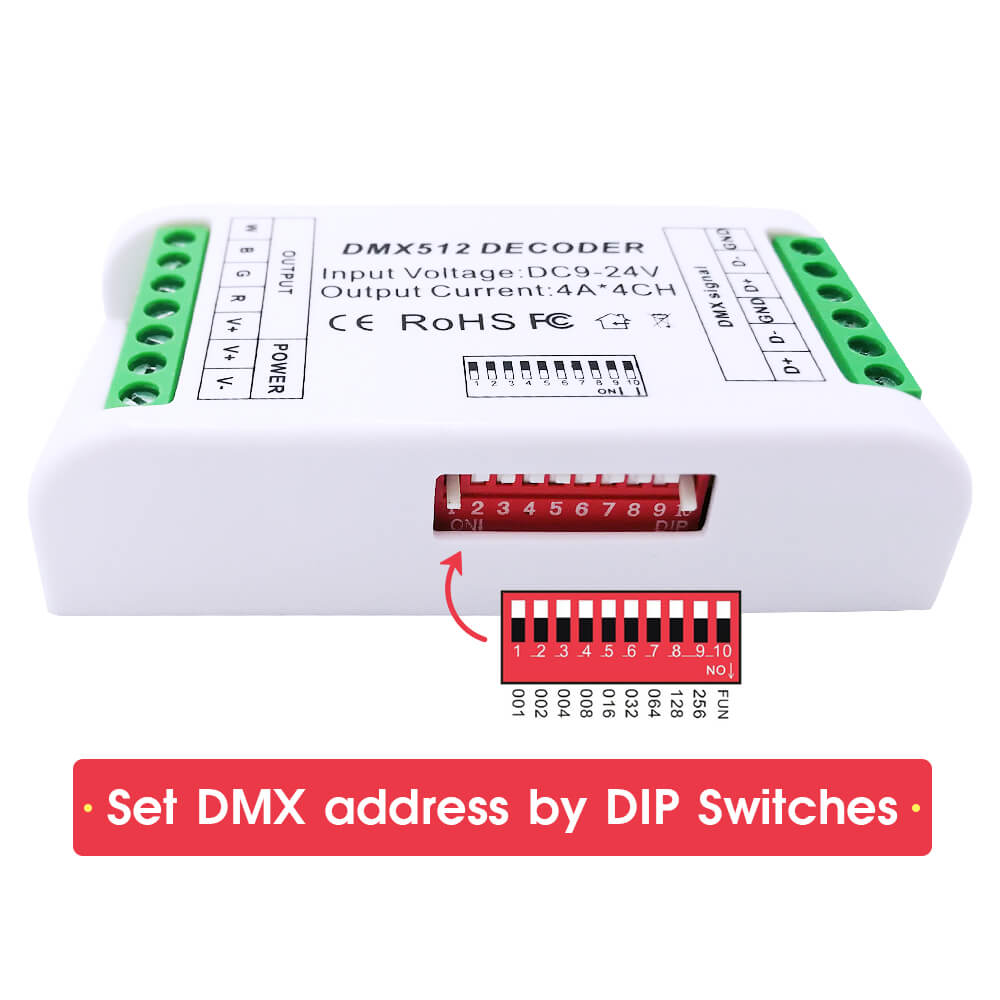

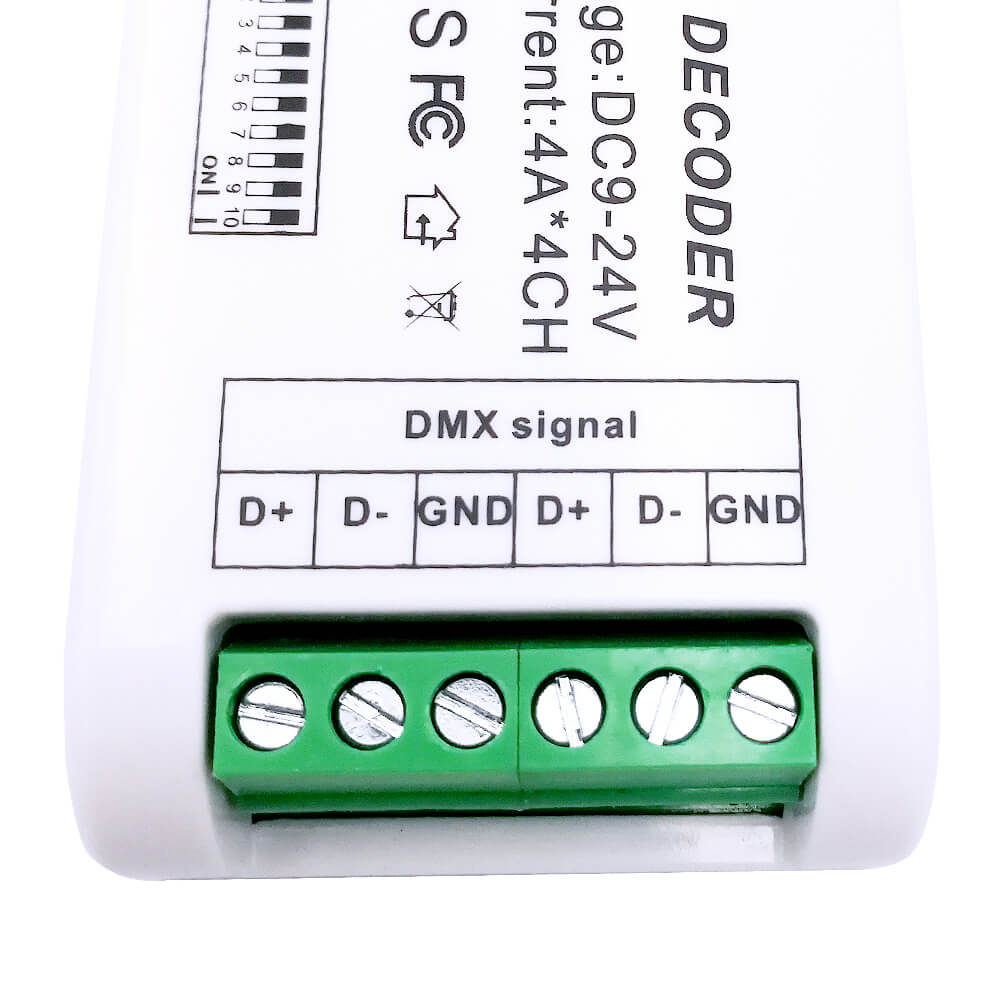

🟢Input Signal: standard DMX512/1990, address code set by DIP switches;

🟢Input DC 9V ~DC24V; Output Max power load: 192W(12V)/384W (24V);

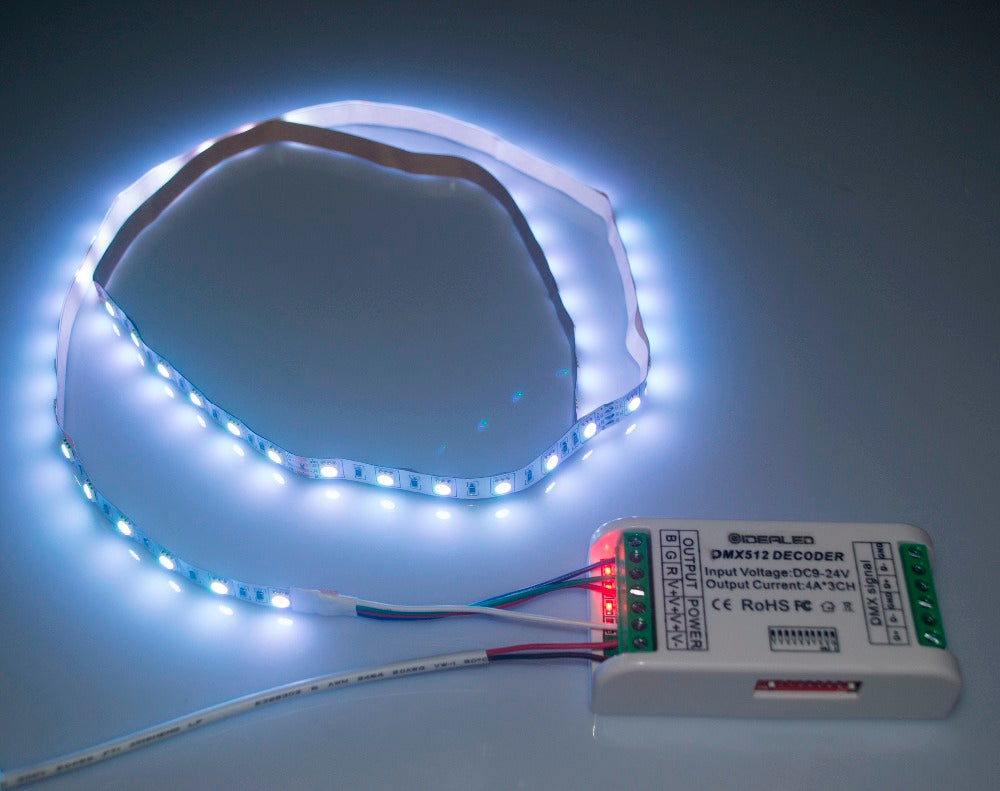

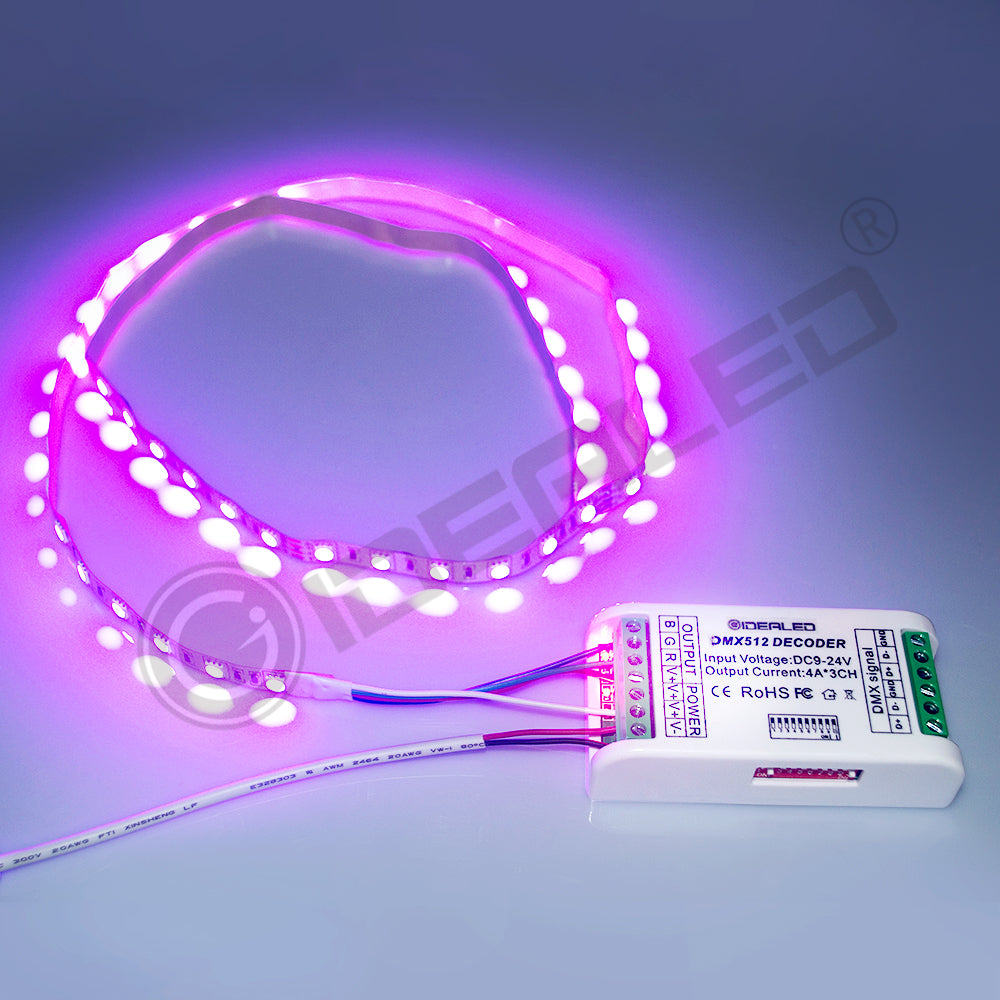

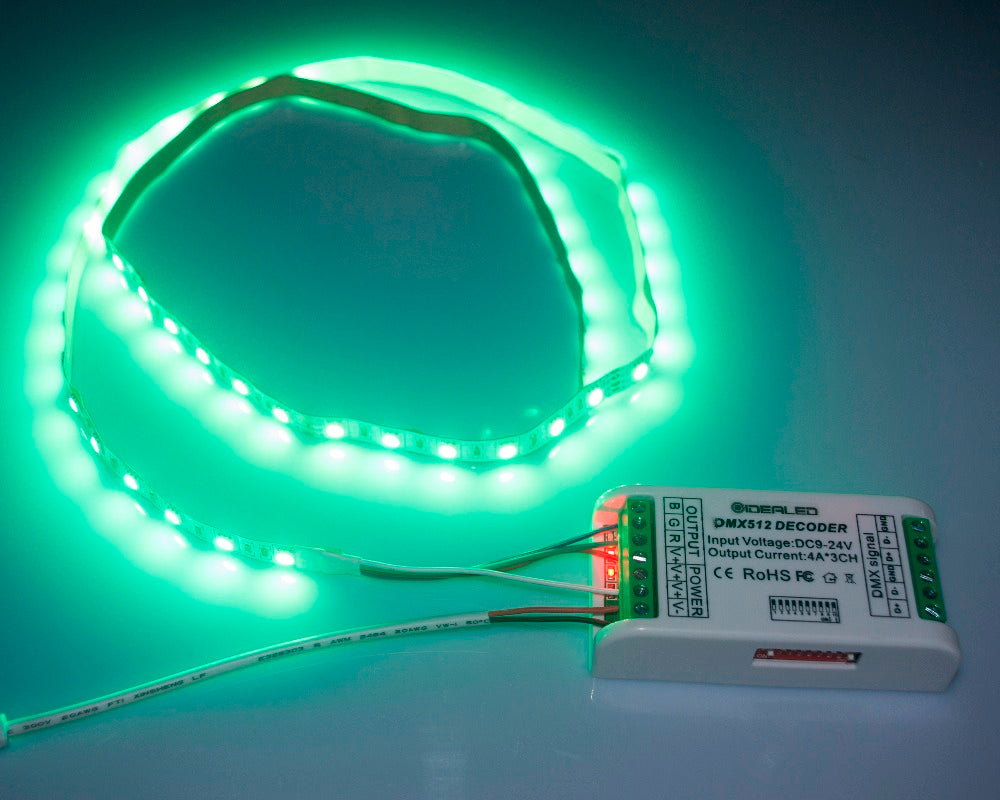

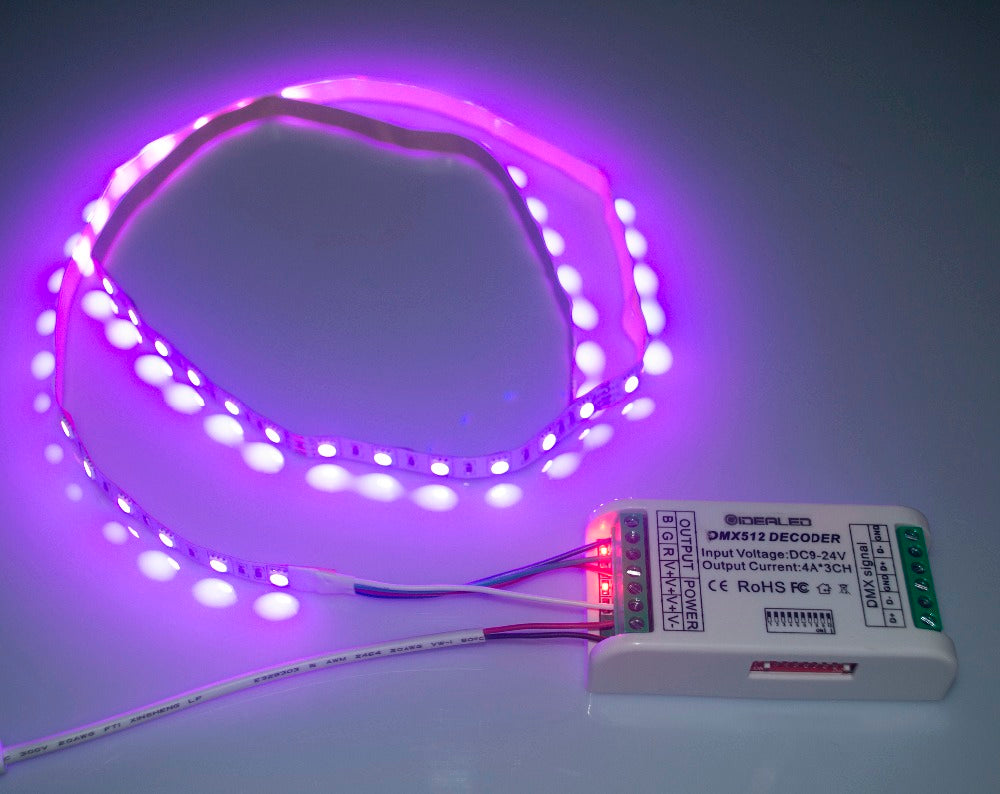

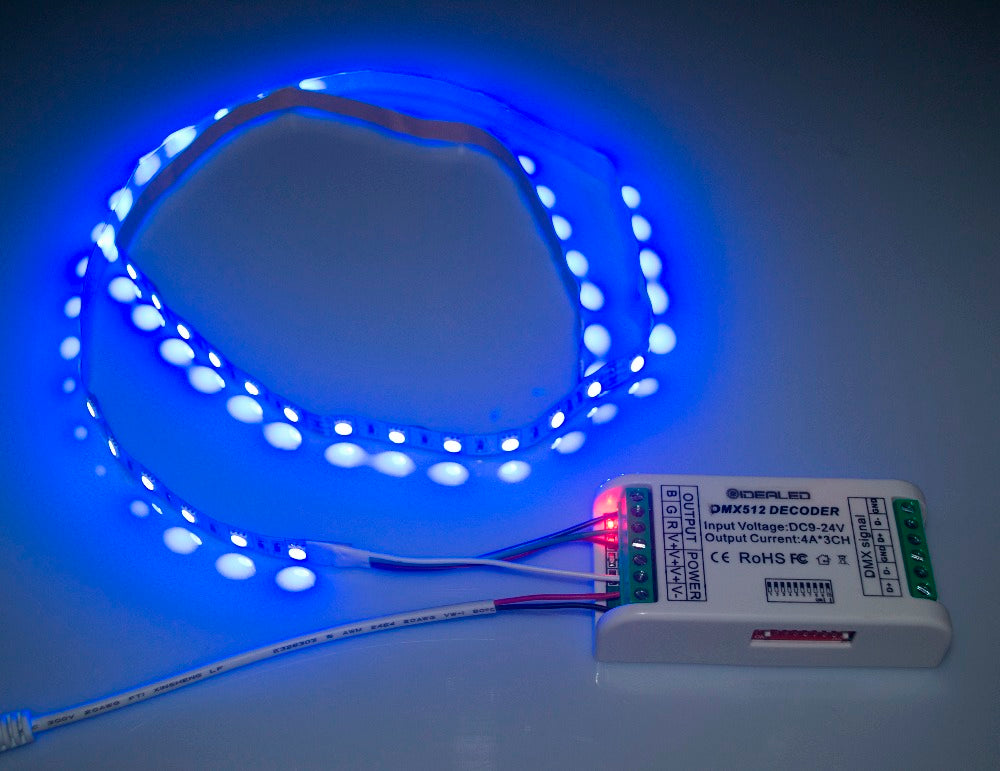

🟢Output 4A each channel max, Use for LED strip, LED module, LED light.

Type: RGB | RGBW
Input Voltage: DC 9-24V
Output Current: Max 4A/Channel
Output Gray Level: 256
Input Signal: DMX 512/1990

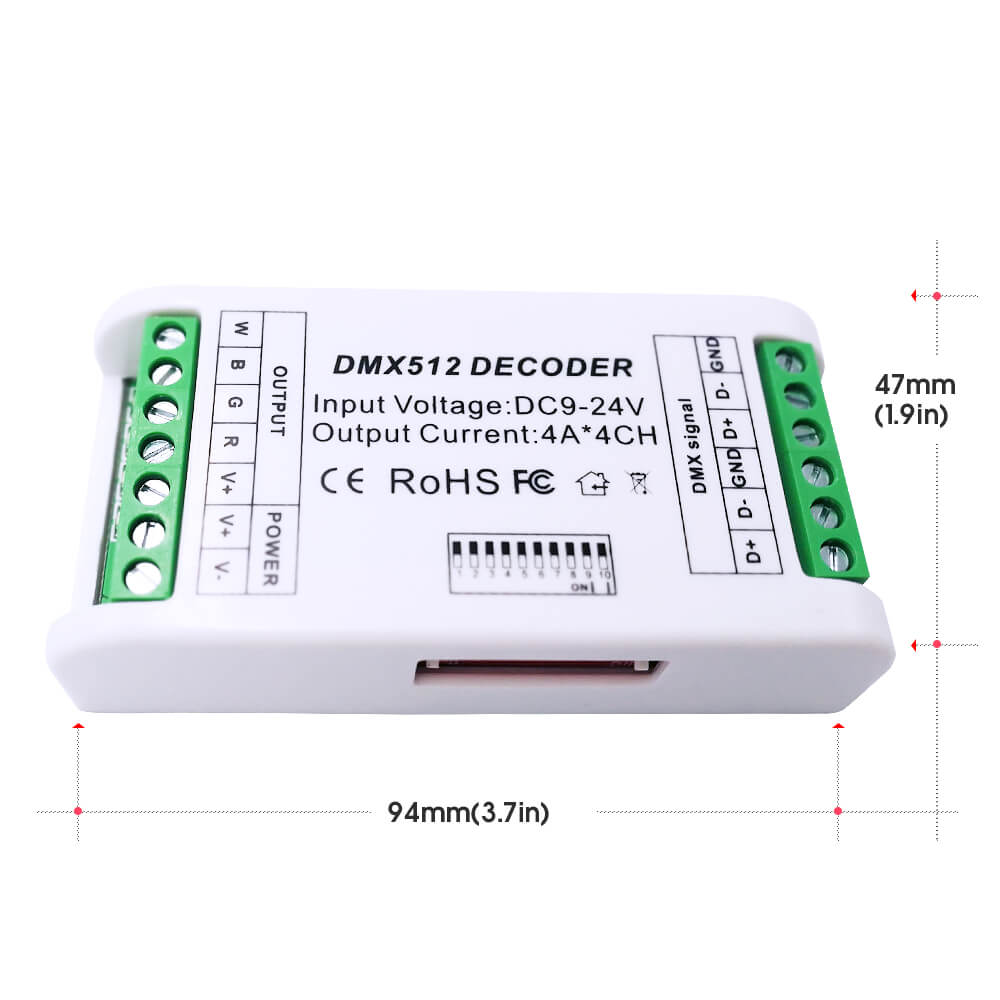

Product Dimensions: 3.7 x 1.9 x 0.9 inches
Net Weight: 60g /2.1OZ

We offer a one-year limited warranty from the date of purchase.

[{"id":31434819272786,"title":"RGBW 4 Channels","option1":"RGBW 4 Channels","option2":null,"option3":null,"sku":"SF-Mini decoder-4channel","requires_shipping":true,"taxable":true,"featured_image":{"id":29950076584116,"product_id":4394008641618,"position":1,"created_at":"2021-08-06T01:38:21-04:00","updated_at":"2021-08-06T01:39:23-04:00","alt":null,"width":1000,"height":1000,"src":"\/\/giderwel.com\/cdn\/shop\/products\/1000-1_9fe3c6c7-71e3-4506-9087-250b9cf9a22d.jpg?v=1628228363","variant_ids":[31434819272786]},"available":true,"name":"3 CH\/4 CH DMX Decoder - RGBW 4 Channels","public_title":"RGBW 4 Channels","options":["RGBW 4 Channels"],"price":1599,"weight":77,"compare_at_price":2200,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":22343473496244,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/giderwel.com\/cdn\/shop\/products\/1000-1_9fe3c6c7-71e3-4506-9087-250b9cf9a22d.jpg?v=1628228363"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":31434819305554,"title":"RGB 3 Channels","option1":"RGB 3 Channels","option2":null,"option3":null,"sku":"SF-Mini decoder-3channel","requires_shipping":true,"taxable":true,"featured_image":{"id":13738752606290,"product_id":4394008641618,"position":7,"created_at":"2019-11-26T20:35:27-05:00","updated_at":"2021-08-06T01:39:23-04:00","alt":null,"width":1000,"height":791,"src":"\/\/giderwel.com\/cdn\/shop\/products\/HTB1X59jXVGWBuNjy0Fbq6z4sXXaq.jpg?v=1628228363","variant_ids":[31434819305554]},"available":true,"name":"3 CH\/4 CH DMX Decoder - RGB 3 Channels","public_title":"RGB 3 Channels","options":["RGB 3 Channels"],"price":1529,"weight":77,"compare_at_price":2200,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":5914884309074,"position":7,"preview_image":{"aspect_ratio":1.264,"height":791,"width":1000,"src":"\/\/giderwel.com\/cdn\/shop\/products\/HTB1X59jXVGWBuNjy0Fbq6z4sXXaq.jpg?v=1628228363"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

🟢There are 3 / 4 output channels, can connect with single or RGB/RGBW lamps;

🟢Each occupied by 4 DMX address. 0-100% dimming output, each channel 256 gray levels;

🟢Input Signal: standard DMX512/1990, address code set by DIP switches;

🟢Input DC 9V ~DC24V; Output Max power load: 192W(12V)/384W (24V);

🟢Output 4A each channel max, Use for LED strip, LED module, LED light.

3 Channel/4 Channel RGBW DMX Decoder for RGB/RGBW LED Strips Controller DMX 512 Decoder Dimmer Driver For LED Strip Module DC9-24V

Package Included:

1 x DMX 512 Decoder
1 x User Manual
