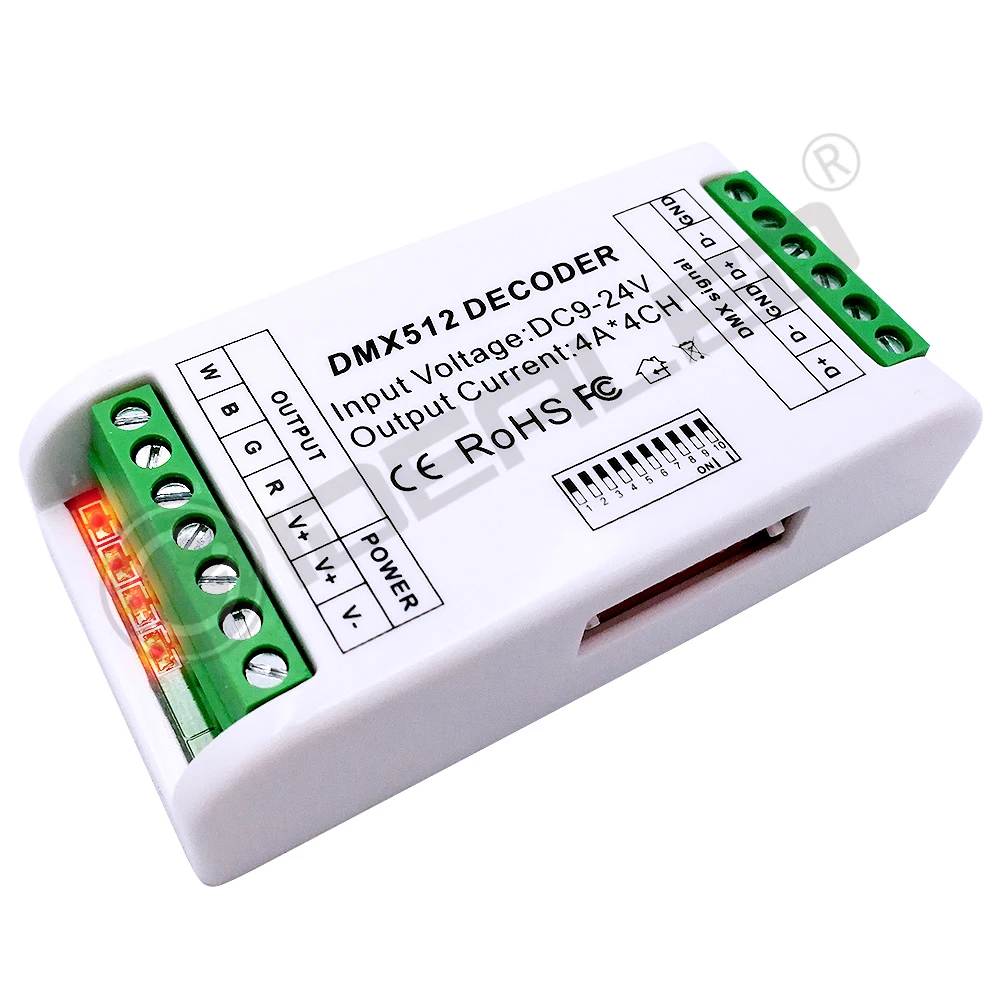

4 Channel DMX RGBW decoder Product specification:
1. 4 channels output current:4CH*4A
2.Input power::DC12V-24V

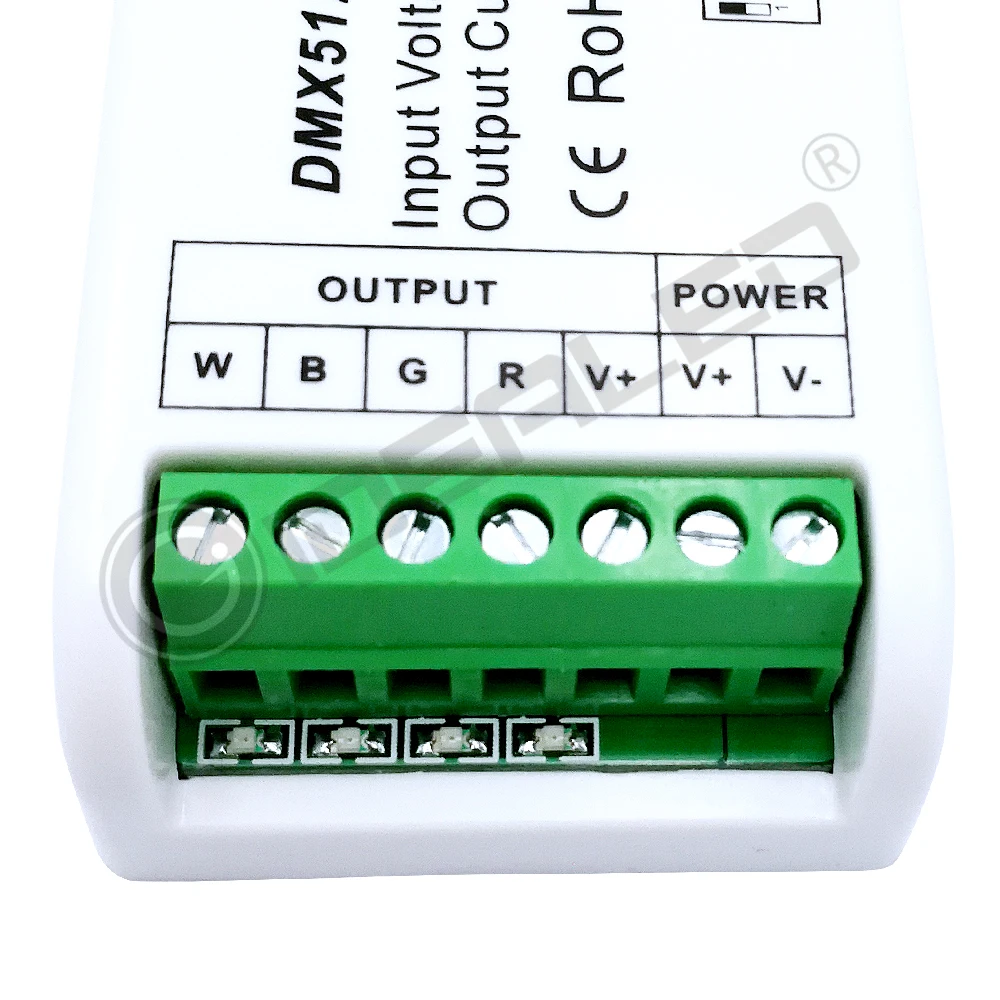

3.Connecting mode: common anode
4.Output Power: 192W(12V),384W(24V)
5.10A terminals, safe and reliable

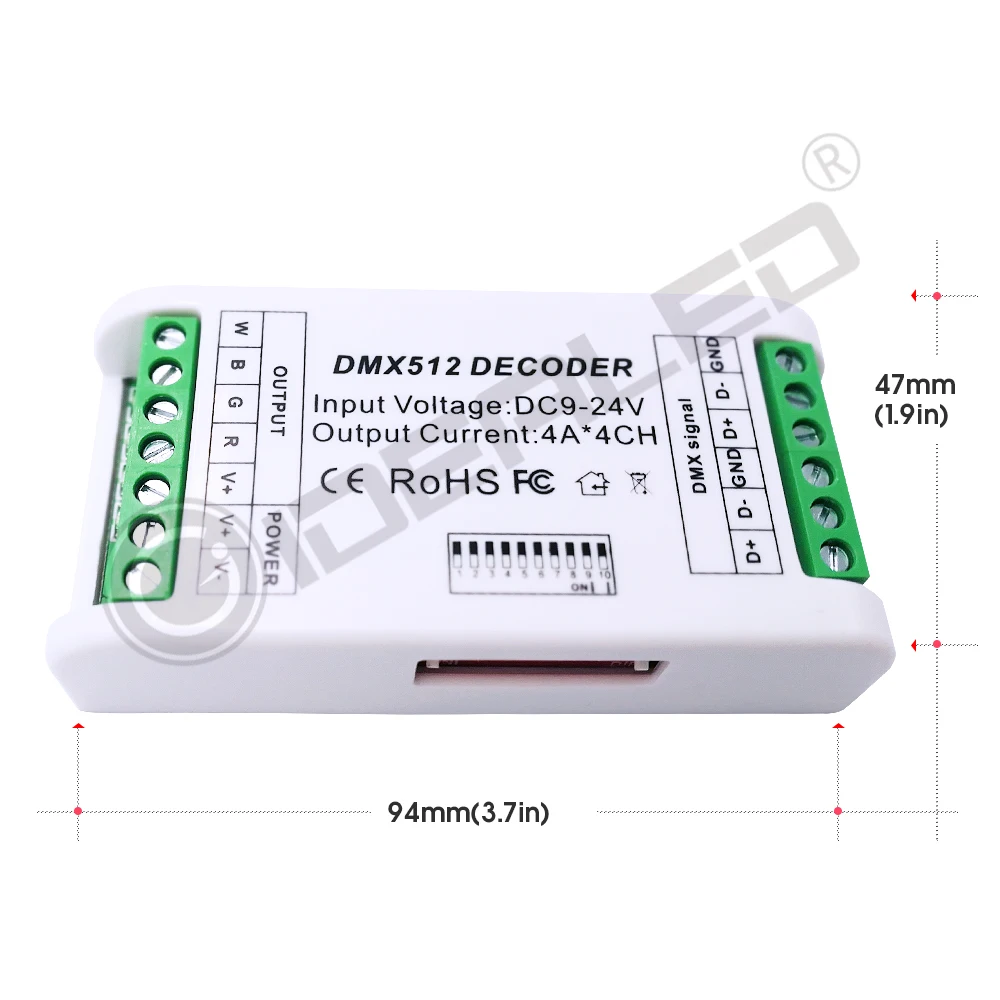

6.Cover Size:95*46*25mm
7. Packaging size:110*50*30mm
8.Weight:10 g
Basic functions:

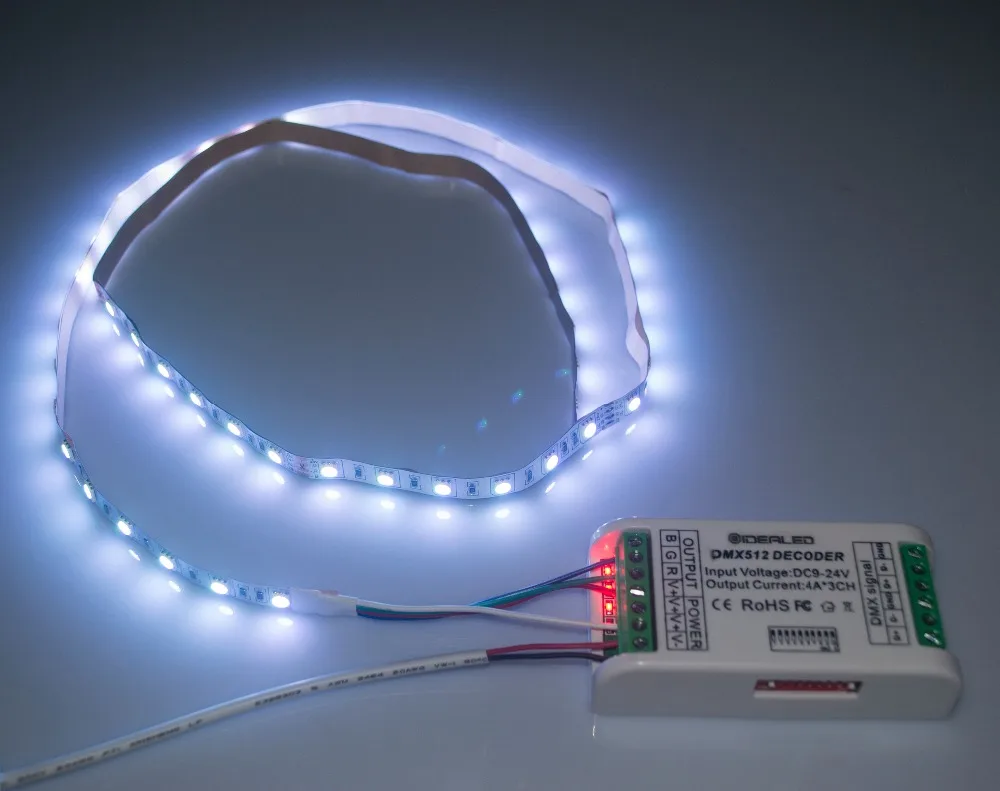

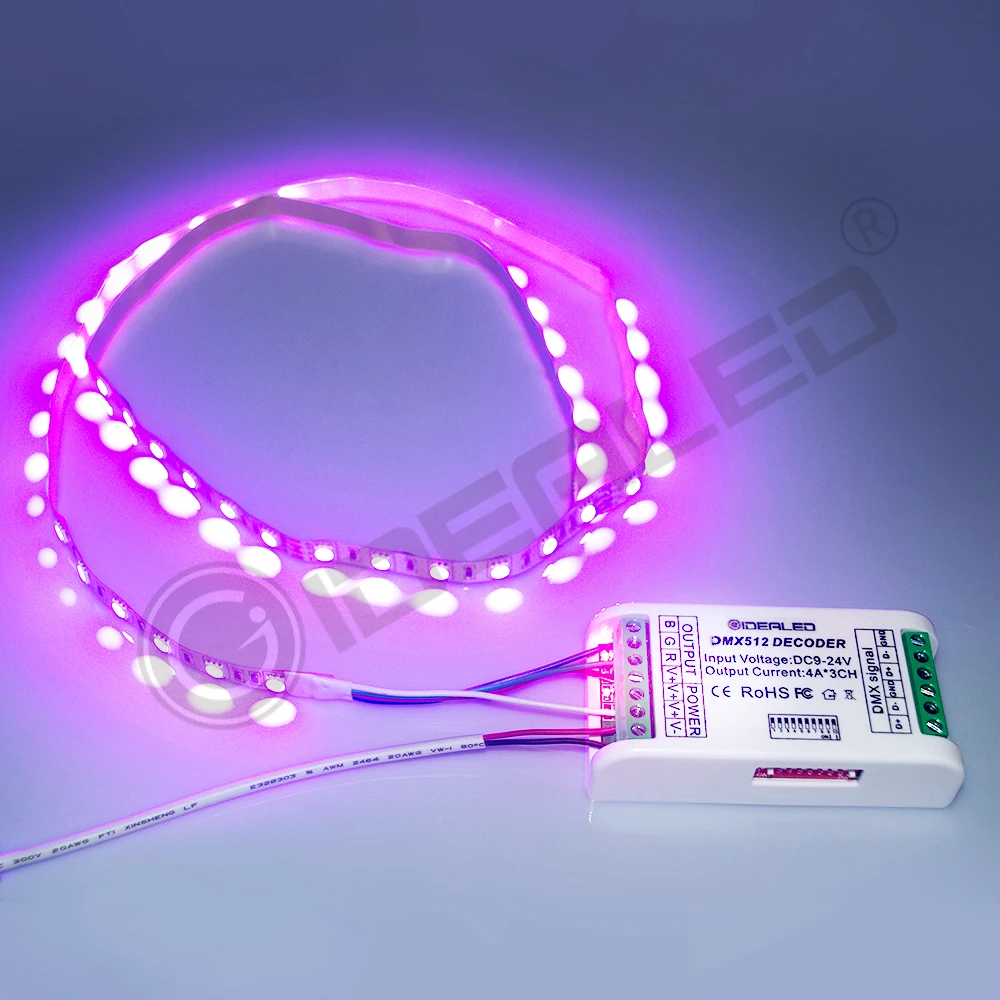

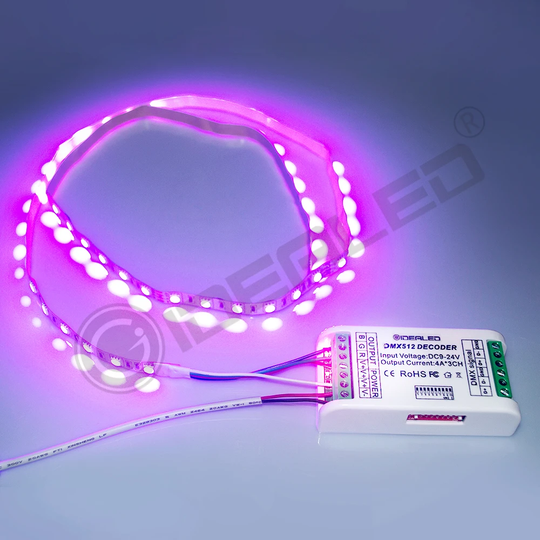

There are 3 output channels, can connect with single or RGB lamps;
0-100% dimming output, each channel 256 gray levels

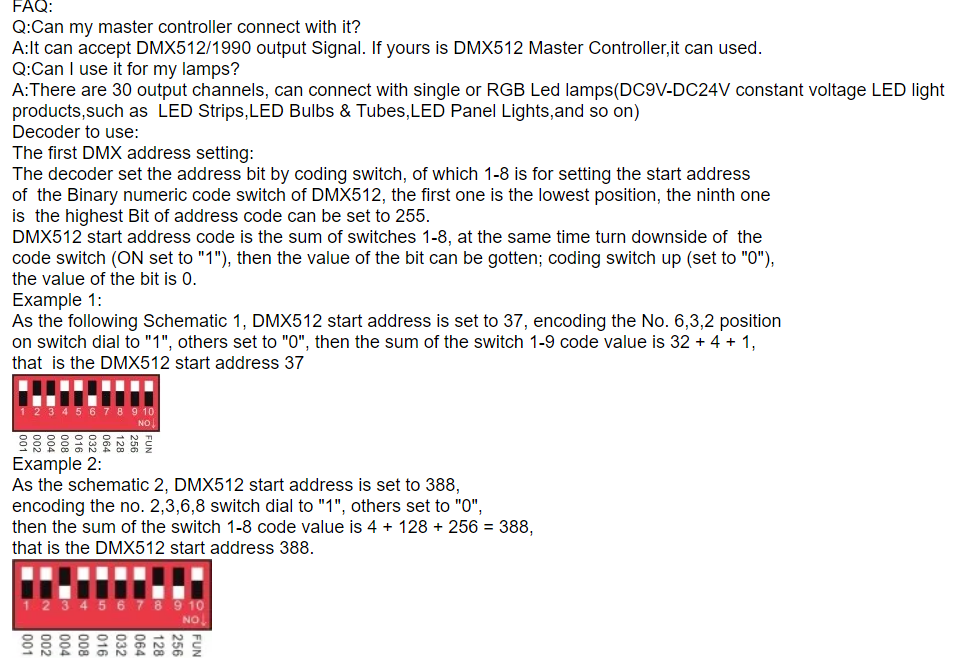

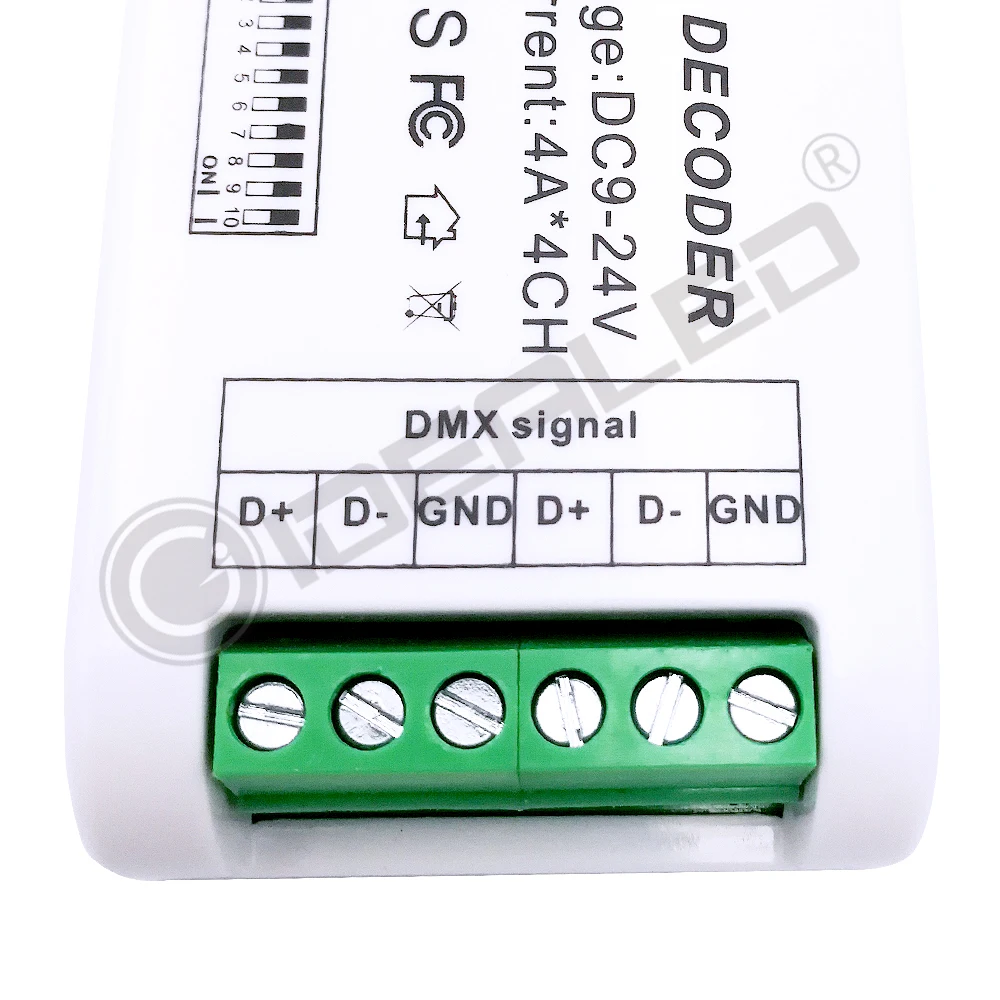

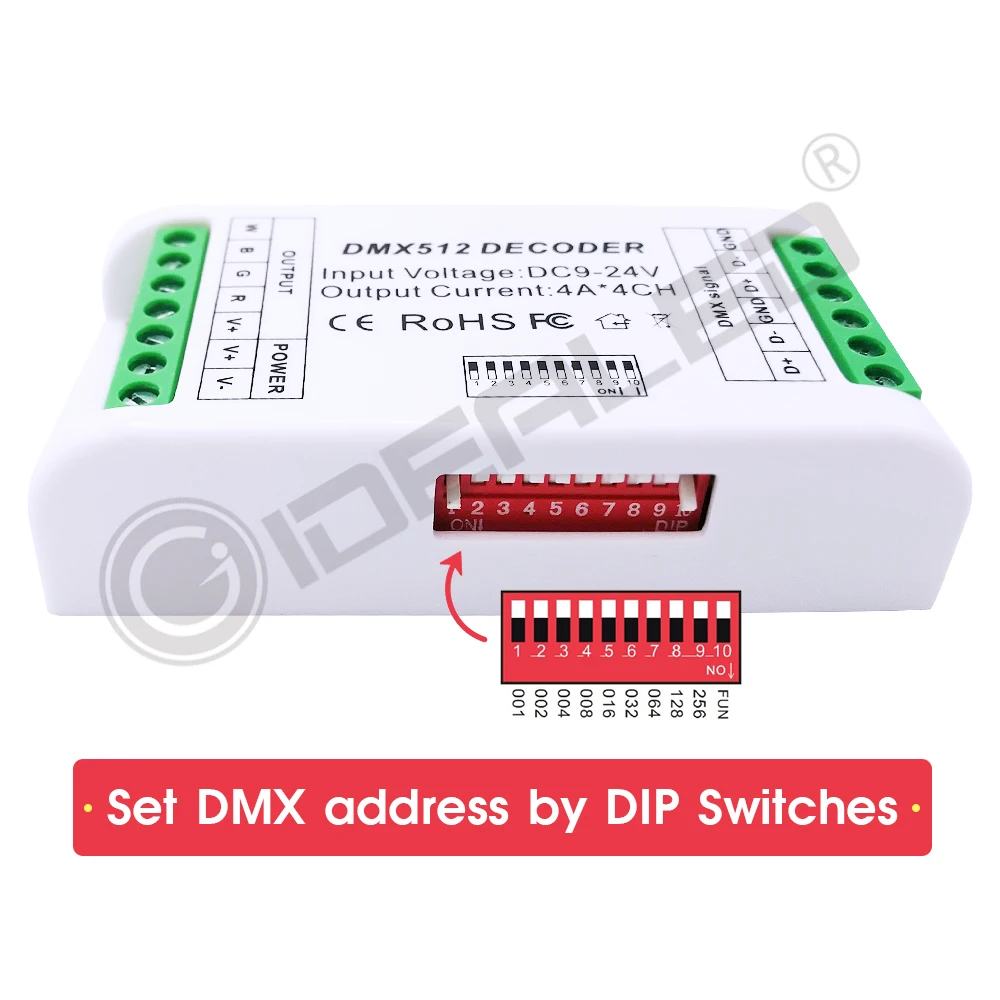

International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC12V ~ DC24V;
Each occupied by 3 DMX address.
