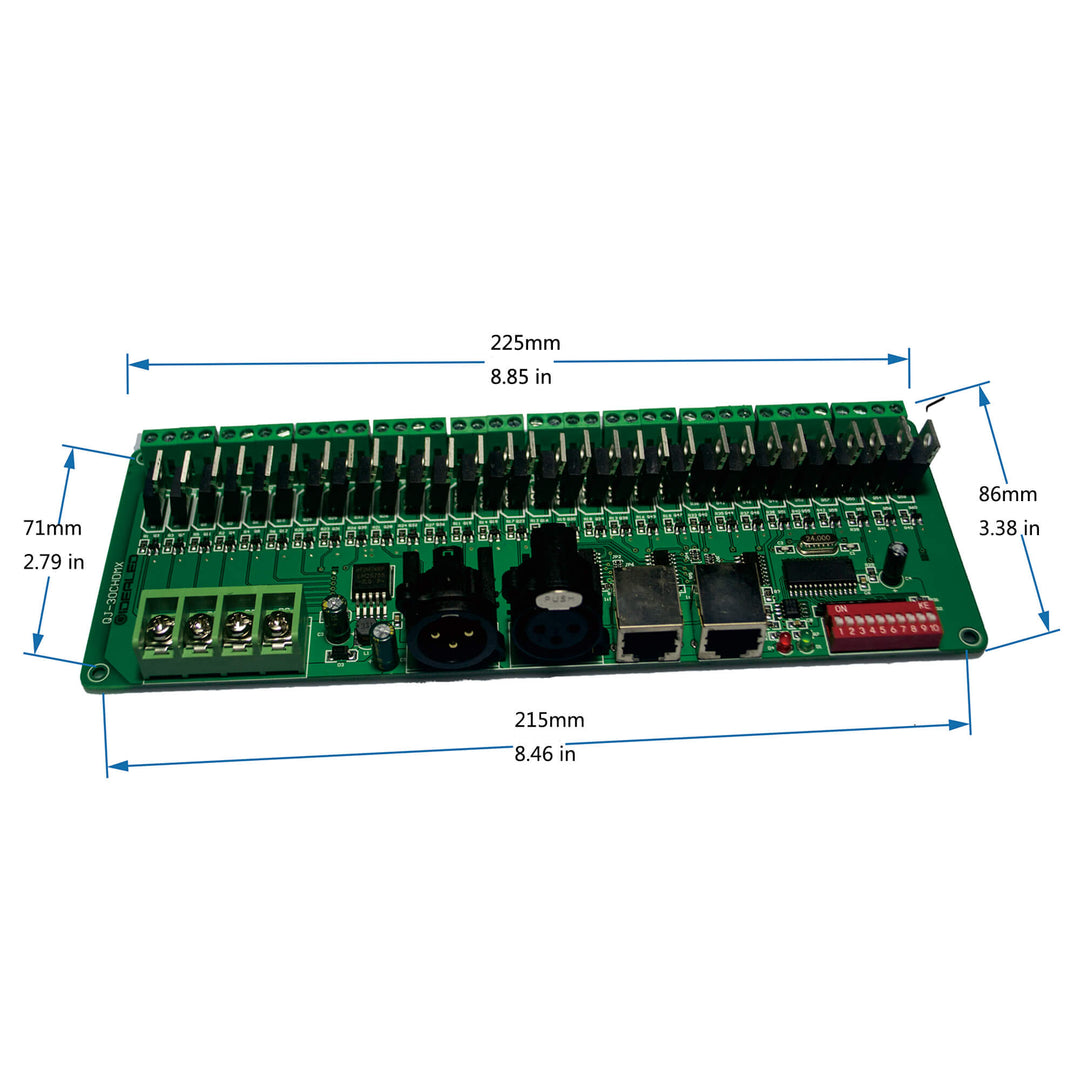

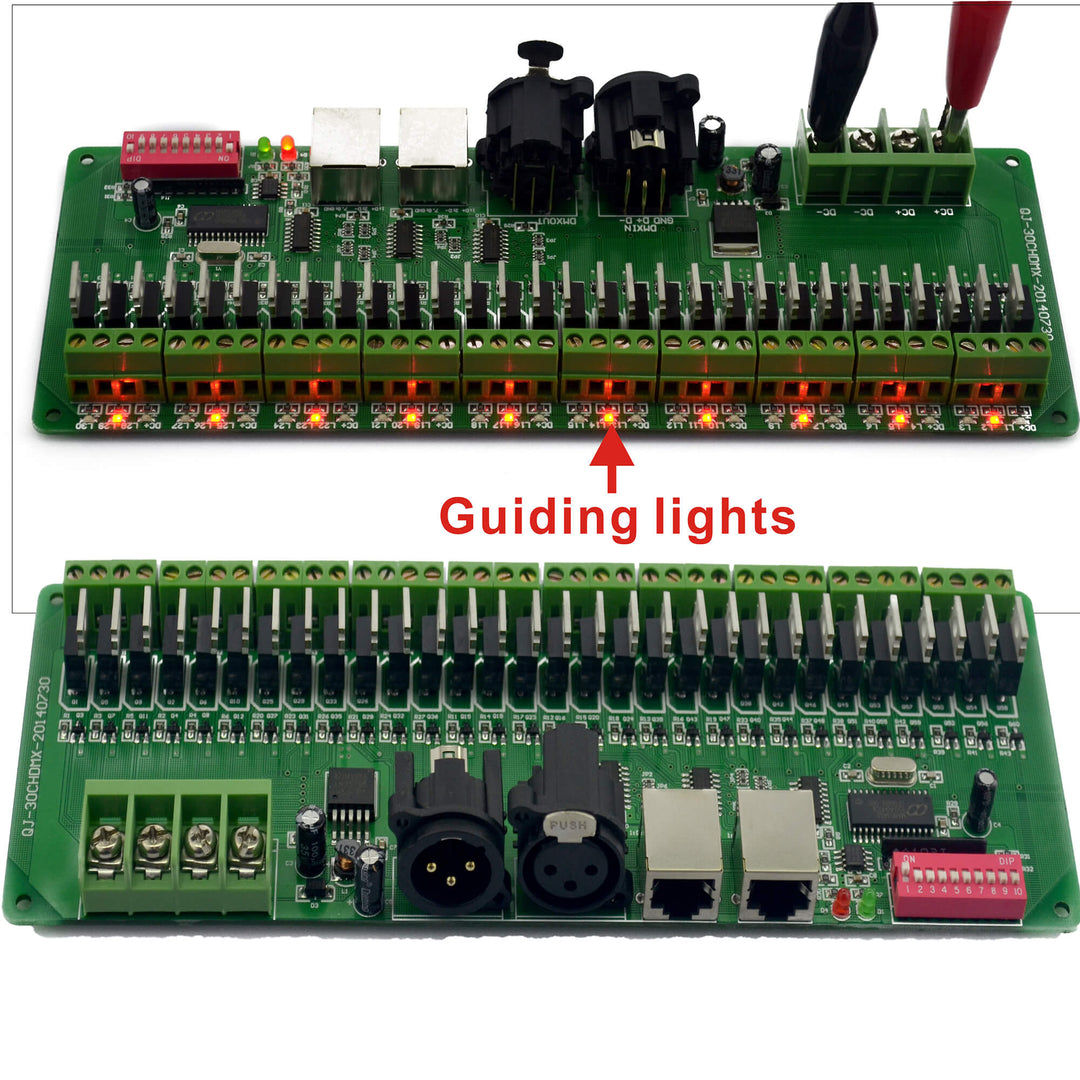

30 channel DMX decoder with XLR Dimmable LED Driver DC12-24V RGB LED Strip DMX 512 controller for 1440W RGB RGBW led strip light

Schematic for System Connection:

Installation Notes:

1 This kind of controller works only under DC9V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.

2 The UTP wire is connected hand in hand to make the cable, when two or more controller connected.

3 The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.

4 Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.

5 Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely

Basic functions:

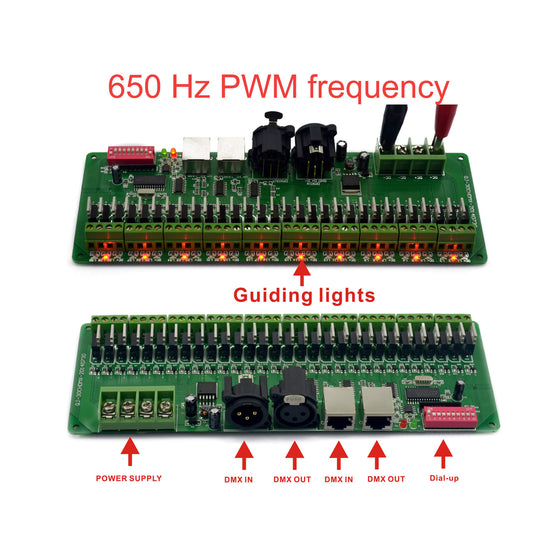

There are 30 output channels, can connect with single or RGB lamps;
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC9V ~ DC24V;
Each occupied by 30 DMX address.
The decoder comes with 16 kinds of test patterns, 16 levels for rate of change.
AQ:
Q:Can my master controller connect with it?
A:It can accept DMX512/1990 output Signal. If yours is DMX512 Master Controller,it can used.
Q:Can I use it for my lamps?
A:There are 30 output channels, can connect with single or RGB Led lamps(DC9V-DC24V constant voltage LED light products,such as LED Strips,LED Bulbs & Tubes,LED Panel Lights,and so on)

Decoder to use:
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-8 is for setting the start address
of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one
is the highest Bit of address code can be set to 255.
DMX512 start address code is the sum of switches 1-8, at the same time turn downside of the
code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"),
the value of the bit is 0.
Example 1:
As the following Schematic 1, DMX512 start address is set to 37, encoding the No. 6,3,2 position
on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 1,
that is the DMX512 start address 37

We offer a one-year limited warranty from the date of purchase.
