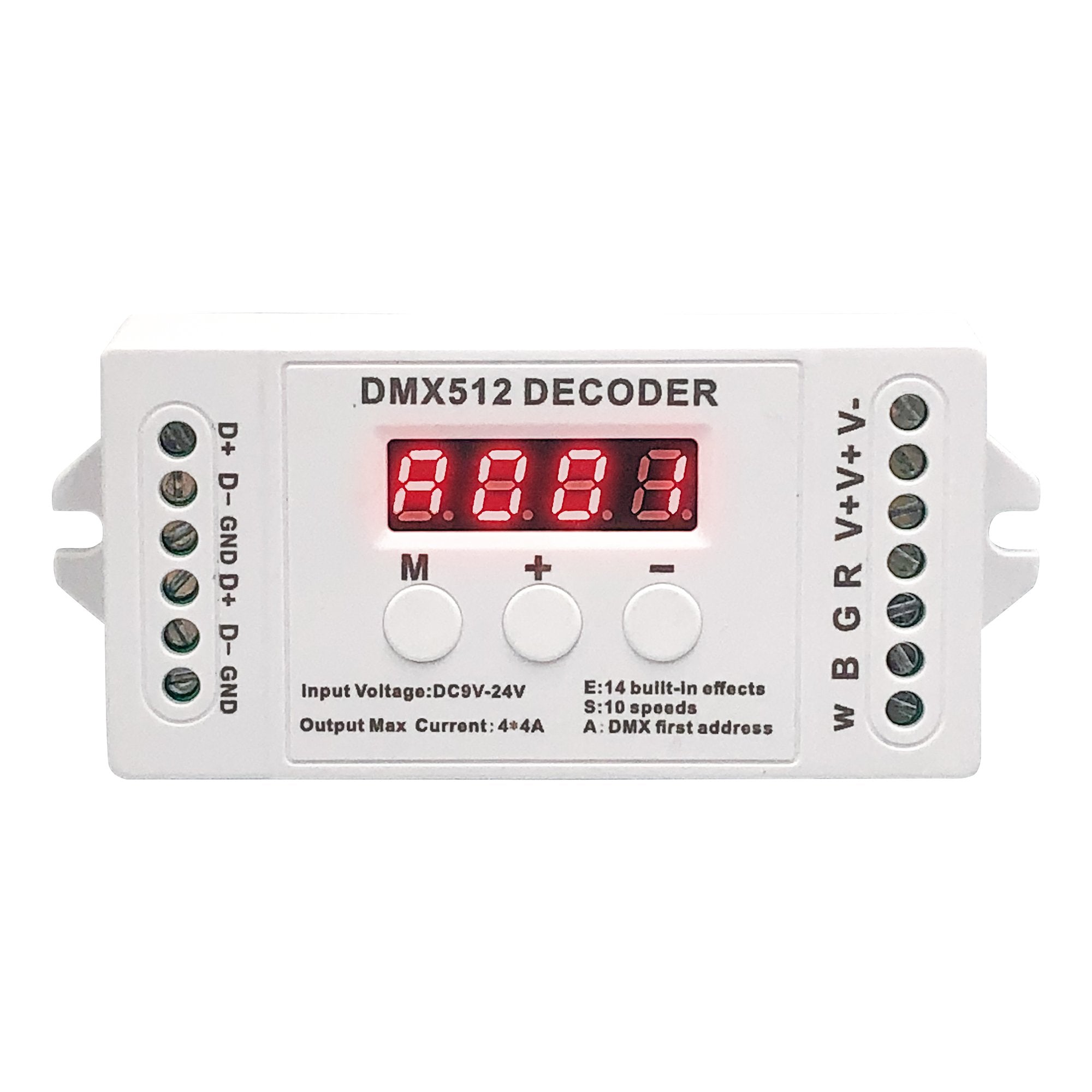

RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function
RGBWW 5 CH DMX Decoder with RDM function

RGBWW 5 CH DMX Decoder with RDM function

$35.99 USD $32.99 USD
/
Specifications
  • In stock, ready to ship
  • Inventory on the way

🟢Input standard DMX512 signal; Digital display DMX decoder; Set DMX decoder start address by buttons.

🟢Support RDM two-way communication function: support to obtain DMX decoder device status and change/set DMX start address in DMX console.

🟢5 channel output; 6 levels of PWM output frequency (250-8000Hz). Can be used to control CT/CCT/RGB/REBW/RGBWW LED strip lights.

🟢DMX dimmer: Selectable logarithmic or linear dimming curve, smoother dimming, suitable for control stage lighting, advertising lighting, decorative lighting, architectural Landscape Lighting, etc.

🟢Multiple protection: automatically adapt to the input voltage between DC12-48V. With overheat/overload/ short circuit protection/automatic recovery function.

Type: RGBCCT
Input Voltage: DC 12-48V
Output Current: Max 4A/Channel
Input Signal: DMX512/1990
Output: RGBWW 5 channels
Product Dimensions: 6.89 x 1.81 x 1.26 inches
Net Weight: 272g

We offer a one-year limited warranty from the date of purchase.

🟢Input standard DMX512 signal; Digital display DMX decoder; Set DMX decoder start address by buttons.

🟢Support RDM two-way communication function: support to obtain DMX decoder device status and change/set DMX start address in DMX console.

🟢5 channel output; 6 levels of PWM output frequency (250-8000Hz). Can be used to control CT/CCT/RGB/REBW/RGBWW LED strip lights.

🟢DMX dimmer: Selectable logarithmic or linear dimming curve, smoother dimming, suitable for control stage lighting, advertising lighting, decorative lighting, architectural Landscape Lighting, etc.

🟢Multiple protection: automatically adapt to the input voltage between DC12-48V. With overheat/overload/ short circuit protection/automatic recovery function.

DMX LED Controllerdmx controller

  • DC12-48V constant voltage input.
  • RGB+CCT 5-channel output.
  • This decoder works with most LED lights such as CCT, RGB, RGBW, RGBWW, RGBCCT LED strips or LED modules.

 5 Channel DMX Decoder 20A PWM dmx Dimmer Driver With Digital display&RDM function

  • It can be controlled through the DMX console, receive international DMX512 standard digital control signals, convert them into PWM controller signals to drive LED lights
  • RJ 45 network output/input interface design, easy to connect with DMX console and other DMX512 decoders.
  • Support RDM function: the address code of this decoder can be set on the DMX master
  • Each DMX decoder occupy 5 DMX address, each channel for 256 gray levels, dimming PWM output 0-100%,
  • 16bit (65536 levels) /8bit (256 levels) grey level selectable.
  • Logarithmic or linear dimming curve selectable.
  • It can easily control and change the light color/mode. Suitable for various scenarios. Such as home lighting systems, small churches, parties, stage performances, etc.

Packge Included:

  • 1 x 5CH DMX512 Decoder
  • 1 x User Manual
