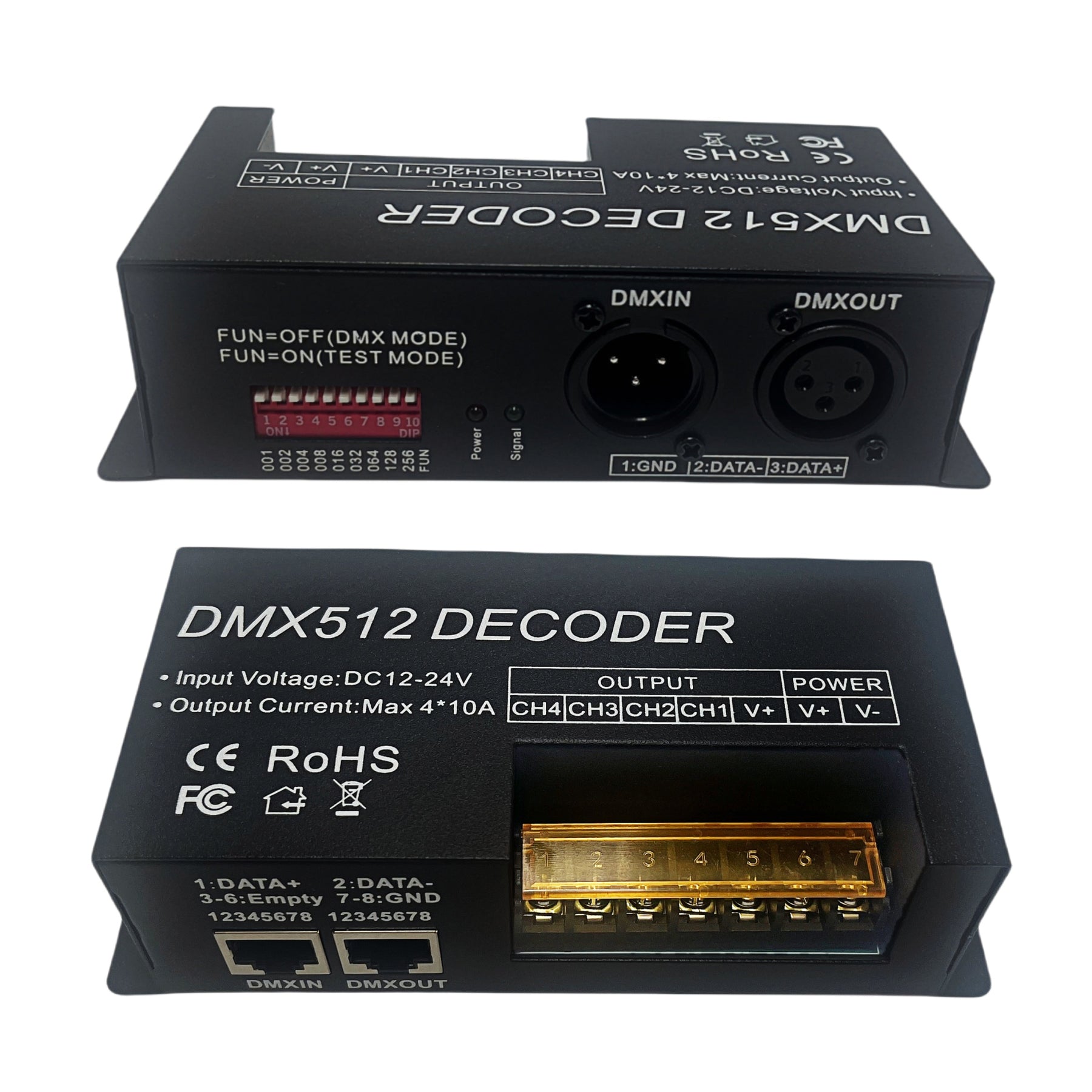

SF-4 Channel DMX Decoder

$25.99 USD $21.00 USD
/
  • In stock, ready to ship
  • Inventory on the way

🟢Receives standard DMX 512/1990 digital control signal and transformrd it into PWM signal to adjust LED Lights;
🟢Input Automatically adapt to DC12V-24V,And Output Max power load: 240W(12V); 480W (24V)
🟢The DMX address can be set through dip switch, You can connect with DMX digital console to achieve RGB dimming functions;

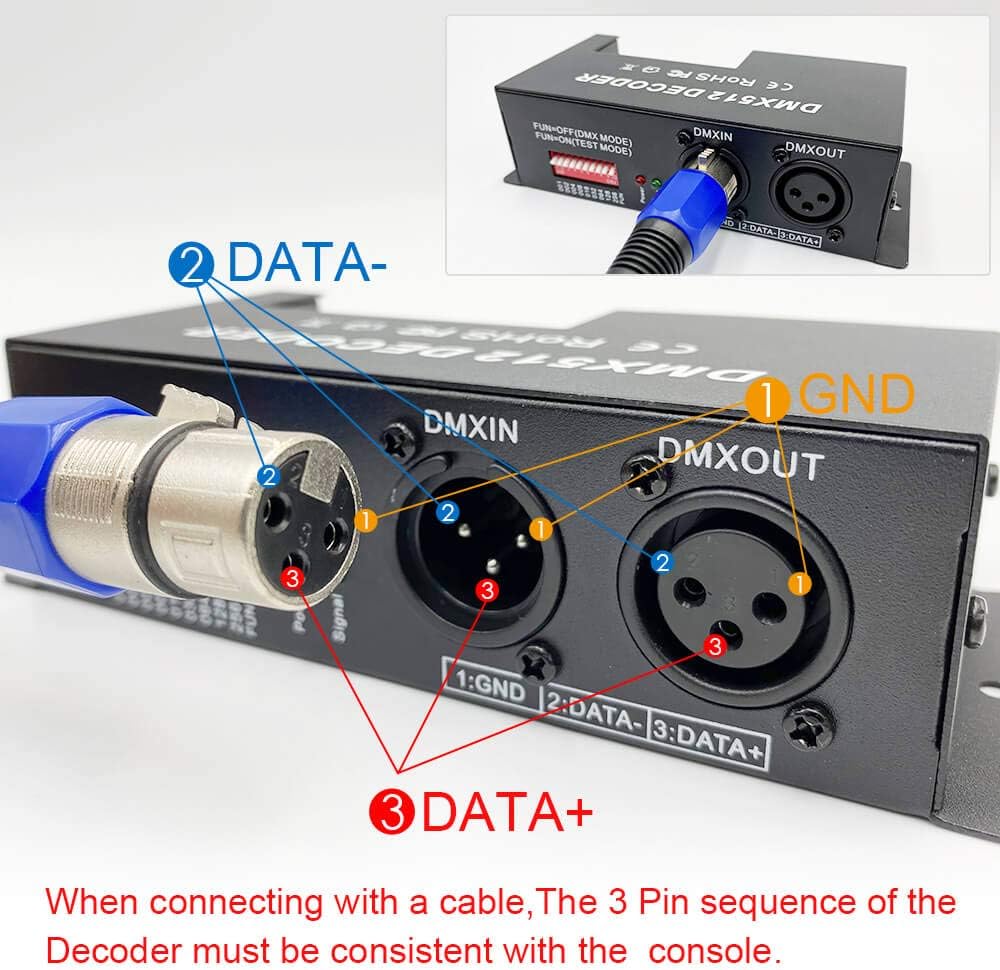

🟢Easy Use for 15 modes and 30 steps speeds for your options; signal interfaces XLR-3 and RJ45;
🟢High Power Output Max 20A For 5A Each Channel, Use for LED strip, LED module, LED light.

Type: RGBW
Input Voltage: DC 12-24V
Output Current: Max 5A/Channel
Output Gray Level: 256
Input Signal: DMX 512/1990
Output: RGBW 4 channels
Product Dimensions: 6.1 x 3.46 x 1.38 inches
Net Weight: 318g/0.7 lb

We offer a one-year limited warranty from the date of purchase.

🟢Receives standard DMX 512/1990 digital control signal and transformrd it into PWM signal to adjust LED Lights;
🟢Input Automatically adapt to DC12V-24V,And Output Max power load: 240W(12V); 480W (24V)
🟢The DMX address can be set through dip switch, You can connect with DMX digital console to achieve RGB dimming functions;
🟢Easy Use for 15 modes and 30 steps speeds for your options; signal interfaces XLR-3 and RJ45;
🟢High Power Output Max 20A For 5A Each Channel, Use for LED strip, LED module, LED light.

4 Channel DMX Decoder RGBW PWM DMX512 Dimmer Driver RGBW LED Strip Light Controller Input 12V-24V DC

4 Channel DMX512 Decoder

GIDERWEL 4 Channels RGBW Constant DMX Decoder Operation:

  • Welcome to use the 4 CH constant decoder, which take advantage of advanced microelectronic control technology.
  • This technology changes the international fashion,DMX512/1990 standard digital control signals into analog control signals.
  • There're 1 ~ 4 output channels; each channelcan achieve 256 control levels.
  • This constant decoder is used when DMX512 control equipment control general LED lighting.

Basic functions:

  • There are 4 output channels, can connect with single or RGB lamps;
  • 0-100% dimming output, each channel 256 gray levels;
  • International standard DMX512 input protocol, address code set by DIP switches;
  • Wide voltage DC input DC12V ~ DC24V; Each Decoder occupied by 4 DMX address.

Package included:

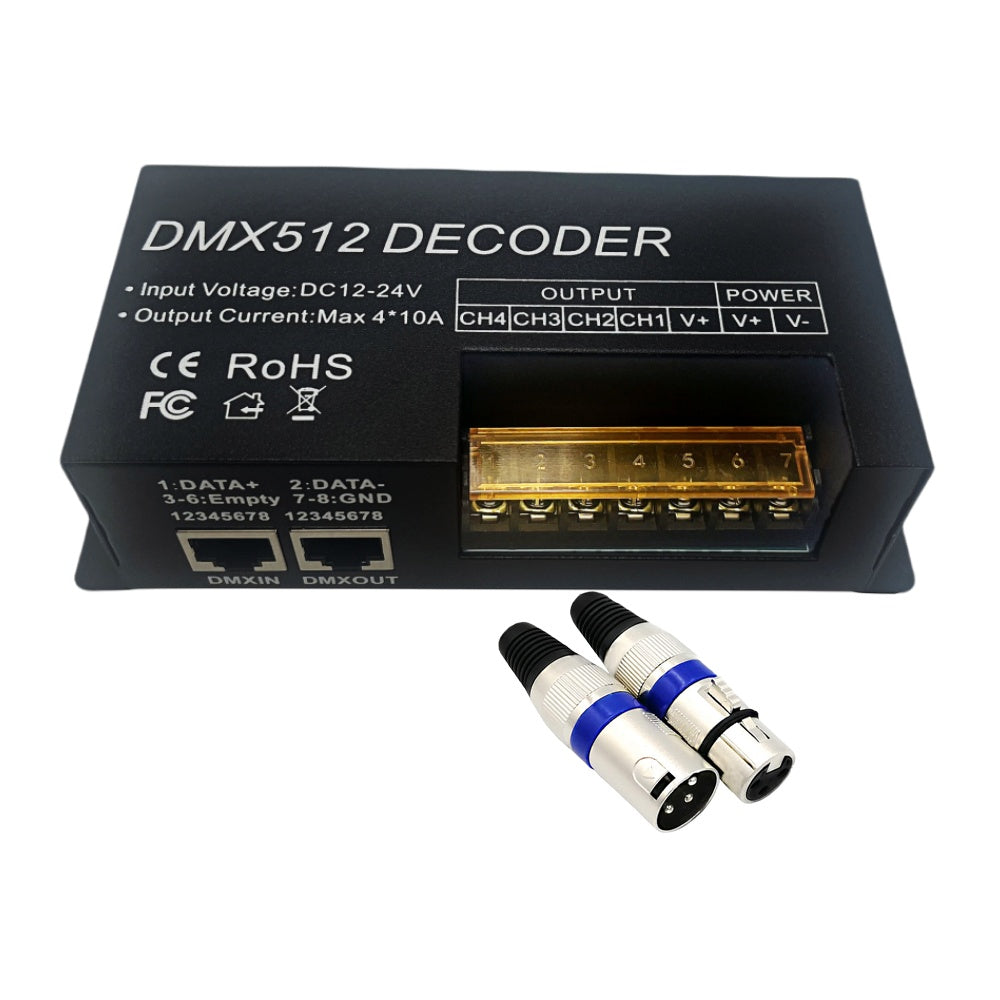

  • 1 x 4 CH DMX Decoder
  • 2 x Standard XLR-3 Caron Plug
  • 1 x User Manual

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

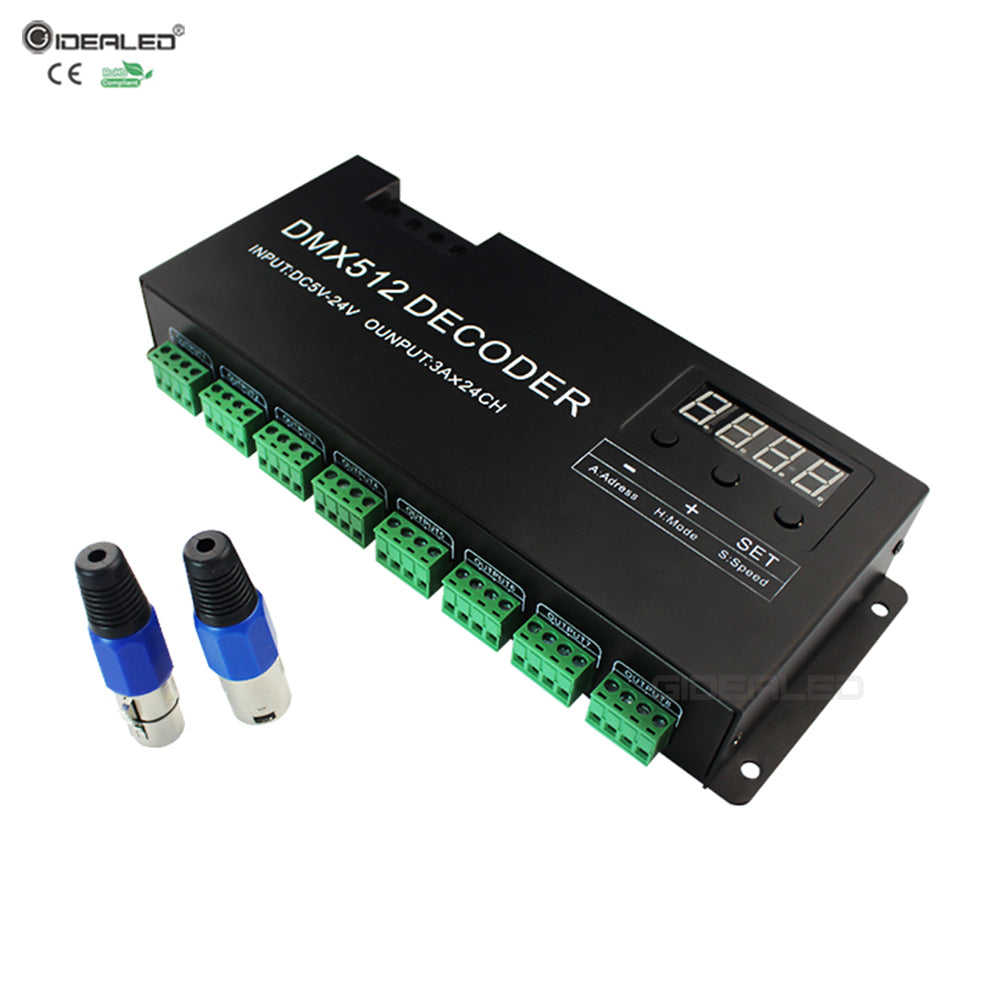

Next: 24CH DMX Decoder with Digital display for LED Lights
