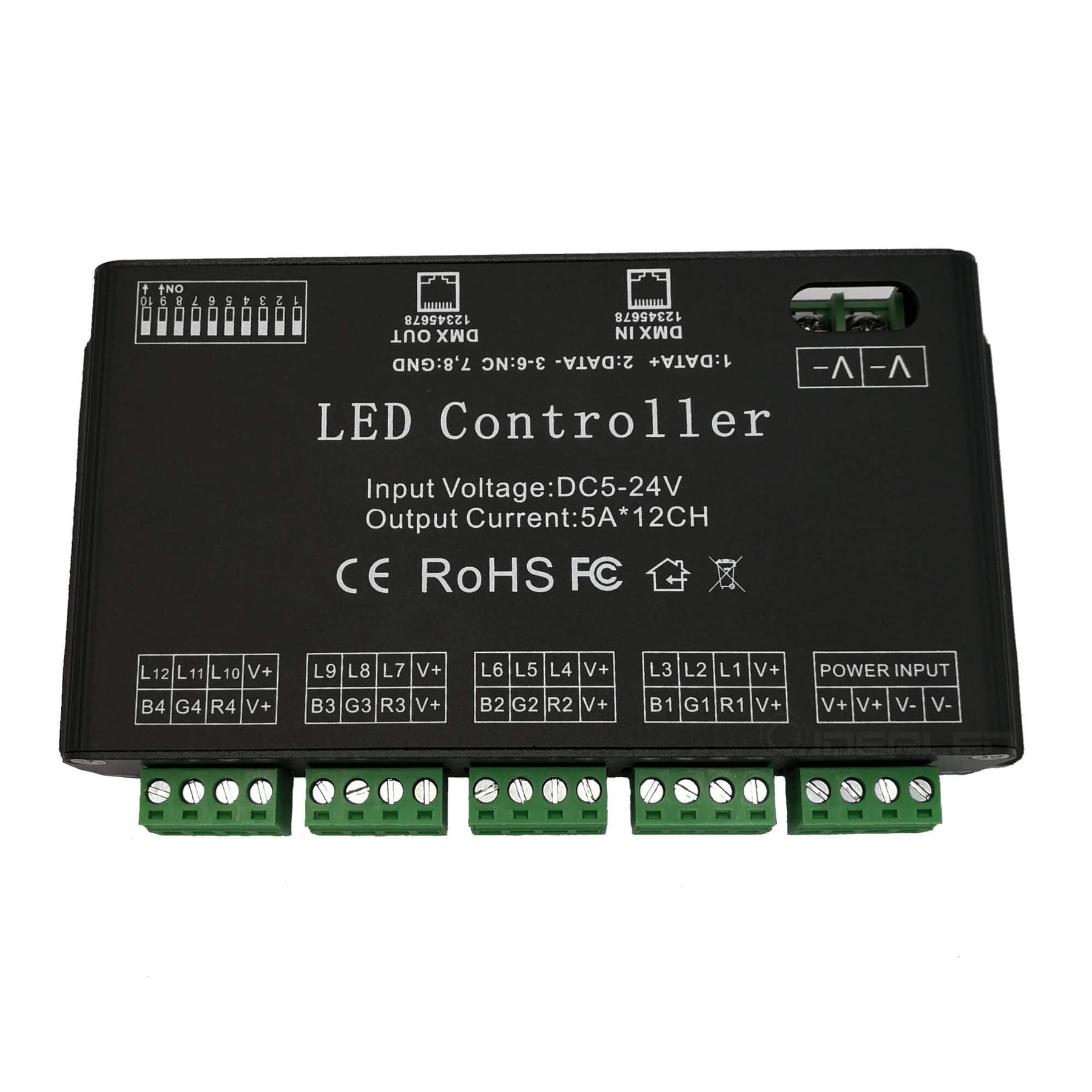

SF-12CHDMX

$45.99 USD $35.96 USD
/
  • In stock, ready to ship
  • Inventory on the way

12 Channel DMX Decoder RGB LED Controller 60A PWM DMX512 Dimmer Driver for RGB RGBW LED Strip and LED Module Light Input DC12V-24V
🟢Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights;
🟢Automatically adapt to DC5V-24V, Maximum power load: 300W (5V); 720W(12V); 1440W (24V)
🟢Aluminium housing,And High Power Output Max 60A For 5A Each Channel (5A*12 CH)

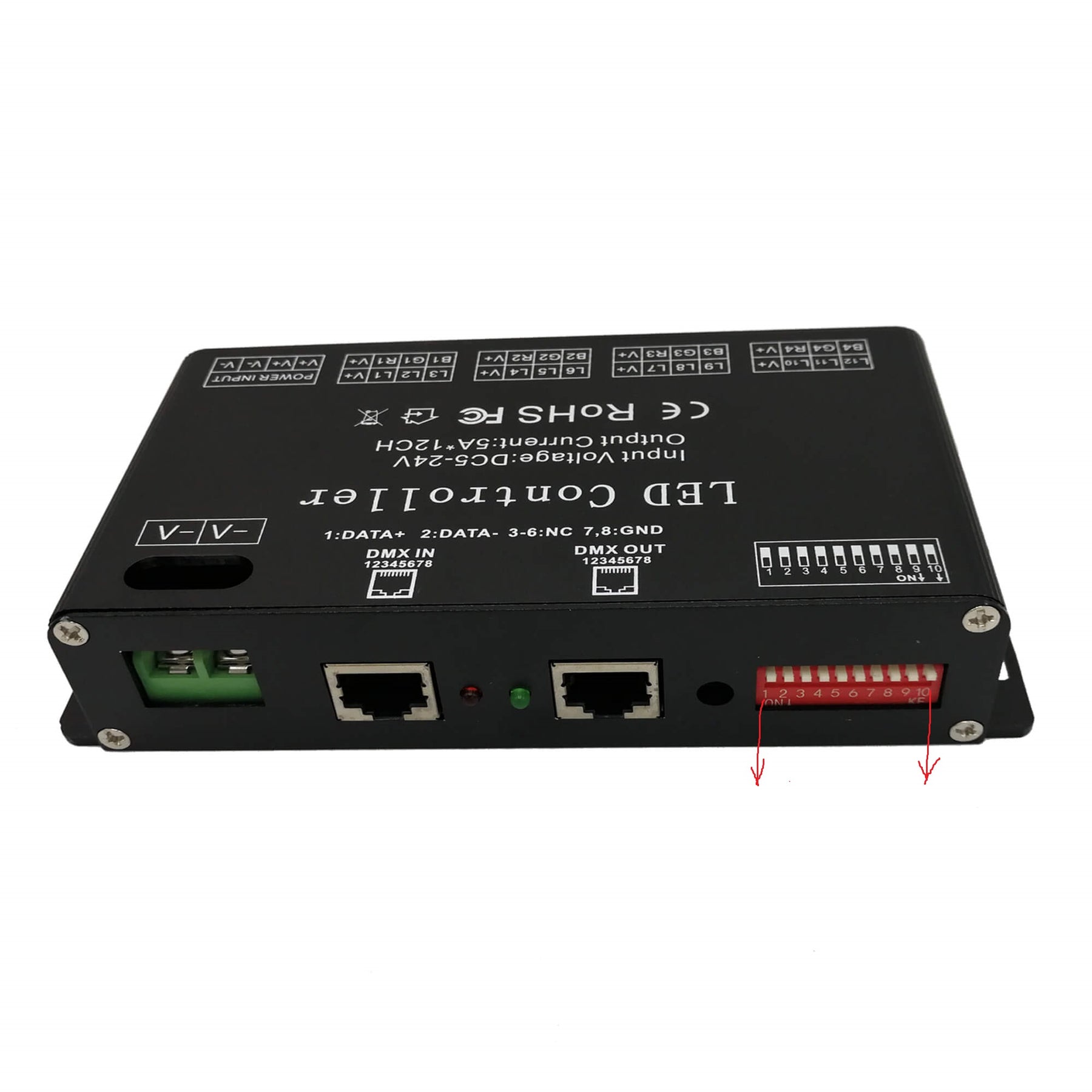

🟢DMX address can be set through dip switch, you can connect with DMX digital console to achieve RGB dimming functions;

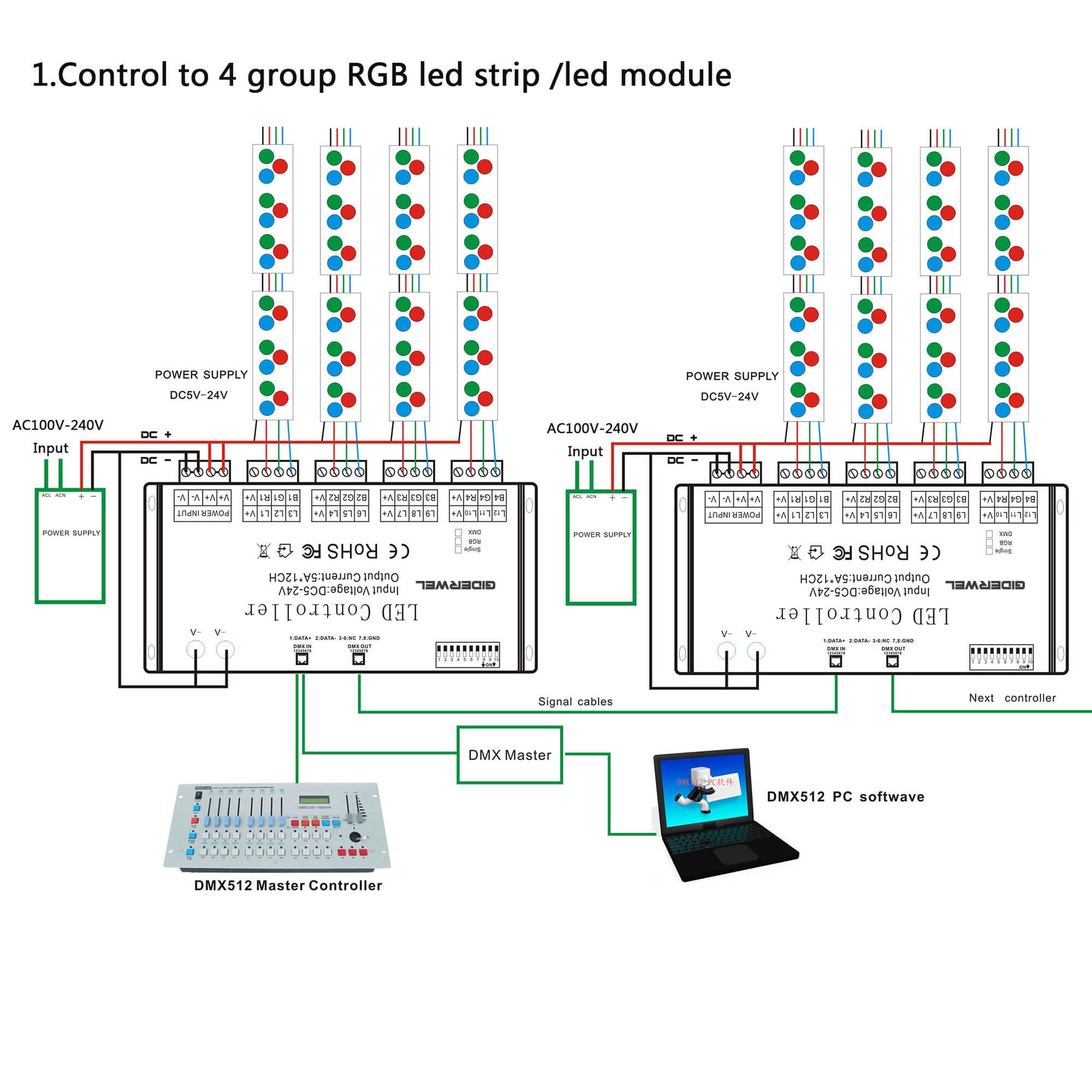

🟢Easy Use for 4 Group RGB LED Strip, LED module And LED lights.

Type: RGB
Input Voltage: DC 5-24V
Output Current: Max 5A/Channel
Input signal: DMX512/1990
Output: RGB 12 channels

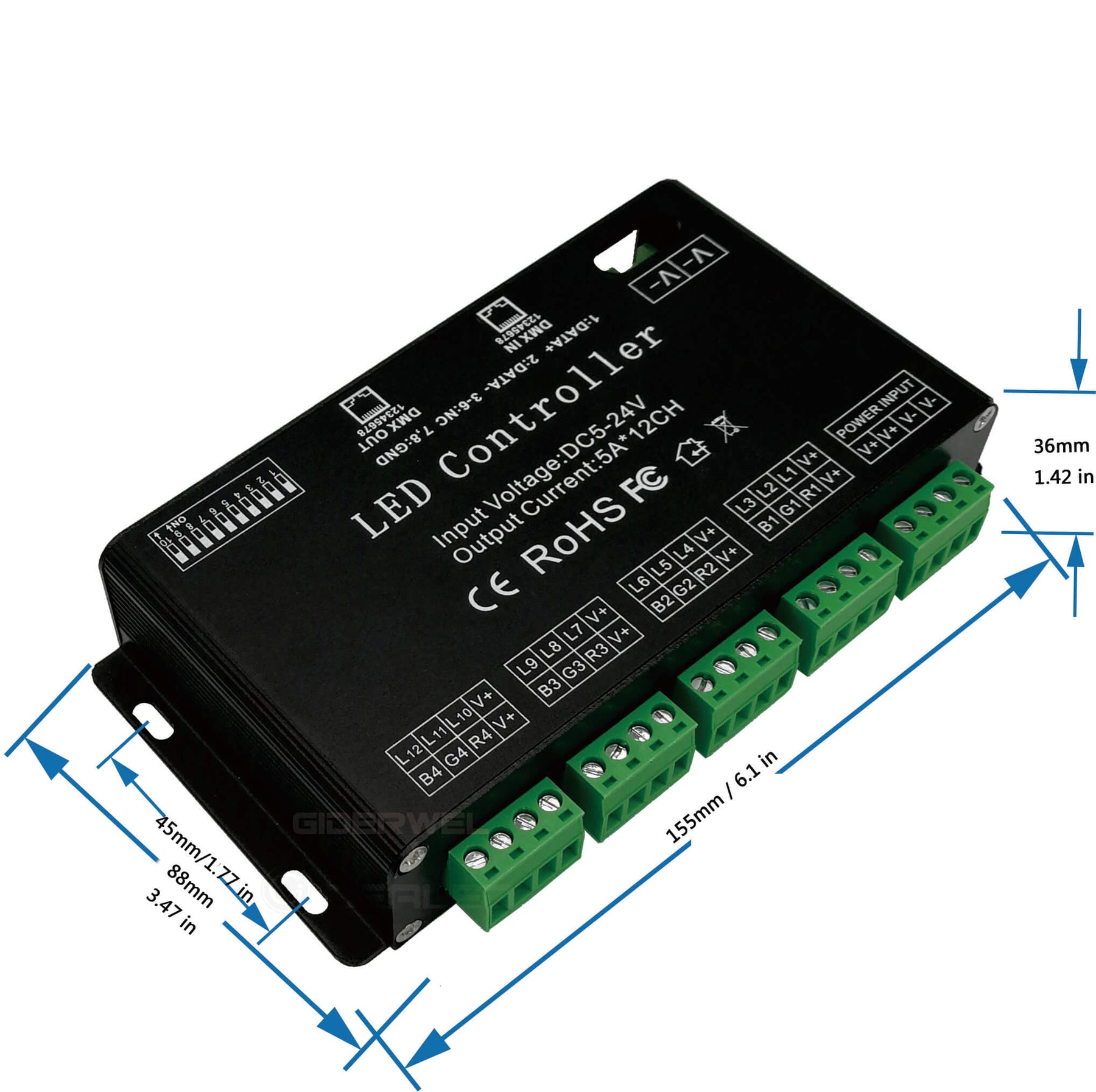

External dimension: L155×W88×H36(mm)

We offer a one-year limited warranty from the date of purchase.

12 Channel DMX Decoder RGB LED Controller 60A PWM DMX512 Dimmer Driver for RGB RGBW LED Strip and LED Module Light Input DC12V-24V
🟢Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights;
🟢Automatically adapt to DC5V-24V, Maximum power load: 300W (5V); 720W(12V); 1440W (24V)
🟢Aluminium housing,And High Power Output Max 60A For 5A Each Channel (5A*12 CH)
🟢DMX address can be set through dip switch, you can connect with DMX digital console to achieve RGB dimming functions;
🟢Easy Use for 4 Group RGB LED Strip, LED module And LED lights.

12 Channel DMX Decoder

12 Channel DMX512 Decoder Introduction:

  • Welcome to use the 12CH constant decoder, which take advantage of advanced microelectronic control technology.
  • This technology changes the international fashion,DMX512/1990 standard digital control signals into analog control signals.
  • There are 1 ~ 12 output channels; each channel can achieve 256 control levels.
  • This constant decoder is used when DMX512 control equipment control general LED lighting.

Basic functions:

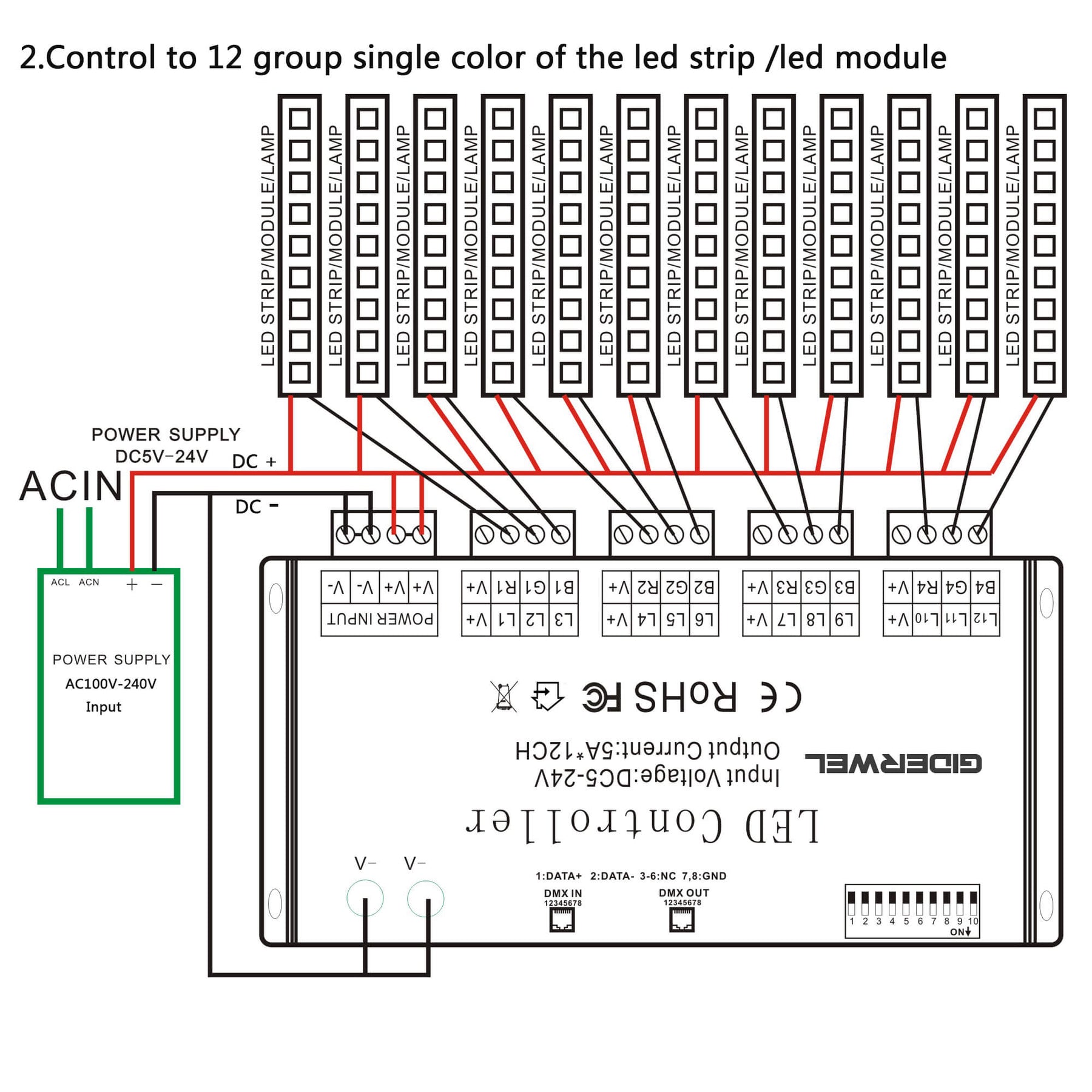

  • There are 12 output channels, can connect with single or RGB lamps;
  • 0-100% dimming output, each channel 256 gray levels;
  • International standard DMX512 input protocol, address code set by DIP switches;
  • Wide voltage DC input DC5V ~ DC24V; Each Decoder occupied by 12 DMX address.

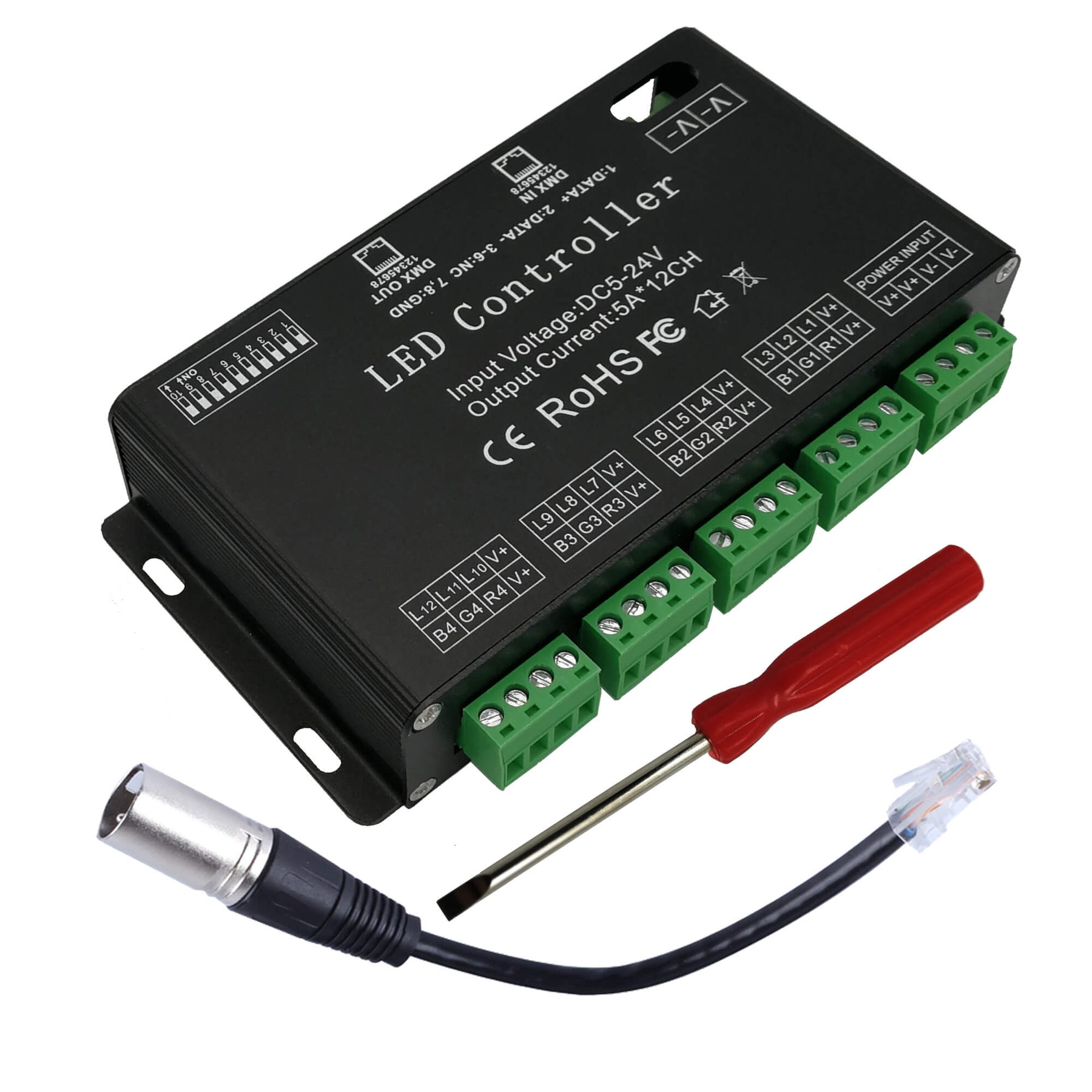

Package include:

  • 1 x 12CH DMX512 Decoder
  • 1 x User Manual

    This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

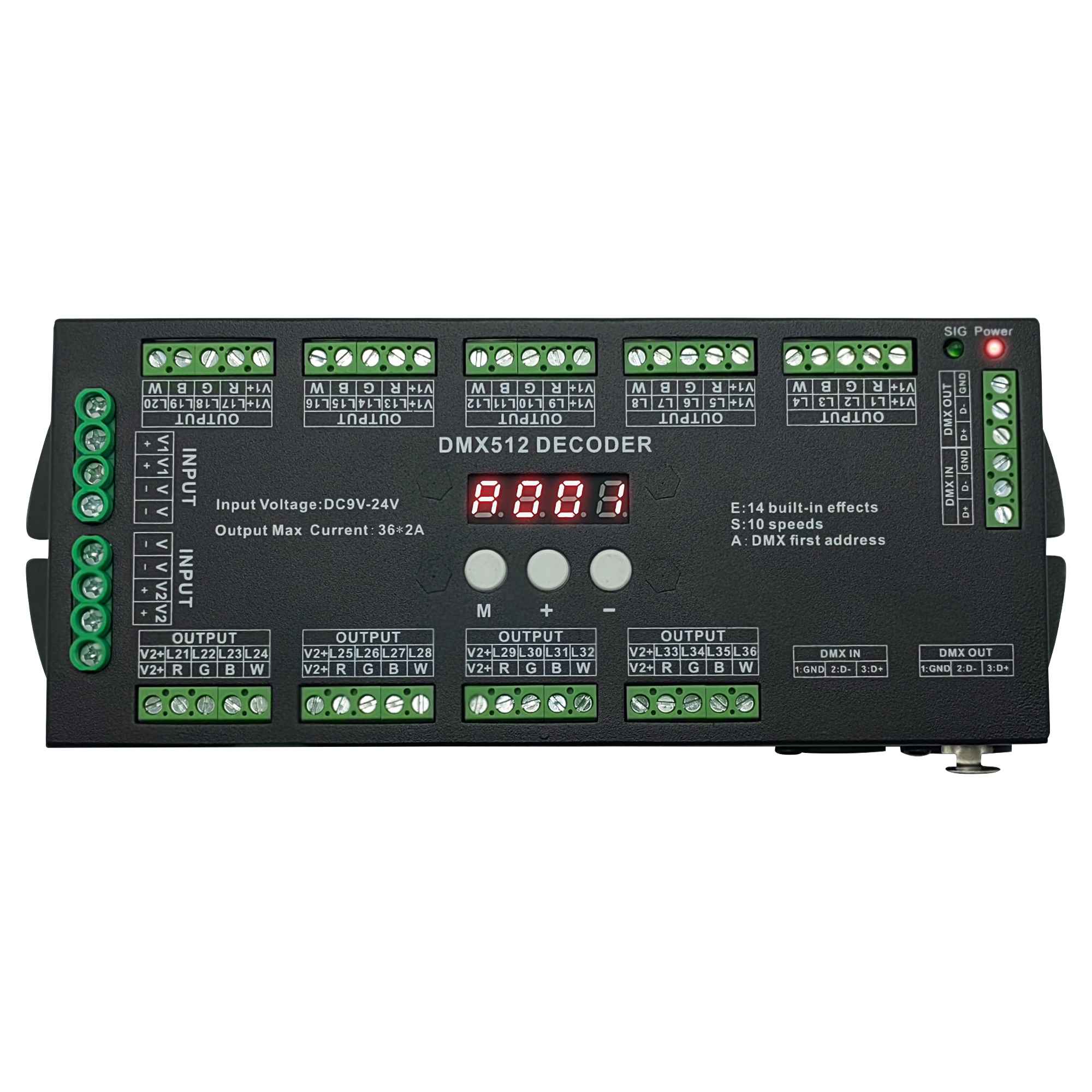

    Next: 36 CH DMX Decoder with Digital display for RGB/RGBW LED strips
