• Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights;
• Automatically adapt to DC5V-24V,Maximum power load: 300W (5V) ;720W(12V);1440W (24V)
• Aluminium housing,And High Power Output Max 60A For 5A Each Channel (5A*12 CH)

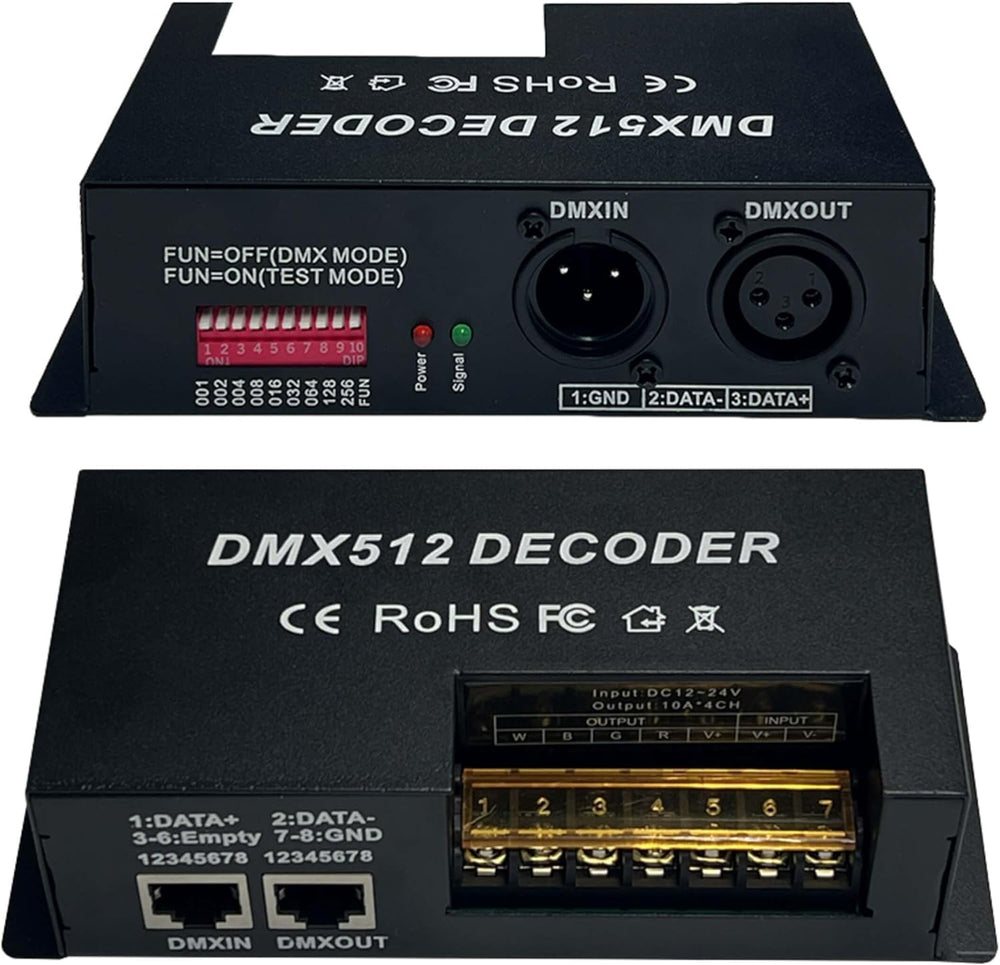

• The DMX address can be set through dip switch,And You could connect with DMX digital console to achieve RGB dimming functions;
• Easy Use for 4 Group RGB LED Strip,LED module And LED lights

• Receives standard DMX 512/1990 digital control signal and transformrd it into PWM signal to adjust LED Lights;
• Input Automatically adapt to DC12V-24V,And Output Max power load:240W(12V);480W (24V)
• The DMX address can be set through dip switch,And You could connect with DMX digital console to achieve RGB dimming functions;
• Easy Use for 15 modes and 30 steps speeds for your options;signal interfaces XLR-3 and RJ45;
• High Power Output Max 20A For 5A Each Channel,Use for LED strip,LED module,LED light.

GIDERWEL 30 Channel DMX Decoder 60A PWM DMX512 Dimmer LED Driver PWM Controller for DC12V-24V LED Strip Light Control

• Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights;
• High Power Output To Max Current 60A For 2A Each Channel;And each channel with an indicator light;
• Automatically adapt to DC12V-24V,Max power load:720W(12V);1440W (24V)
• The DMX address can be set through dip switch,And You could connect with DMX digital console to achieve RGB dimming functions;
• Easy Use for 15 modes and 30 steps speeds for your options;signal interfaces XLR-3 and RJ45.

       30 Channel DMX512 Decoder Introduction:

• Welcome to use the 30 channels constant decoder, which take advantage of       advanced microelectronic control technology.
• This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.
• There're 1 ~ 30 output channels; each channelcan achieve 256 control levels.
• This constant decoder is used when DMX512 control equipment control general LED lighting.

       Products Performance:

• 1.Maximum load current: 2A×30CH
• 2.Maximum power load: 720W(12V) 1440W(24V)
• 3.Output gray level: 256
• 4.Input Signal: DMX512/1990
• 5.Output signal: 30 channels Constant PWM
• 6.Output DMX : 30 channels
• 7.Input power:DC9V-24V
• 8.Connecting mode: common anode

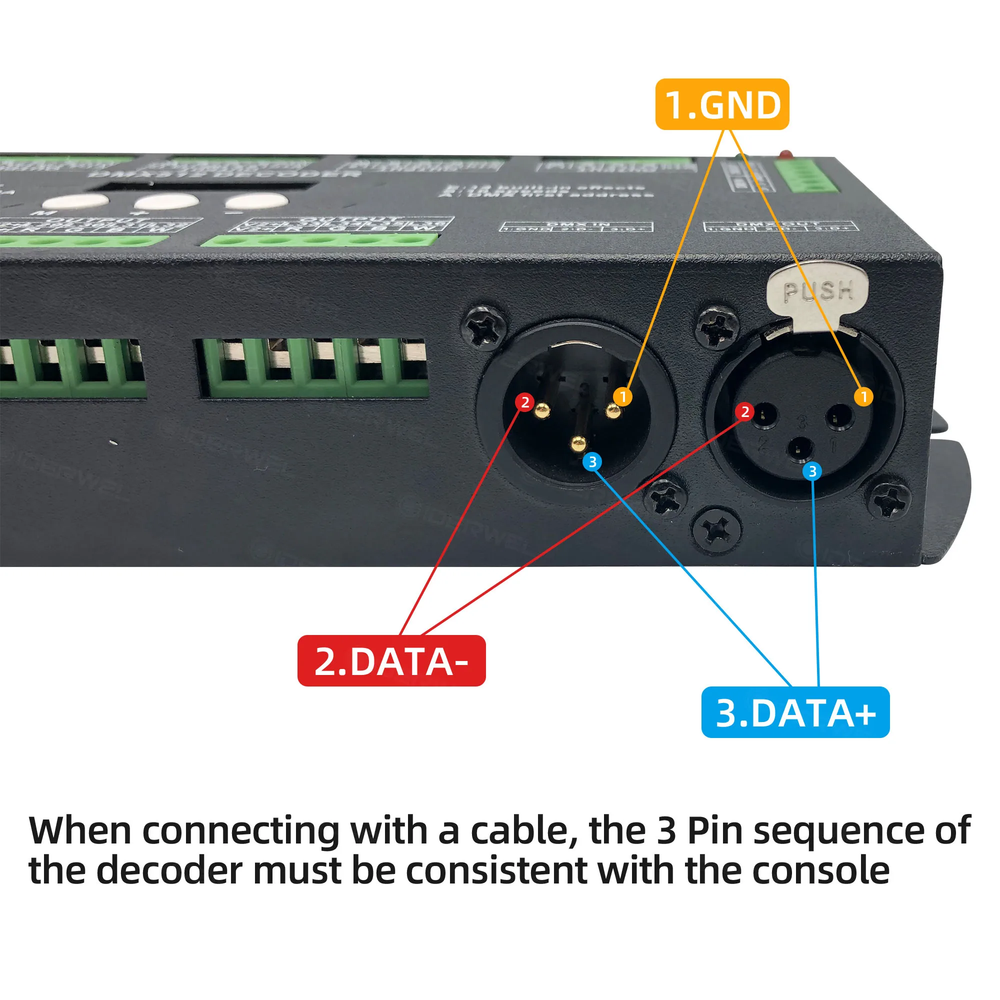

• DMX512 socket standard RJ45; Ethernet port and standard XLR-3 plug

      Package include:

• 1 x DMX Decoder
• 2 x XLR-3 plug
• 1 x Screwdriver
• 1 x instruction book

      Basic functions:

• There are 30 output channels, can connect with single or RGB lamps 0-100% dimming output, each channel 256 gray levels
• International standard DMX512 input protocol, address code set by DIP switches; Wide voltage DC input DC9V ~ DC24V;
• Each Decoder occupied by 30 DMX address.

• Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights;
• High Power Output To Max Current 60A For 2A Each Channel;And each channel with an indicator light;
• Automatically adapt to DC12V-24V,Max power load:720W(12V);1440W (24V)
• The DMX address can be set through dip switch,And You could connect with DMX digital console to achieve RGB dimming functions;
• Easy Use for 15 modes and 30 steps speeds for your options;signal interfaces XLR-3 and RJ45.

      30 Channel DMX512 Decoder Introduction:

• Welcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology.
• This technology changes the international fashion,DMX512/1990 standard digital control signals into analog control signals.
• There're 1 ~ 30 output channels; each channelcan achieve 256 control levels.
• This constant decoder is used when DMX512 control equipment control general LED lighting.

       Basic functions:

• There are 30 output channels, can connect with single or RGB lamps;
• 0-100% dimming output, each channel 256 gray levels;
• International standard DMX512 input protocol, address code set by DIP switches;
• Wide voltage DC input DC9V ~ DC24V; Each Decoder occupied by 30 DMX address.

     Products Performance:

      Output DMX : PCBA 30 Channel

      Maximum load current: 2A×30CH

      Maximum power load: 720W(12V) 1440W(24V)

      Output gray level: 256

      Input Signal: DMX512/1990

      Output signal: 30 channels Constant PWM

      Input power:DC9V-24V

      Connecting mode: common anode

      DMX512 socket standard RJ45; Ethernet port and standard XLR-3 plug

       Package include:

• 1 x DMX Decoder
• 2 x XLR-3 plug
• 1 x Screwdriver

24 channel RGB LED DMX 512 Decoder 24CH * 3 Dimmer PWM Driver DMX Decoder Led RGB Strip DMX512 With RJ45 Input DC5V-24V Decoder

Product Description:
1.This DMX decoder adopts advanced computer control chip,can receive the
    international DMX -512 standard digital control signals and converted into PWM
    controller signal to drive the LED.
2.It can be controlled by the DMX Console,and can connected with numbers of DMX
    Decoder to increase the output power to realize all kinds of changing mode.
3.This DMX decoder can be used as the synchronous controller to controlled the LED
   alone,it can realize the synchronous effects.
4.This decoder adopt the digital tube to show the address code,and with 3 buttons to
    setting,make it more easy to used.

Specification:
● Working temperature: -20-60 ℃
● Supply voltage: DC5～24V
● External dimension: L249×W105×H43mm
● Packing size: 270*130*45mm
● Gross weight: 930g
● Static power consumption: <1W
● Output current: 3A *24
● Output power: 5V:<360W 12V:<864W, 24V:<1728W
● DMX512standard:DMX512/1990
● Channel: 24
● Accessory: XLR*2pcs
● DMX Input/output interface:RJ45

Autions:

1, This products Input voltage is DC5~24V,other input voltage are not allowed.

2, Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.

3, Overload are prohibited.

24 channel RGB DMX 512 Decoder With Digital Display 72A Dimmer PWM Driver RGB Strip Controller DMX With RJ45 Input DC5V-24V
