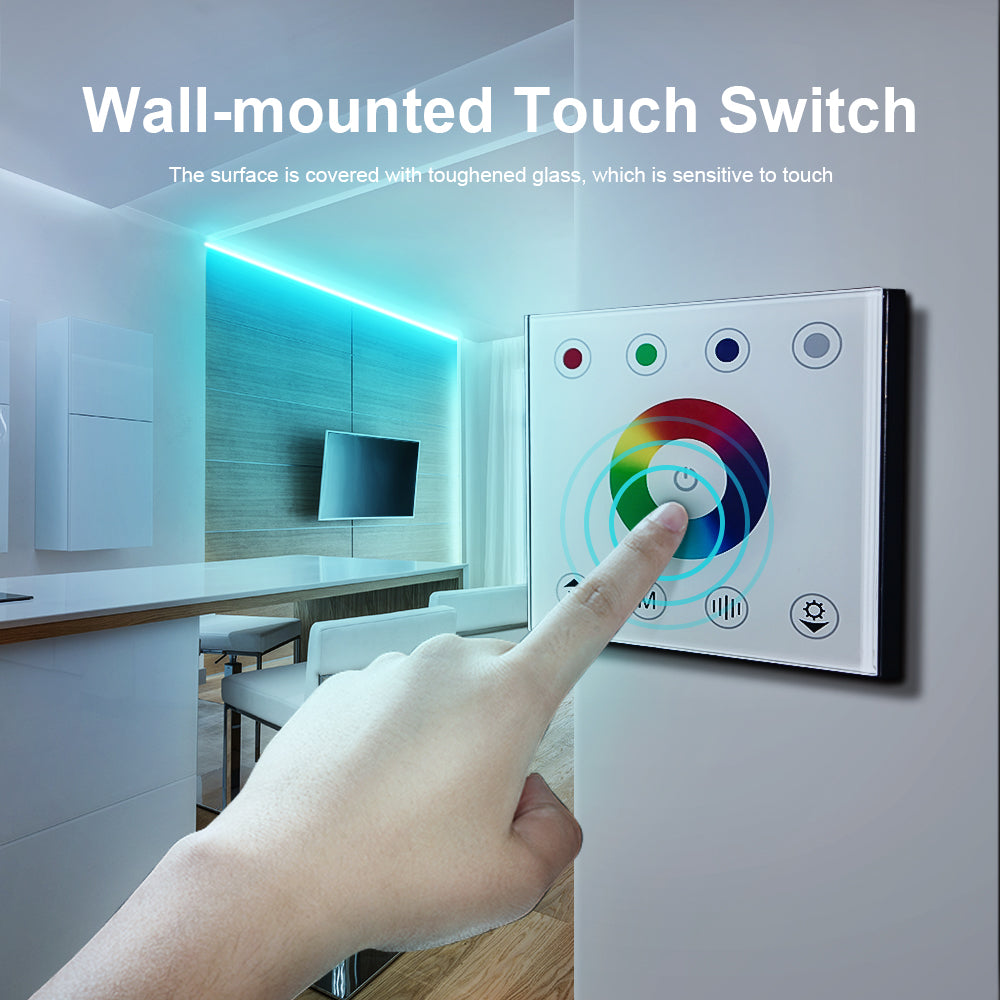

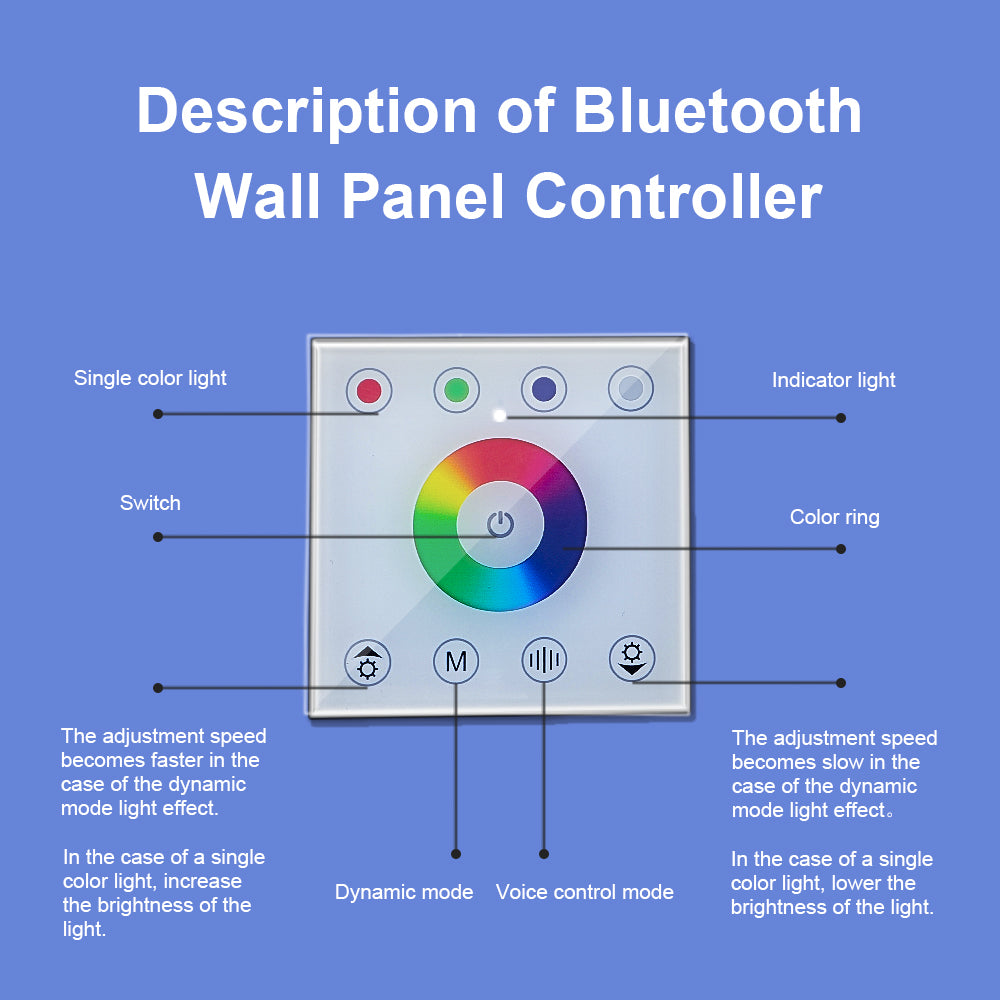

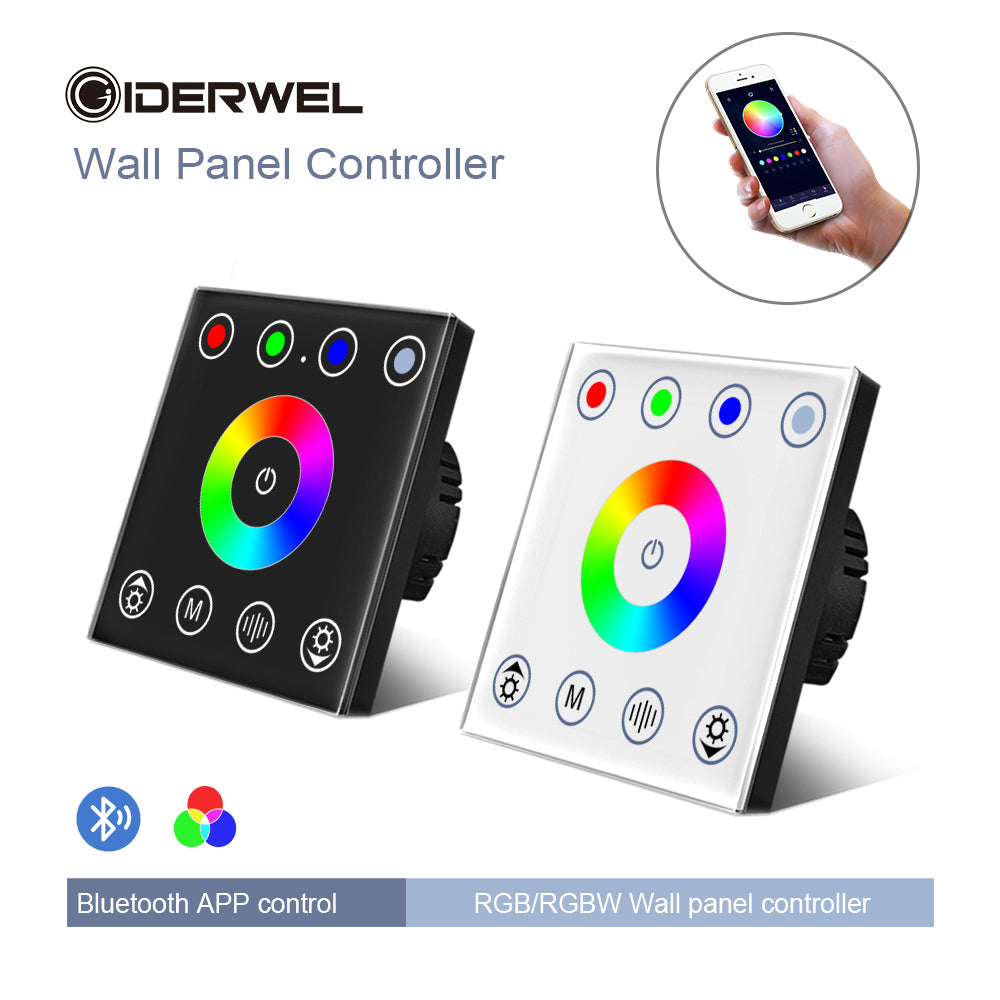

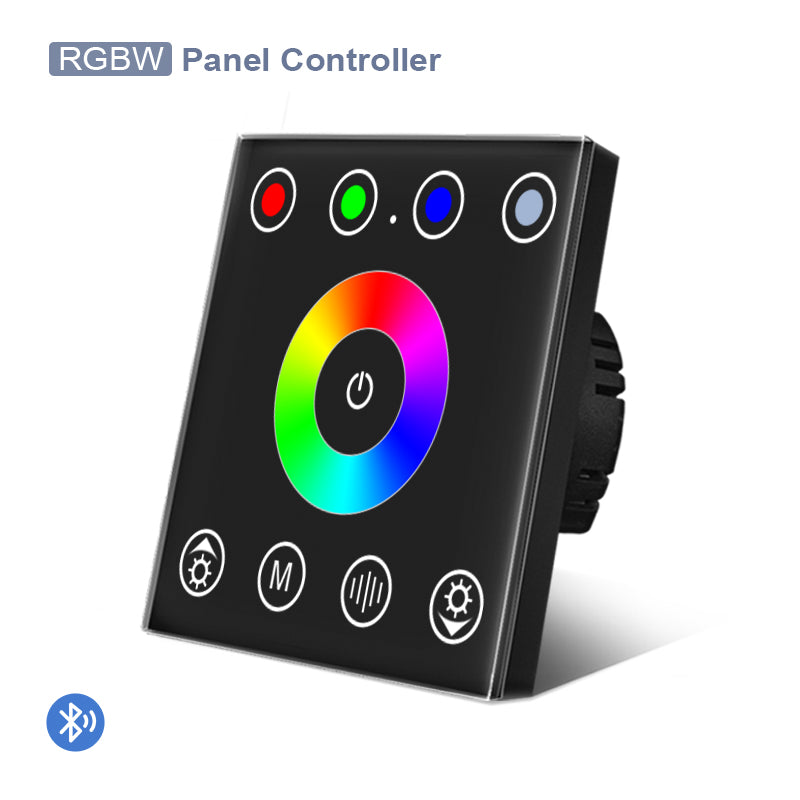

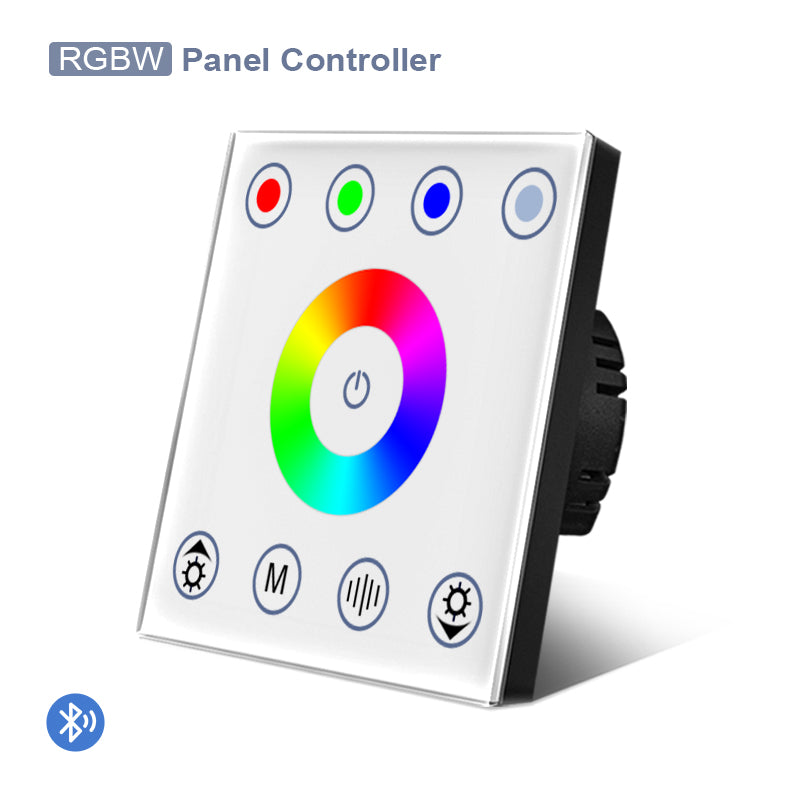

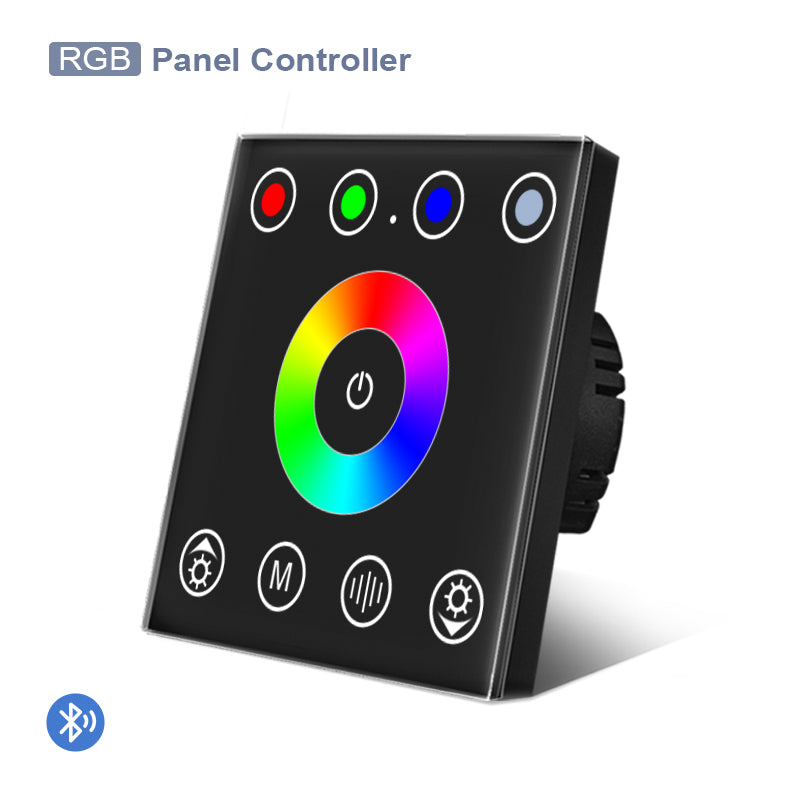

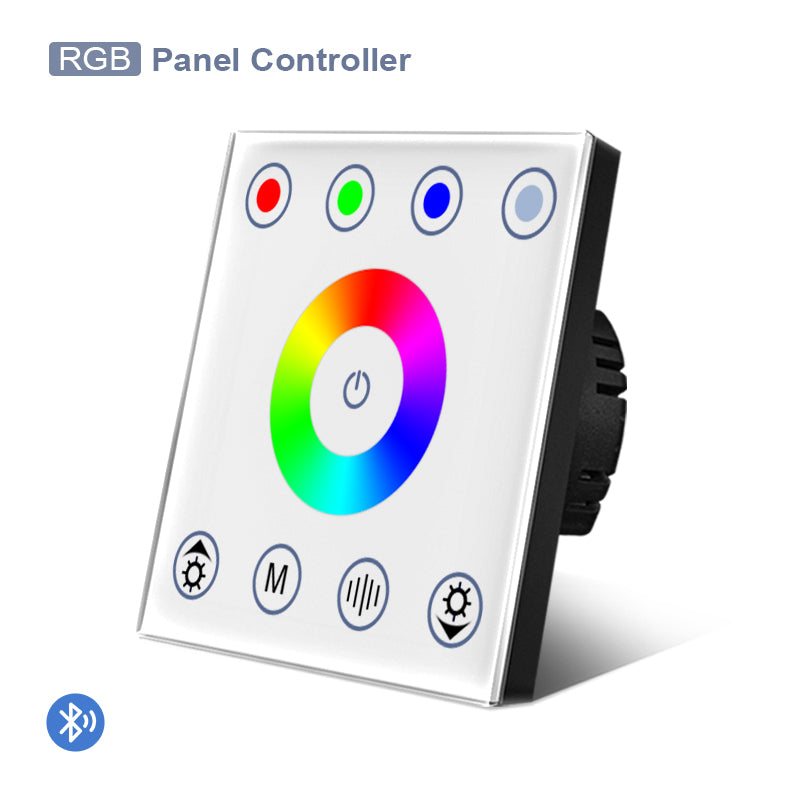

Bluetooth RGB/RGBW Wall Mounted Touch Glass Panel Controller Dimmer Switch Controller for DC12V-24V LED Strip LightSpecification:
- Four outputs, each 4A, total load up to 16A
- Input voltage: DC12V-24V
- Maximum output power: 192W (12V), 384W (24V)
- Connection method: Bluetooth
- Static power consumption: <1W
- Product size (mm): 86*86*35
- Packing size (mm): 109*95*60
- Net weight: 120g
- Gross weight: 189g
Notice
The working voltage is DC12～24V, and power supply with suitable load is required. (Do not directly connect to the indoor power supply)
Connect the load line first, then the power line, and make sure that there is no short circuit between the input and output cables before turning on the power.
Packing list
- LED Panel Controller *1
- Manual *1

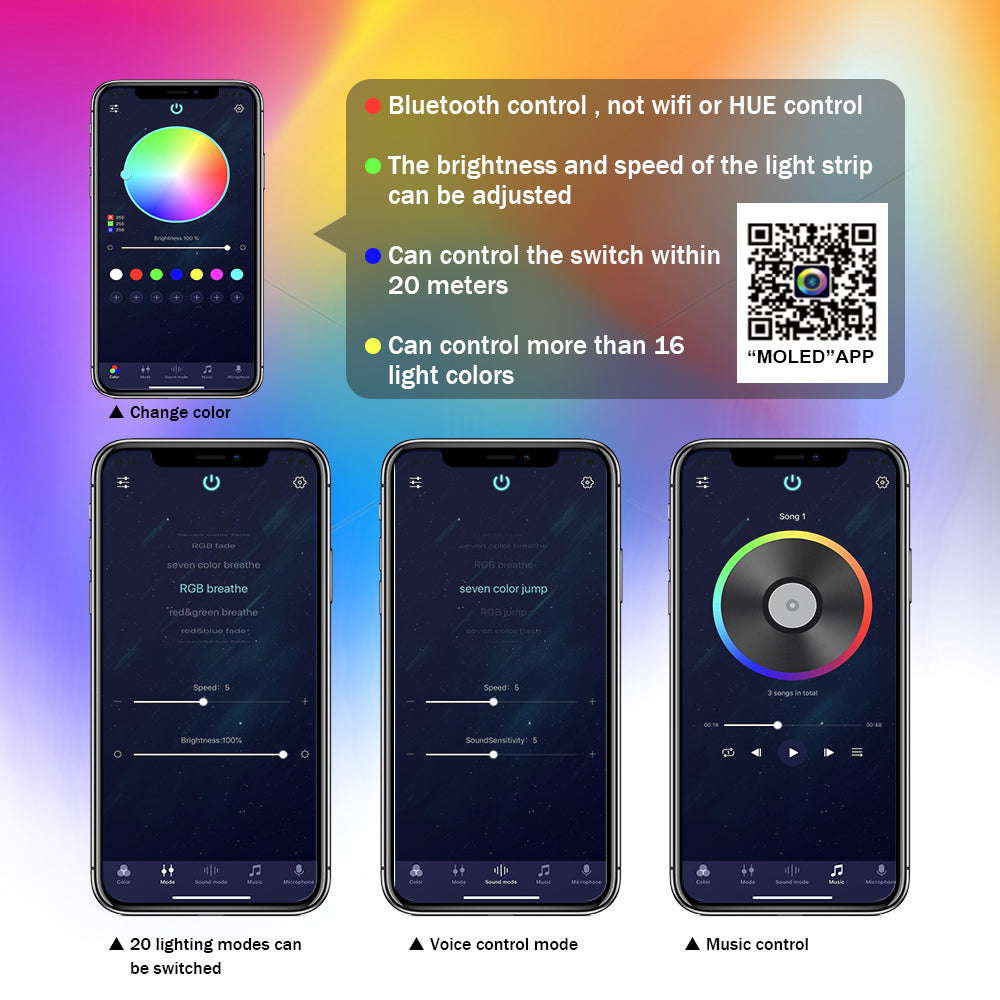

APP introduction：
- Support Android 4.4 or above, IOS 10.0 or above, Bluetooth 4.0 or above
- Download and install MOLED from Apple APP Store, Google Play or scan the QR code.
- Turn on the Bluetooth of the mobile phone first, and then open the MOLED APP, the MOLED APP will find the new device, click OK to complete the connection. Do not manually connect the controller from the Bluetooth settings, otherwise the APP cannot be used.
- Custom color: click to add custom color, long press to cancel custom color
Dynamic Mode List：
|
No |
MODE |
|
No |
MODE |
|
01 |
Sevencolor fade |
11 |
RGB flash |
|
|
02 |
RGB fade |
12 |
Red flash |
|
|
03 |
Sevencolor breathe |
13 |
Green flash |
|
|
04 |
RGB breathe |
14 |
Blue flash |
|
|
05 |
Red& green breathe |
15 |
Yellow flash |
|
|
06 |
Red& blue fade |
16 |
Purple flash |
|
|
07 |
Green& blue fade |
17 |
Cyan flash |
|
|
08 |
Seven color jump |
18 |
White flash |
|
|
09 |
RGB jump |
19 |
Yellow& purple flash |
|
|
10 |
Seven color flash |
20 |
Purple& cyan flash |
