$59.99 USD
/
  • Em estoque
  • Inventory no caminho

🟢Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights.
🟢High Power Output To Max Current 60A For 2A Each Channel And each channel with an indicator light.
🟢Automatically adapt to DC12V-24V ,Max power load: 720W(12V); 1440W (24V).

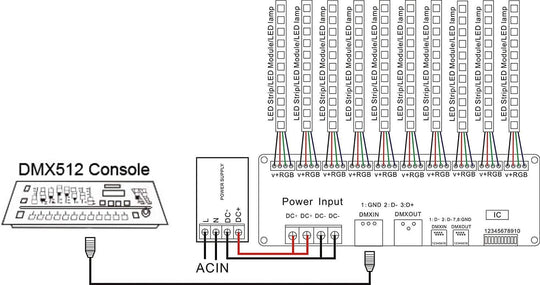

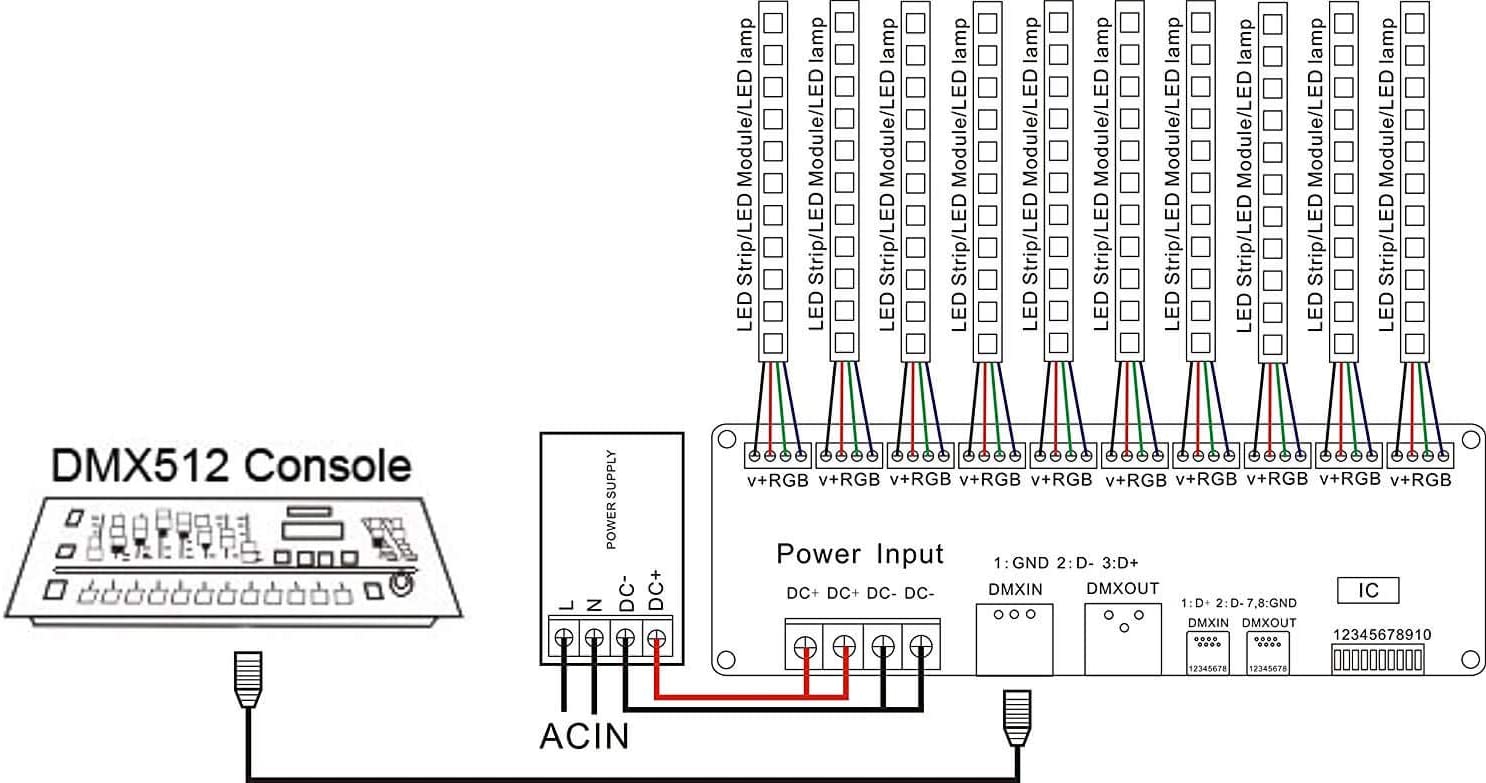

🟢The DMX address can be set through dip switch, You can connect with DMX digital console to achieve RGB dimming functions.
🟢Easy Use for 15 modes and 30 steps speeds for your options; signal interfaces XLR-3 and RJ45.

Type: RGB
Input Signal: DMX512/ 1990
Output DMX: 30 channels Constant PWM
Output Gray Level: 256

Input Voltage: DC 9-24V
Max Load Current: 2A×30CH
Max Power Load: 720W(12V); 1440W(24V)
Connecting Mode: Common anode

DMX512 Socket:
- Ethernet port;
- Standard RJ45;
- Standard XLR-3 plug

We offer a one-year limited warranty from the date of purchase.

🟢Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED Lights.
🟢High Power Output To Max Current 60A For 2A Each Channel And each channel with an indicator light.
🟢Automatically adapt to DC12V-24V ,Max power load: 720W(12V); 1440W (24V).
🟢The DMX address can be set through dip switch, You can connect with DMX digital console to achieve RGB dimming functions.
🟢Easy Use for 15 modes and 30 steps speeds for your options; signal interfaces XLR-3 and RJ45.

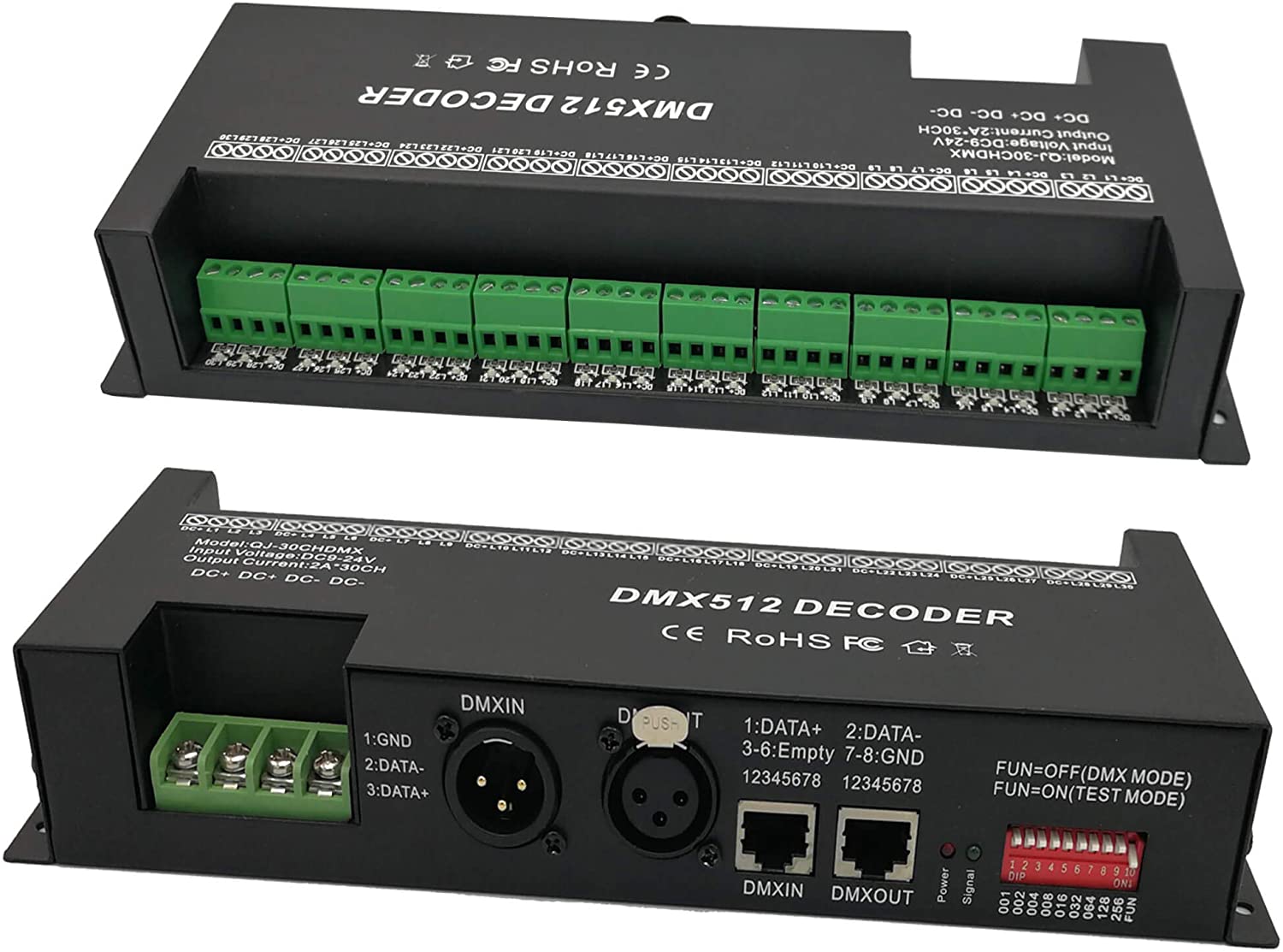

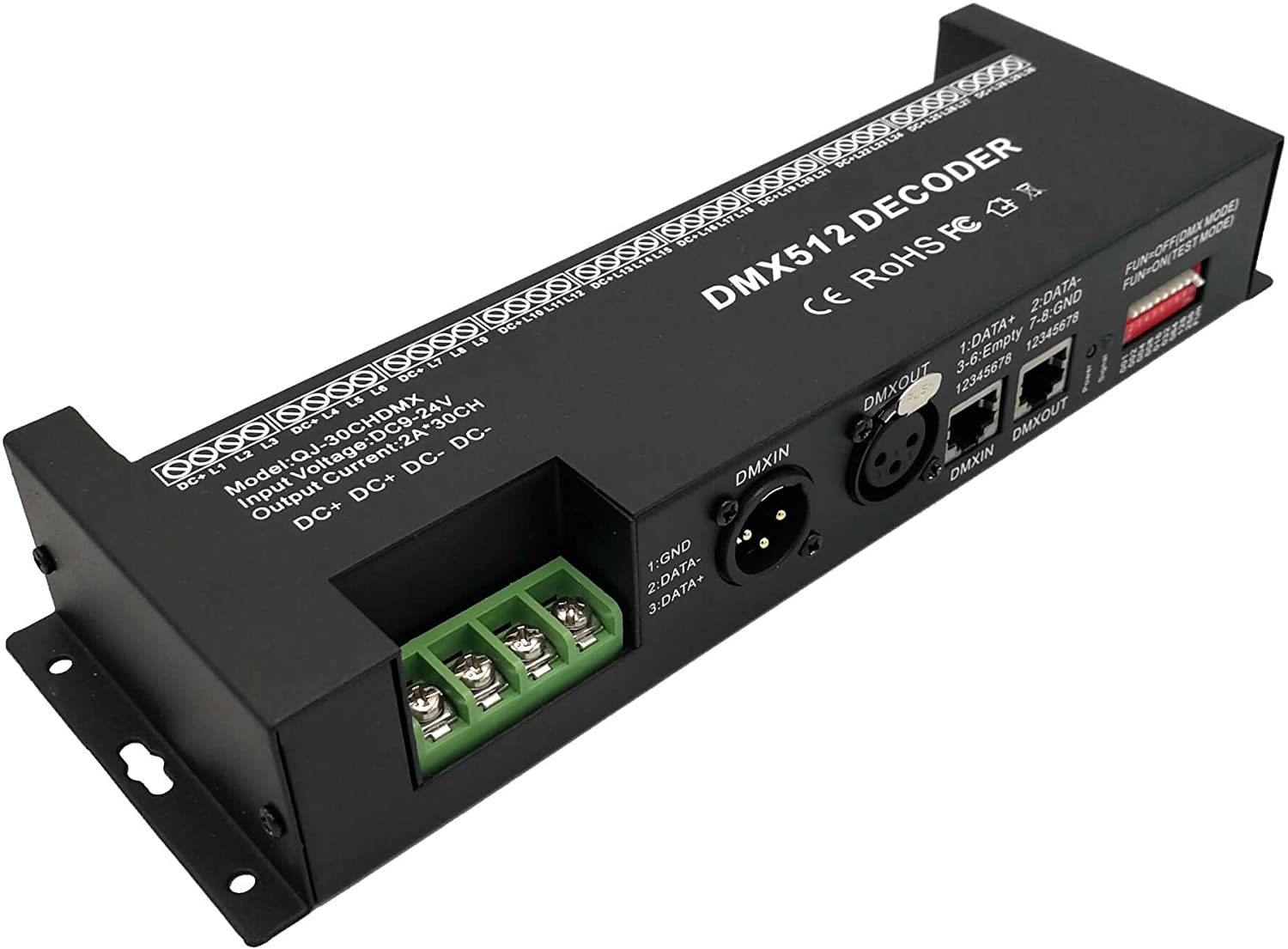

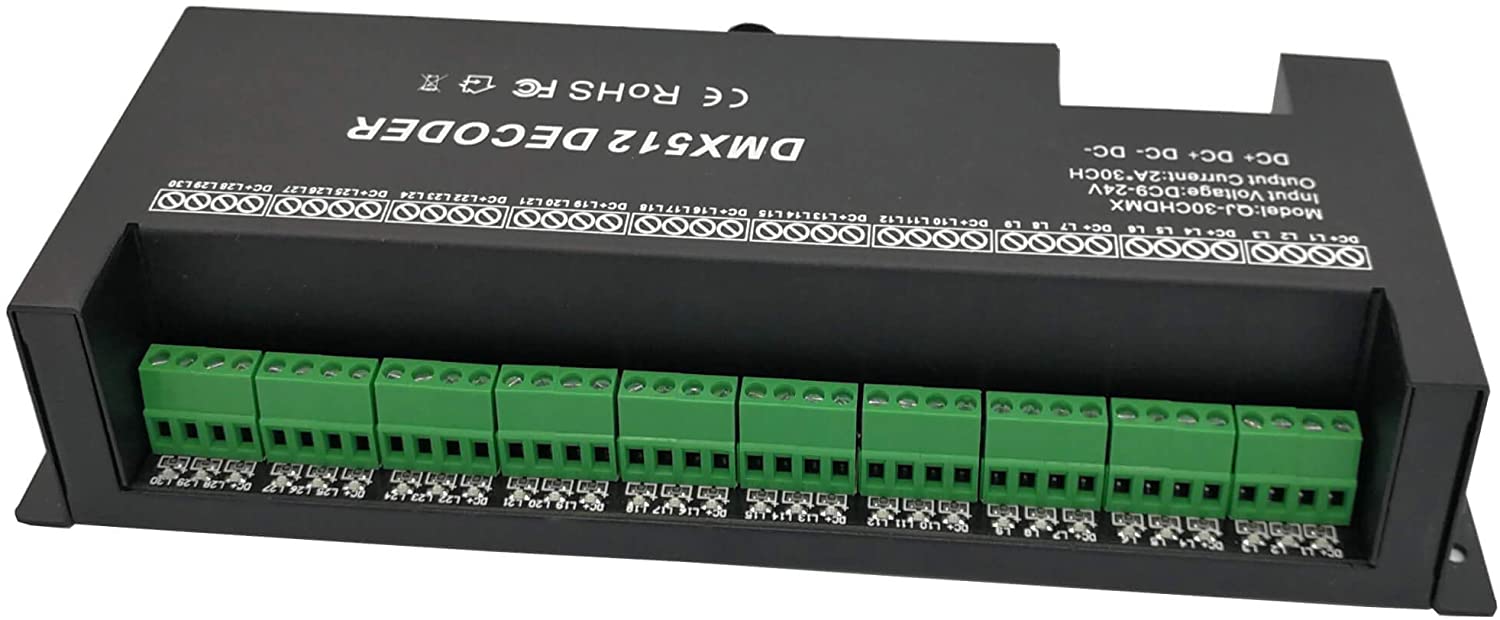

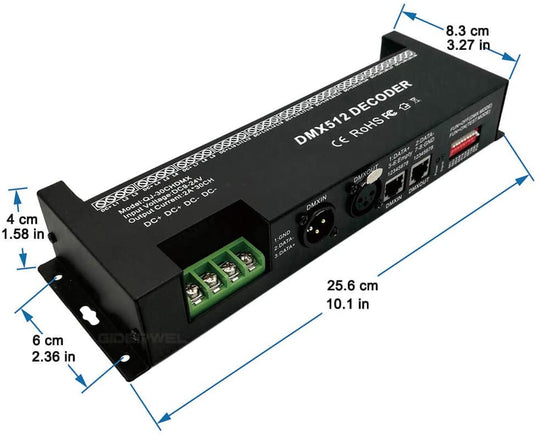

GIDERWEL 30 Channel DMX Decoder 60A PWM DMX512 Dimmer LED Driver PWM Controller for DC12V-24V LED Strip Light Control

30 Channel DMX512 Decoder Introduction:

  • Welcome to use the 30 channels constant decoder, which take advantage of       advanced microelectronic control technology.
  • This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.
  • There're 1 ~ 30 output channels; each channelcan achieve 256 control levels.
  • This constant decoder is used when DMX512 control equipment control general LED lighting.

Basic functions:

  • There are 30 output channels, can connect with single or RGB lamps 0-100% dimming output, each channel 256 gray levels
  • International standard DMX512 input protocol, address code set by DIP switches; Wide voltage DC input DC9V ~ DC24V;
  • Each Decoder occupied by 30 DMX address.

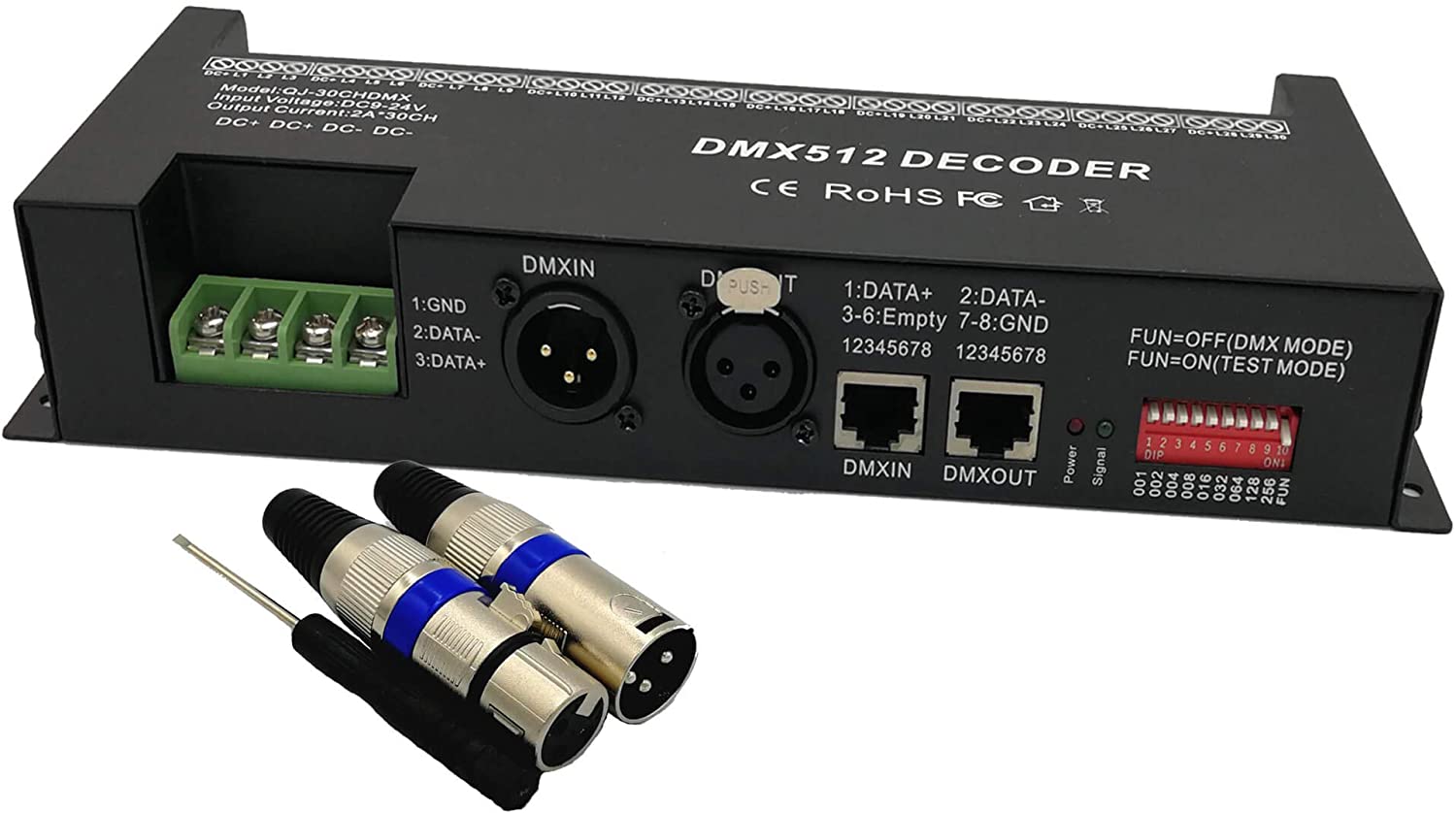

Package include:
  • 1 x DMX Decoder
  • 2 x XLR-3 plug
  • 1 x Screwdriver
  • 1 x instruction book
