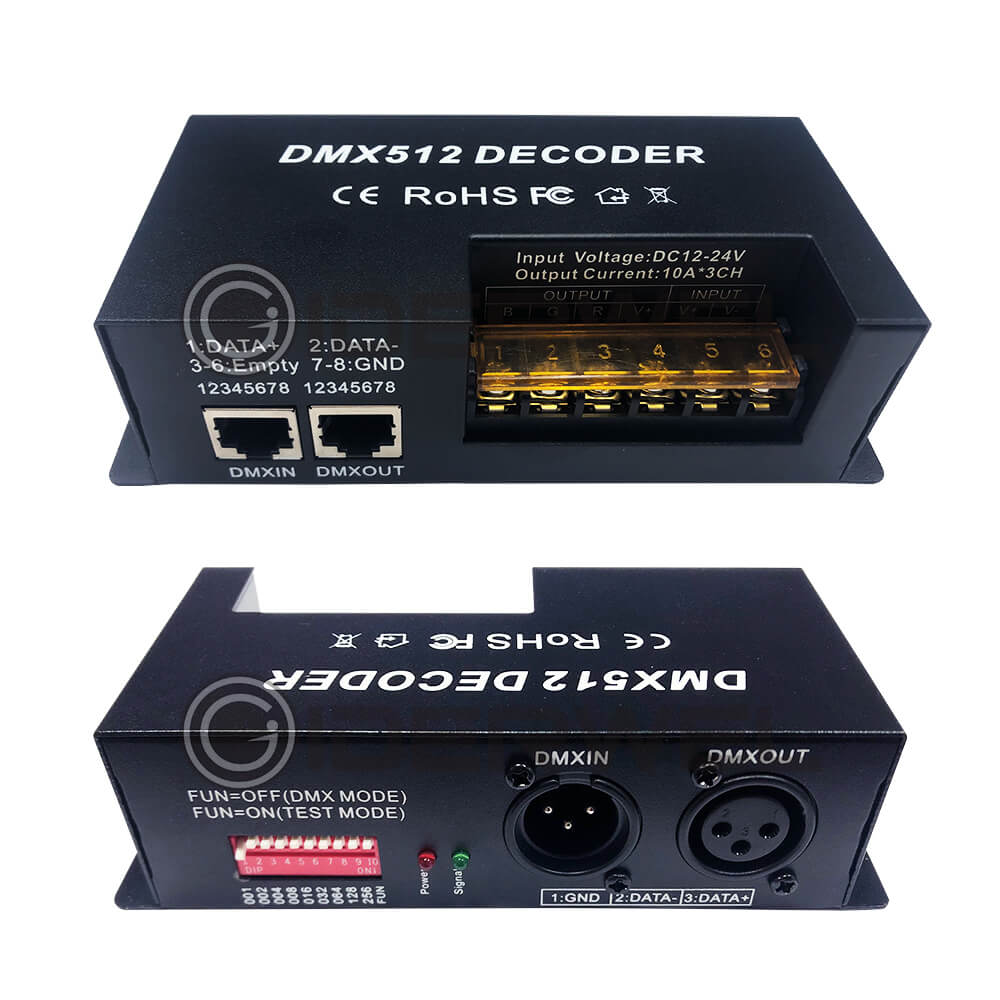

3 Channel dmx decoder rgb led strip controller DMX 512 PWM dimmer driver 30A input DC12V-24V 3CH dmx decoder light control
Product specification:
1.3 channels output current:10A*3CH
2.Input power::DC12V-24V
3.Connecting mode: common anode
4.Output Power: 360W (12V) ;720W (24V)
5.15A terminals, safe and reliable

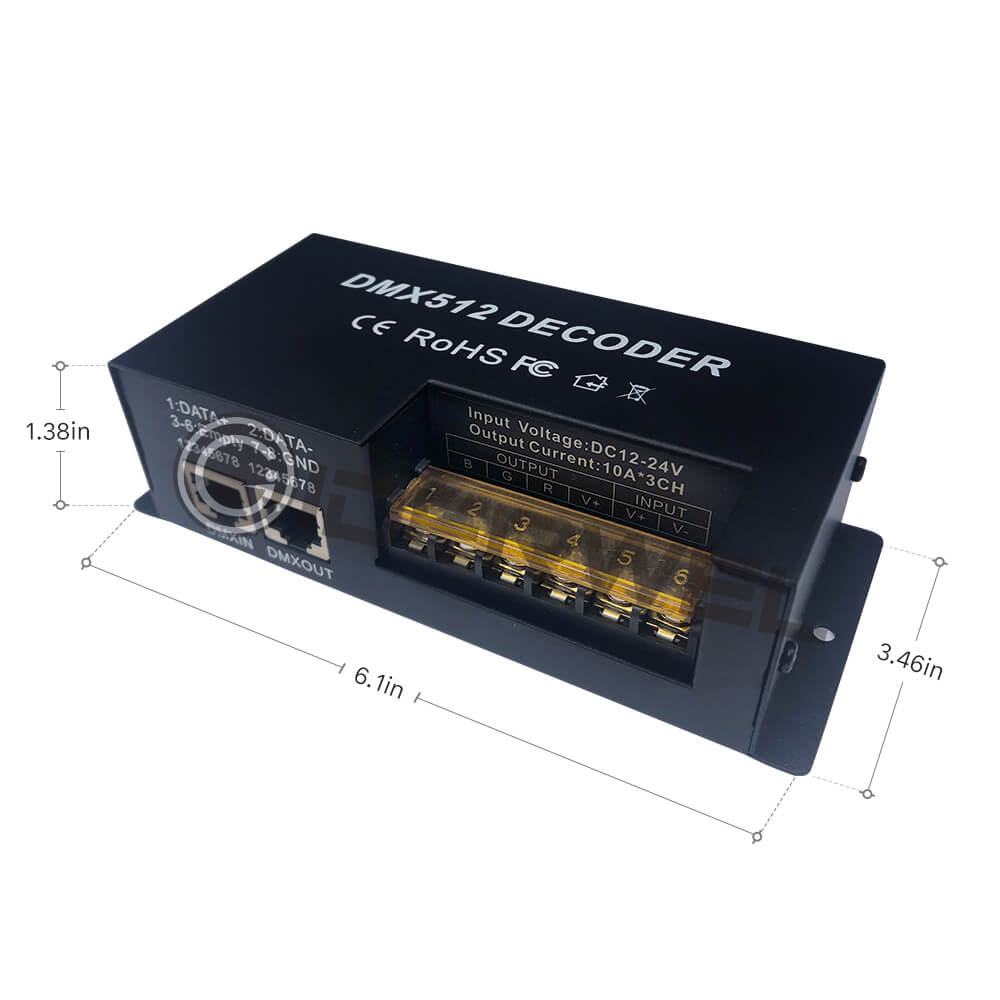

6.Cover Size:155*88*32mm Packaging size:160*90*50mm
7.Aluminium alloy cover, heat eliminable
8.Weight:360g
Package included:

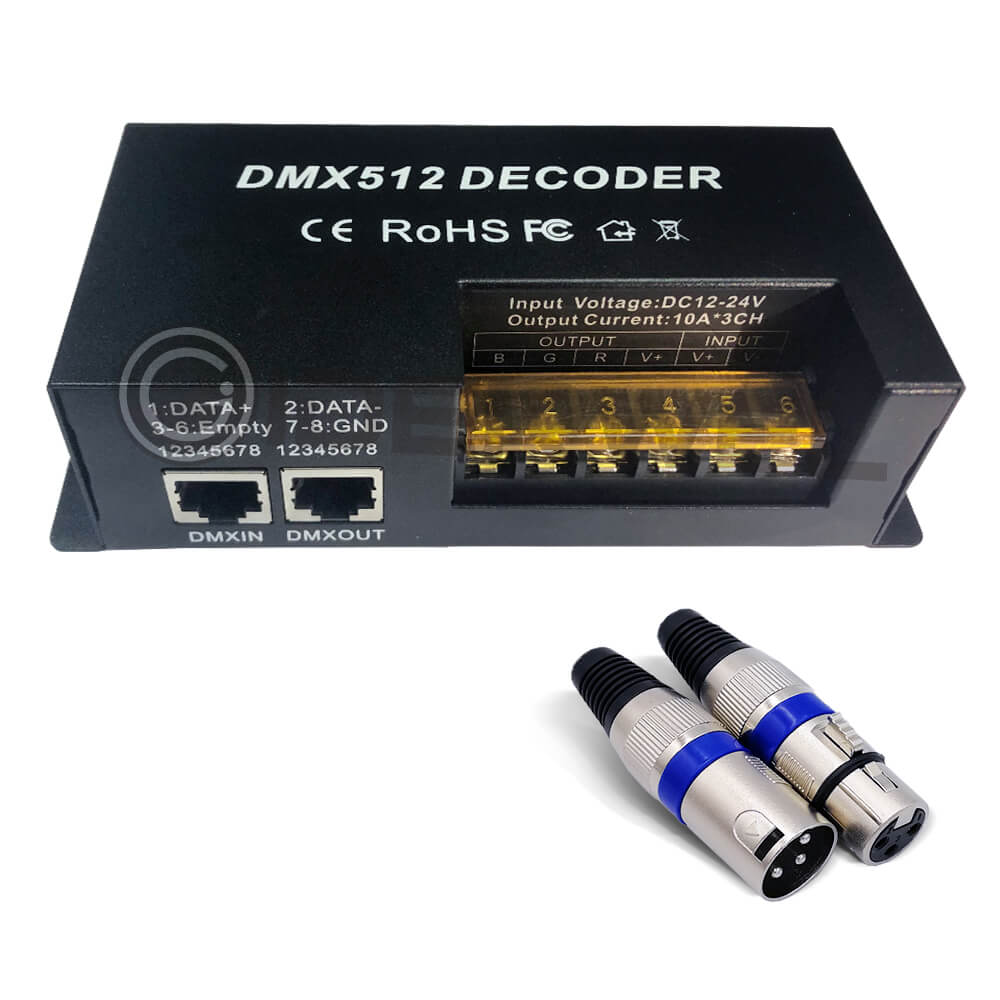

1x RGB 3CH DMX 512 constant decoder
1 x User Manual
Basic functions:
There are 3 output channels, can connect with single or RGB lamps;
0-100% dimming output, each channel 256 gray levels

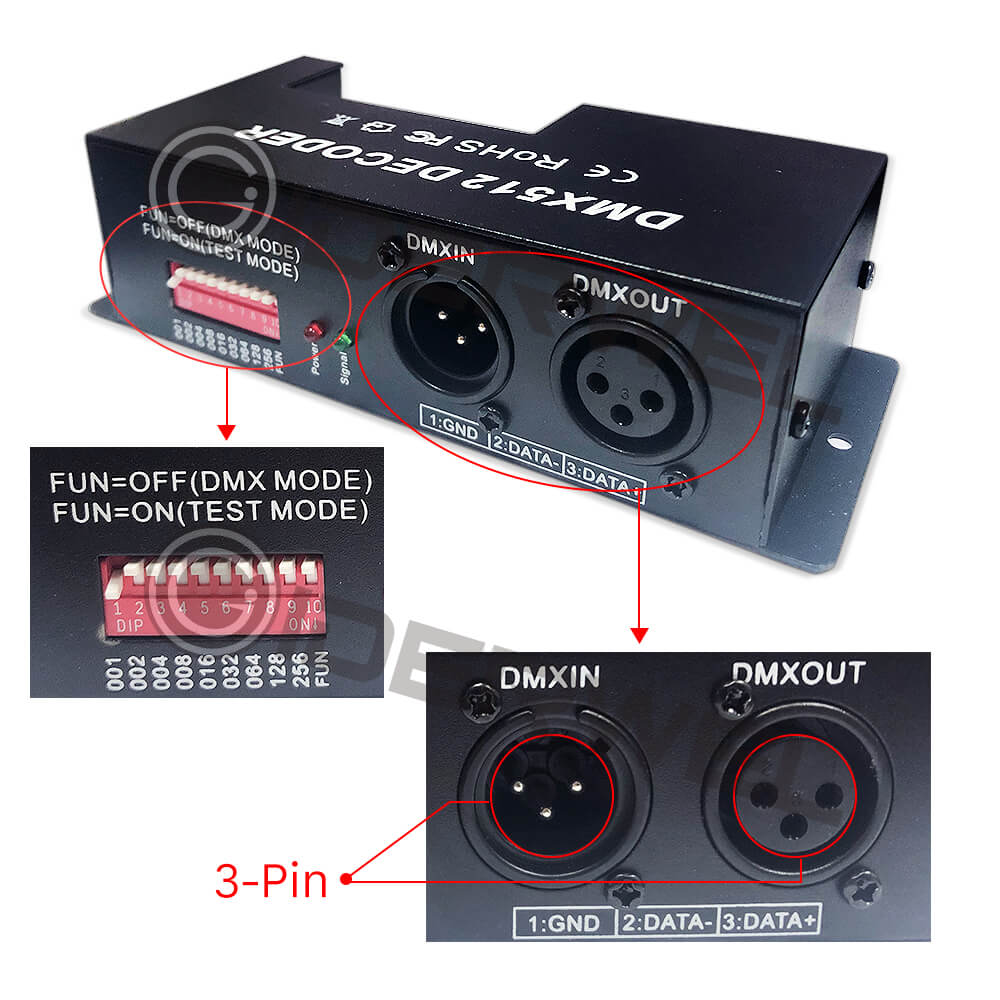

International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC12V ~ DC24V;
Each occupied by 3 DMX address.
